Kawasaki Teryx 4 Camo 800 KRT800 4x4 FI 2016-2020 Service Manual

UTV Guide's history of the line notes that the meaningful 2016 update applied across the whole Teryx4 range, Camo included: a more aggressive front-end, revised dashboard, tilt steering with a thicker wheel, tool-free seat adjustment, and standard Electric Power Steering — with most subsequent changes through 2020 limited to colors, graphics, and equipment packages rather than further mechanical work. That means the Camo trim from this era carries a genuinely settled, well-proven platform rather than a moving target year to year.

Power comes from the liquid-cooled 783cc SOHC 90-degree V-twin introduced in the 2014 redesign — a stroked version of the Brute Force 750's engine, fed through dual 36mm Mikuni EFI throttle bodies and four-valve Hemi heads, delivering a claimed 47 lb-ft of torque at 5,500 rpm. UTV Action Magazine's testing found the T4 platform genuinely nimble for hunting and technical trail use: an upswept double-X frame with a 79-degree approach angle for added ground clearance, paired with one of the shortest wheelbases of any four-seat UTV on the market, making it well suited to tight, technical terrain rather than wide-open flat running.

Camo-specific equipment for this generation includes four LED headlights with separate high/low controls — a genuine upgrade over the base EPS model's halogen units — a hard sun top, and standard EPS across the board. Fox Podium 2.0 piggyback shocks deliver 8 inches of front and 8.3 inches of rear travel, adjustable for preload and 24-position compression damping, tuned via Kawasaki's revised 2016 valving. A rear transfer case with new bevel gears and a multi-disc wet-pack rear brake with a center-console manual parking brake round out the drivetrain, alongside a small rear bed offering 249 lbs of cargo capacity behind the stadium-style four seats. UTV Action's reviewers consistently rated the Teryx4 as a strong value against pricier four-seat rivals from Polaris, Honda, and Yamaha, citing its build quality and factory-backed three-year warranty. Towing capacity holds at 1,300 lbs, with a 7.9-gallon fuel tank.

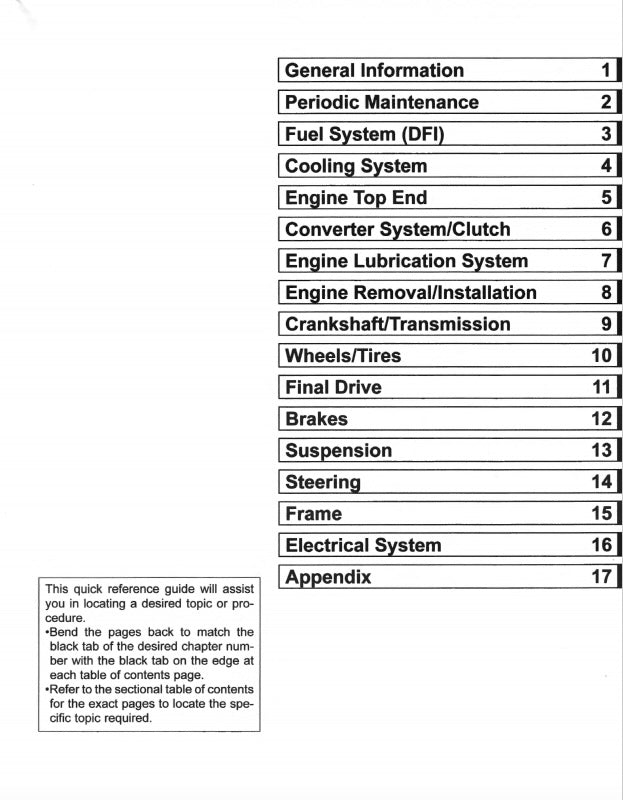

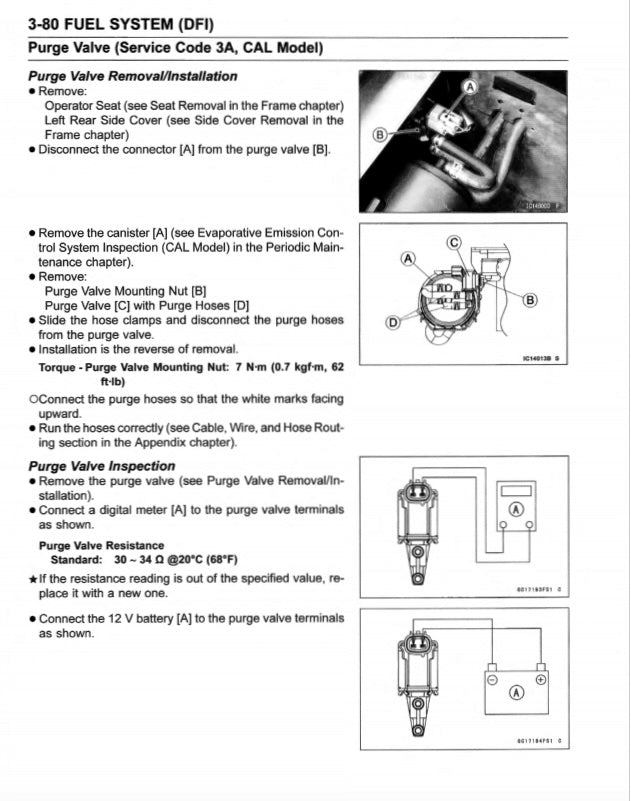

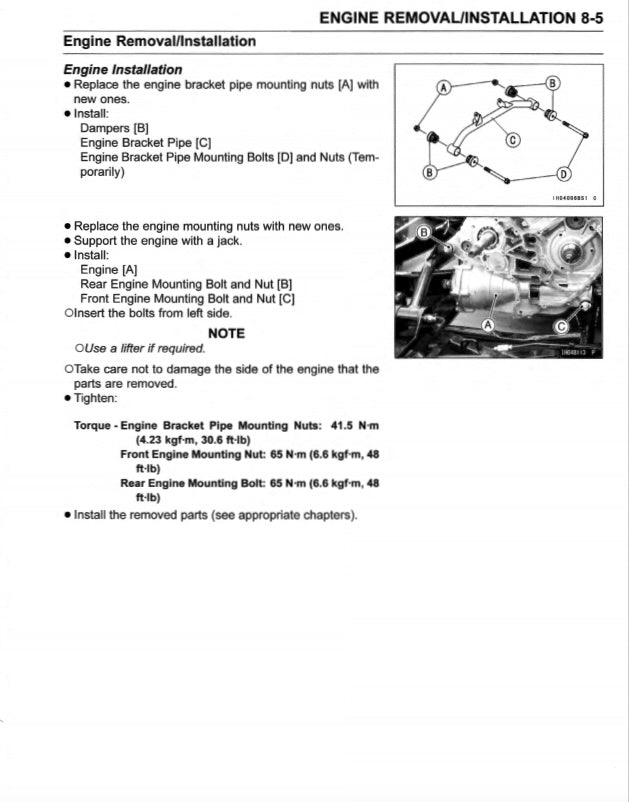

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2016-2020 Teryx4 Camo 800 running the way it was built to.
