Kawasaki Mule 3000 3010 3020 2001-2008 Service Manual

Kawasaki's own historical materials call out exactly what made this generation a genuine departure from earlier Mules: radical new pick-up truck styling, improved ergonomics, and other automotive design cues gave the 3000-series a distinctly modern, stylish look that made it an instant hit — a real shift from the more utilitarian, boxy earlier 2500-series machines. The lineup split cleanly by drivetrain and purpose: the 2WD 3000, 4WD 3010, and turf-focused 3020, all sharing a liquid-cooled 617cc V-twin and Kawasaki's all-new Continuously Variable Transmission.

Power comes from a four-stroke, liquid-cooled V-twin with an overhead-valve configuration, a 76mm x 68mm bore and stroke for 617cc displacement, and a 10.3:1 compression ratio, delivering a claimed 37.4 lb-ft of net torque at 2,500 rpm through a Mikuni BW26-18 carburetor. Off-Roading Pro's own review highlights the distinctive high-mount air intake lining the roll bar — genuinely reducing dust and debris ingestion versus a low-mounted intake — routed down to a snorkel-type air filter tucked beneath the bench seat. A steel-tube ladder-type frame carries the driveline, with a caster angle of 7.5 degrees and 1.4 inches of trail, riding on tubeless tires front and rear with four-wheel hydraulic braking.

The genuinely significant addition across this run came via the diesel and convertible variants: the 3010 Diesel, introduced in 2003, carried over the proven 953cc three-cylinder diesel engine from the Mule 2510 Diesel dressed in the new pickup-truck styling, backed by a stronger CVT belt, improved exhaust, and a new cylinder block versus its predecessor. 2007 brought the world's first convertible MULE — the 3010 Trans4x4 Diesel — letting operators reconfigure the bed-and-cab layout on the fly, backed by coil-reinforced shocks, DeDion axles, and leaf-spring rear suspension for genuinely high load capacity. 2008 closed out the generation with Electronic Power Steering becoming standard across the non-Trans 3010 Diesel models, shortly before the fuel-injected Mule 4010 took over for 2009. Dry weight on a 2001 3010 came in around 1,200 lbs, with a 5.3-gallon fuel tank and a cargo bed measuring 46.26 x 51.57 x 11.34 inches.

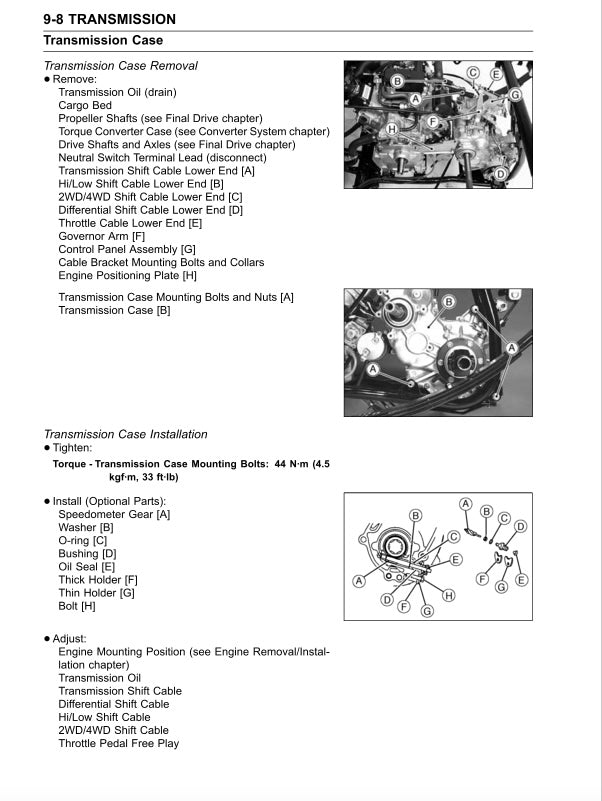

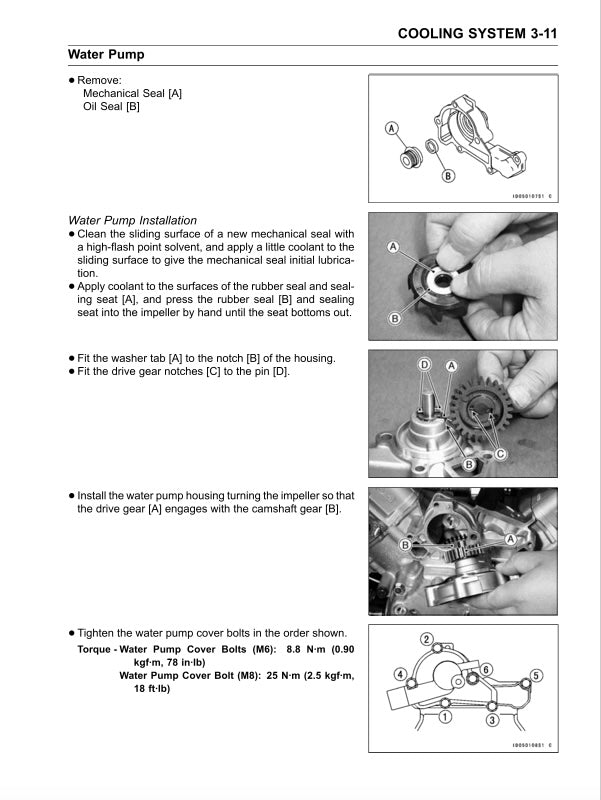

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2001-2008 Mule 3000/3010/3020 (gas and diesel) running the way it was built to.
