Kawasaki KX65 2000-2022 Service Manual

Autoevolution's own retrospective confirms the deliberate, unbroken continuity that's defined this entire platform's remarkably long production life: "the 2026 Kawasaki KX65 is still the same machine that puts young riders on the same path as Kawasaki's champions. Besides that, Kawasaki motorcycles are known for their durability and reliability, creating the perfect platform for the youngest riders." CycleChaos' own detailed model breakdown confirms this same fundamental machine has stayed genuinely consistent throughout its two-decade run, describing the KX65 across multiple model years as "a mini-enduro bike created for children" delivering "great handling and confidence, while the diminutive engine packs enough punch for racing."

Power comes from a 64cc liquid-cooled single-cylinder two-stroke engine, fed by a 24mm Mikuni carburetor, delivering a claimed 17.03 hp at 12,500 rpm and roughly 6.64 lb-ft (9.0 Nm) of torque at 11,000 rpm through a genuine 6-speed manual transmission with manual clutch and return shift, driven to the rear wheel by chain final drive. CycleChaos' own detailed account confirms the deliberate engineering philosophy behind this exact power delivery: "provides a non-nonsense power just under 17 PS. This makes it the perfect beginner machine as it offers the race-worthy punch but in a rather tamed, unintimidating manner, just right for educational purposes."

Autoevolution's own confirmed 2026-model specification (representing this same fundamental architecture carried forward decades after its original launch) lists a 33mm leading-axle telescopic fork with four-position rebound damping up front, paired with a Uni-Trak single shock offering fully adjustable spring preload and stepless three-turn rebound damping at the rear — genuine, real suspension adjustability for a bike this small, letting the machine be tuned across a range of rider weights and skill levels rather than offering a single fixed setup. CycleChaos' own account confirms this suspension sophistication was present from early in the platform's life: "4-way adjustable suspensions makes sure the 2004 Kawasaki KX65 is easy to set up for a wide variety of riders and surfaces, while at the same providing the best possible traction with almost any riding style."

CycleChaos' own detailed 2006-model coverage confirms a genuine mid-run braking upgrade worth knowing when servicing an earlier example against a later one: "thanks to the high-specs disc brakes, the 2006 KX65 can be ridden hard: there is more than enough stopping power for aggressive riding, while the revised ergonomics offer both freedom of movement and a less tiring experience" — suggesting the very earliest 2000-2005 models may have run different, less capable braking hardware than the disc-brake configuration that carried through most of this platform's later life. Ultimate Specs' own confirmed 2022 specification lists a high-tensile steel semi-double cradle frame and a genuinely accessible 759mm (29.9-inch) seat height. CycleChaos' own confirmed dry weight figure of just 57kg (126 lbs) on the 2004 model confirms exactly why this platform has remained such an enduring choice for youth motocross training — genuinely light enough, per that same source, that "even a kid could lift the 2004 Kawasaki KX65 from the dirt" after a fall.

Because this exact range spans over two decades of genuinely minimal change — BBR Motorsports' own product notes confirm the KX65 "has been in production since 2000" with core specifications remaining consistent enough that certain KLX110 parts from 2002-2009 are directly cross-compatible — correct year identification still matters for confirming exact braking hardware and any incremental running changes, even though the fundamental 64cc engine, 6-speed transmission, and Uni-Trak suspension architecture has stayed remarkably stable across the entire span this manual covers.

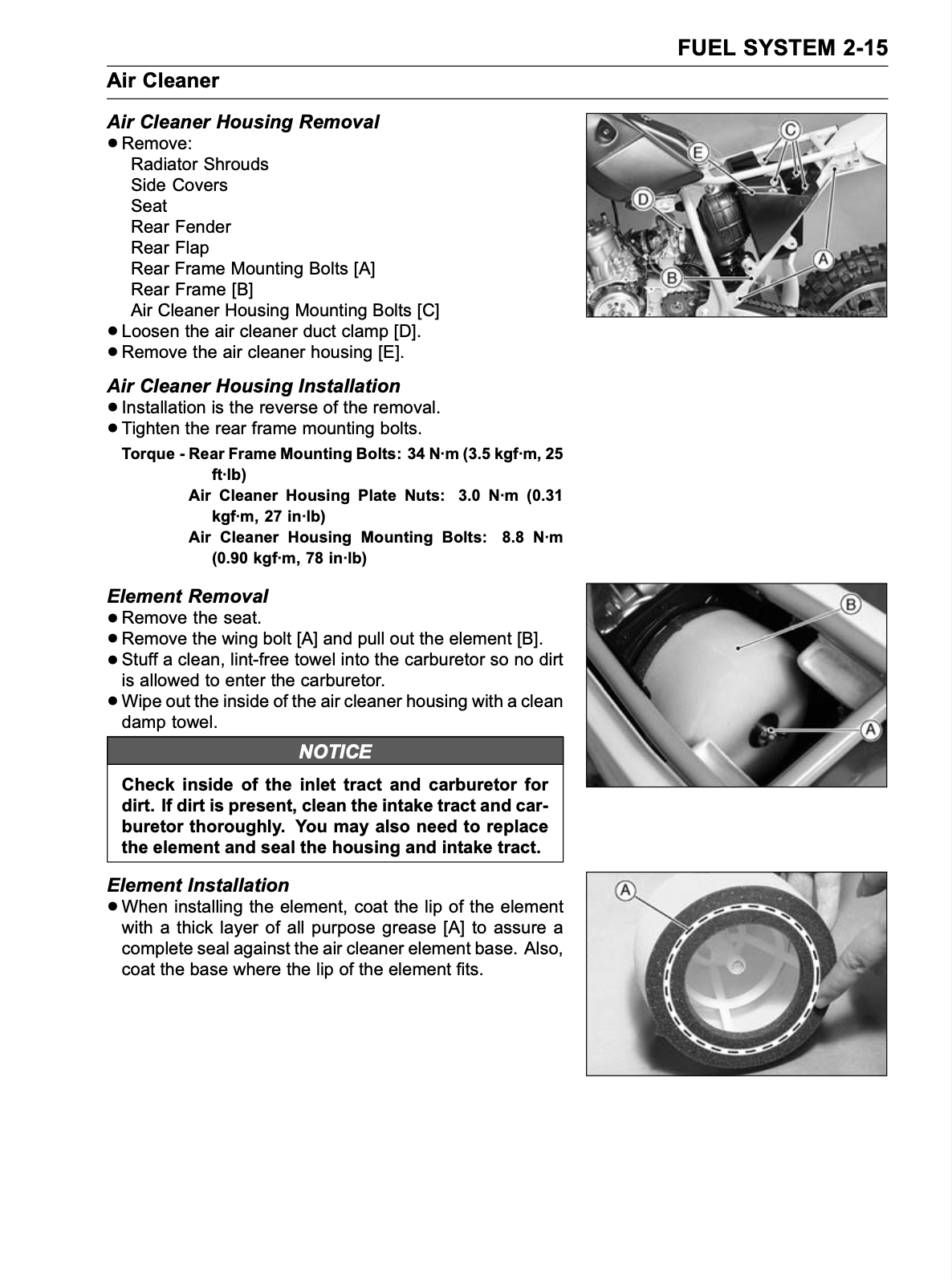

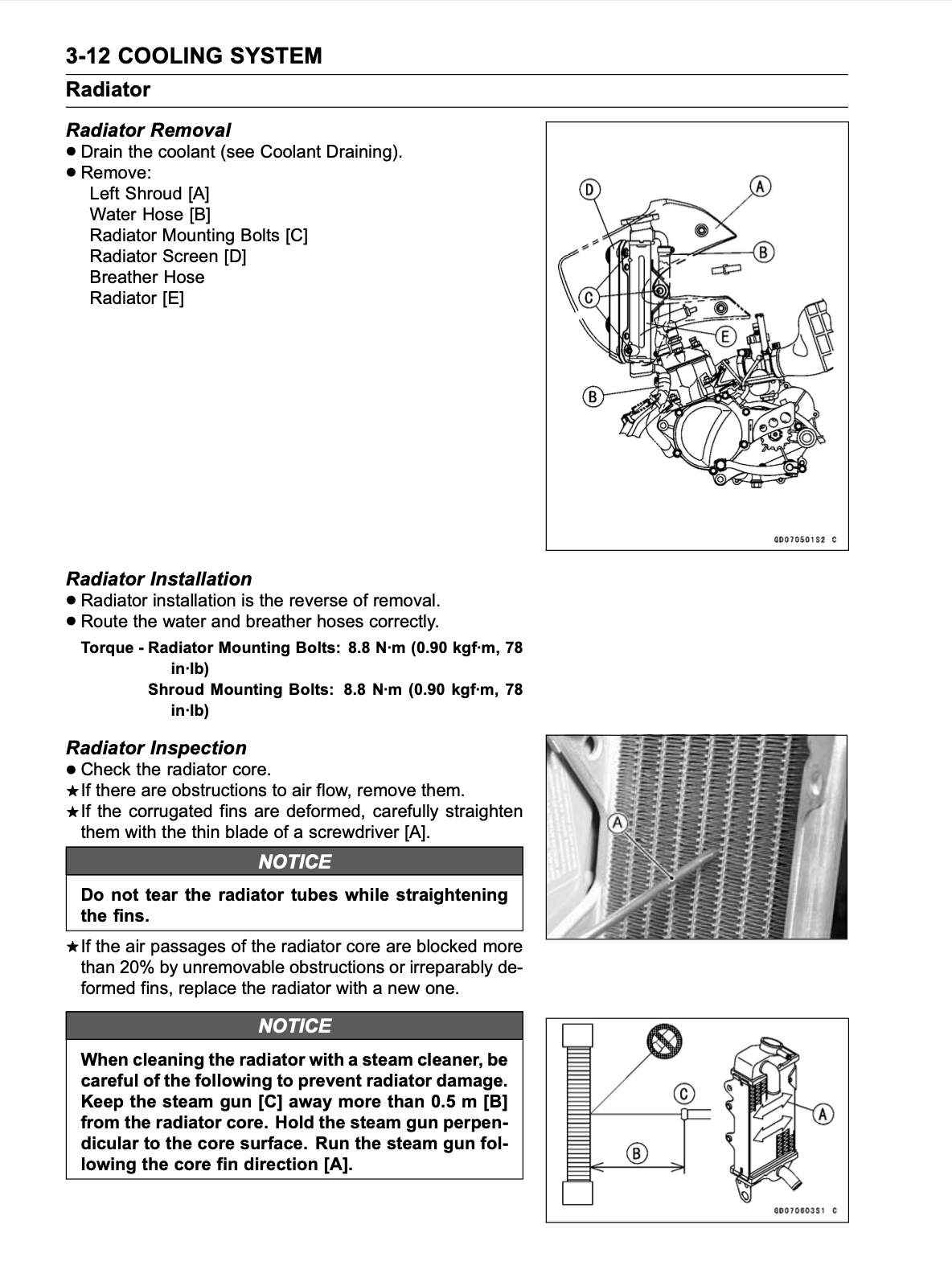

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2000-2022 KX65's two-stroke engine and driveline running the way it was built to.
