Kawasaki Bayou 220 1988-2002 Service Manual

Cycle World's own contemporary launch review captures exactly what this bike was built for: "it's a hard-working, blue-collar ATV, a no-nonsense four-wheeler that will do virtually anything, go nearly anywhere without a lot of fuss — and without costing six months' pay. For $2299 you get a full-featured, midsized ATV with electric start, front and rear racks, automatic clutch, shaft drive, reverse gear, independent front suspension and even a fuel gauge." Off-Roading Pro's own retrospective confirms this platform genuinely predates Kawasaki's whole later ATV lineup: "the Kawasaki Bayou 220 ruled the four-wheeler landscape long before Team Green had its greats — the trail-conquering Prairie, the V-Twin-powered Brutes, and the sport-oriented KFX."

Power comes from a 215cc air-cooled single-cylinder four-stroke engine, a 67mm x 61mm bore and stroke, a 9.3:1 compression ratio, fed by a Mikuni VM24SS carburetor through DC-CDI ignition, delivering drive through a genuine shaft final drive — a real durability advantage over chain drive — via an automatic wet multidisc clutch and 5-speed transmission with reverse and recoil-start backup. Off-Roading Pro's own account confirms the genuine simplicity and durability behind this bike's long production run: "a certified bulletproof classic, this small, light machine pioneered the four-wheeled ATV segment for Kawasaki like easy."

It Still Runs' own confirmed equipment list is candid about the deliberately basic instrumentation: a fuel gauge is genuinely the only real gauge — no speedometer, odometer, hourmeter, tripmeter, or high-beam indicator — though a reverse/neutral indicator light and dual high/low headlamps are standard. The chassis uses front A-arm twin-shock suspension paired with a rear Quad-Link twin-shock setup — not a true independent system, but genuinely comfortable over rough terrain without the cost of full independent suspension.

Off-Roading Pro's own genuine safety note confirms a real recall worth checking before buying used: "the rear wheel hubs of the KLF220 are attached to the axles by a castellated nut secured with a specified torque... incorrectly tightened before inserting the cotter pin" on affected units, causing hub separation — worth verifying against the specific example before assuming it's unaffected. The Kawasaki Wiki's own confirmed model-code timeline runs from the original KLF220-A1 through the KLF220-A15 in 2002, closing out this platform's genuine 15-year production run.

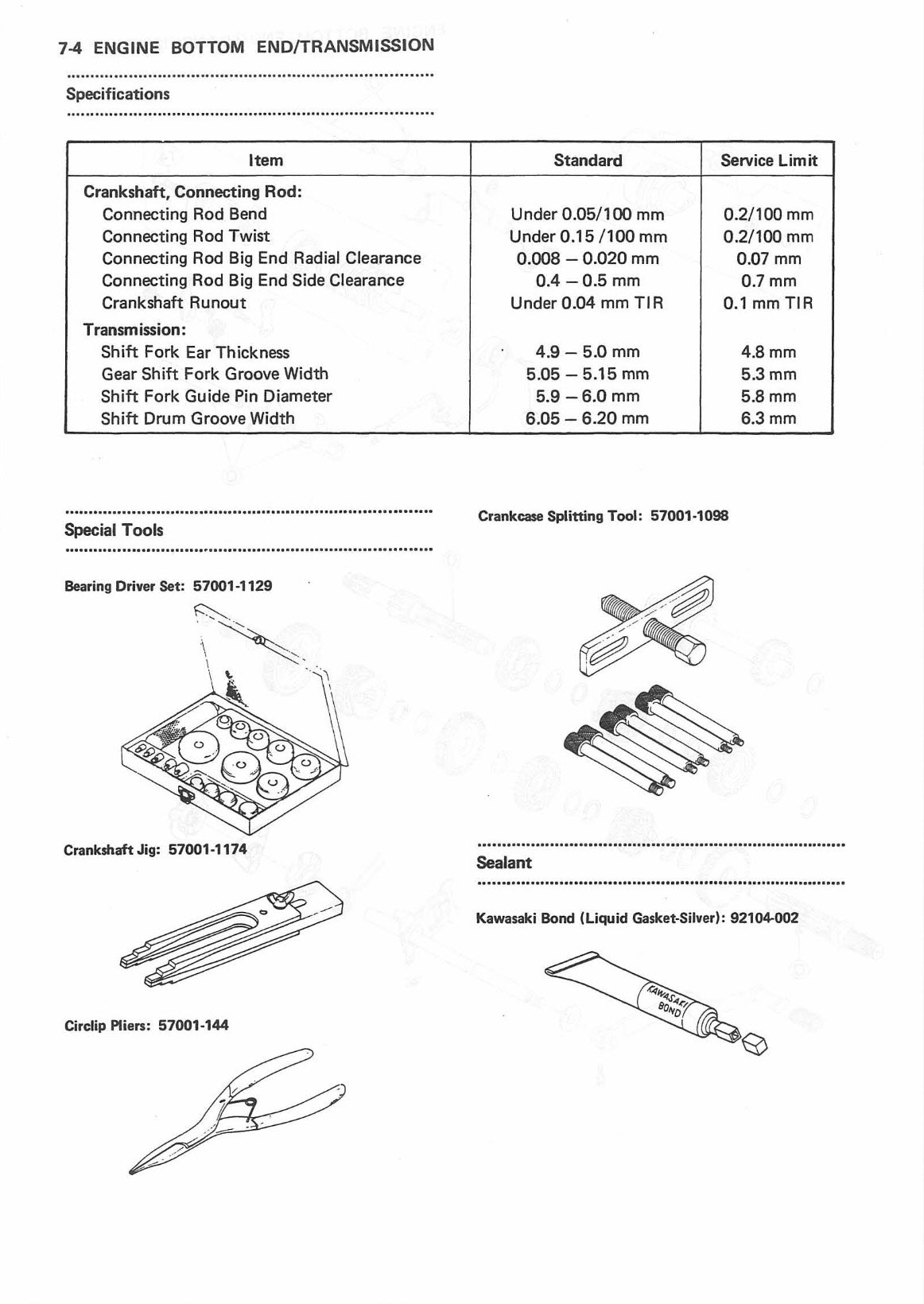

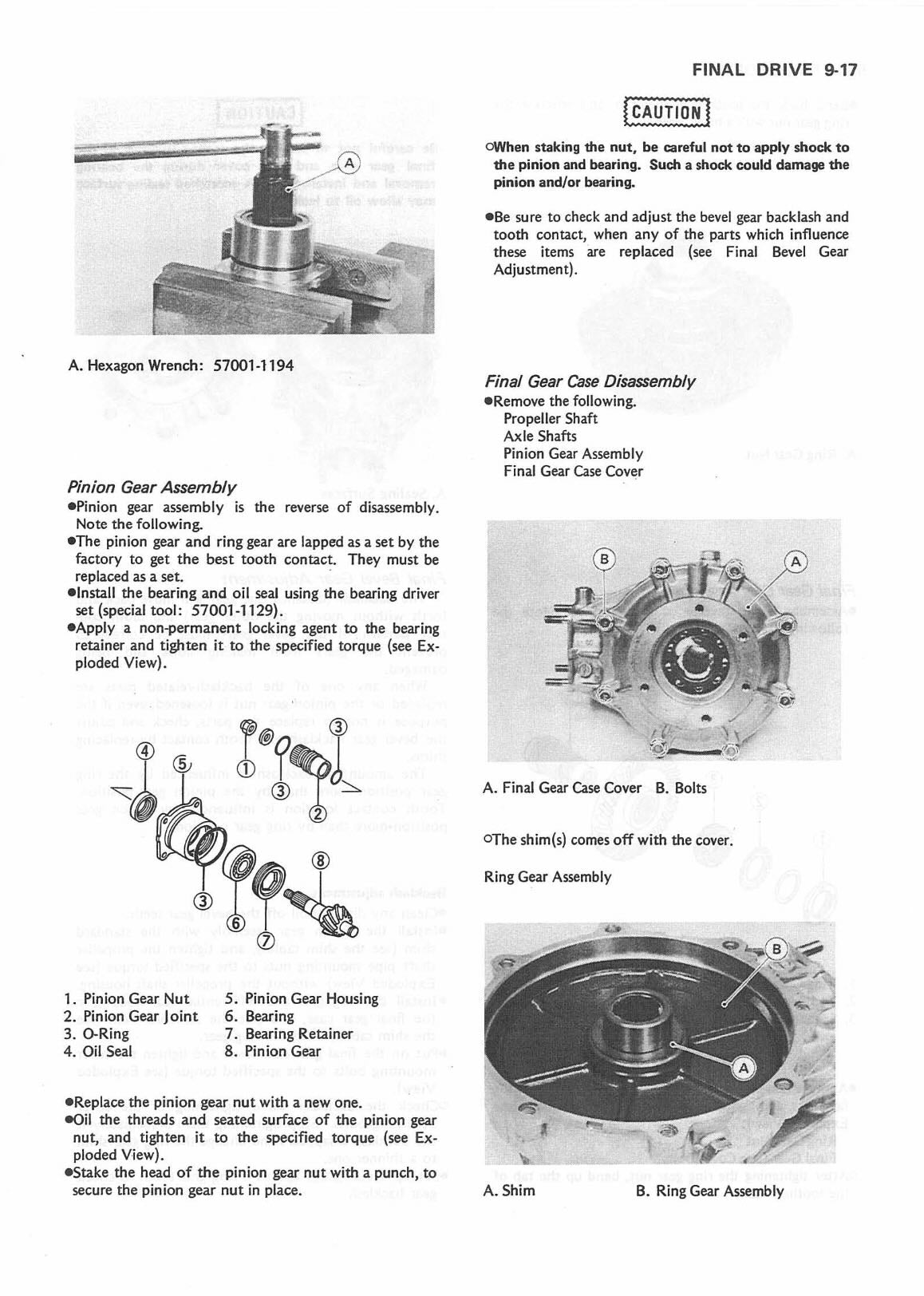

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1988-2002 Bayou 220's engine and driveline running the way it was built to.
