• John Deere X700 X720 X724 X728 Service, Workshop & Repair Manual
  • Text 'INSTANT Download' with a green button on a white background

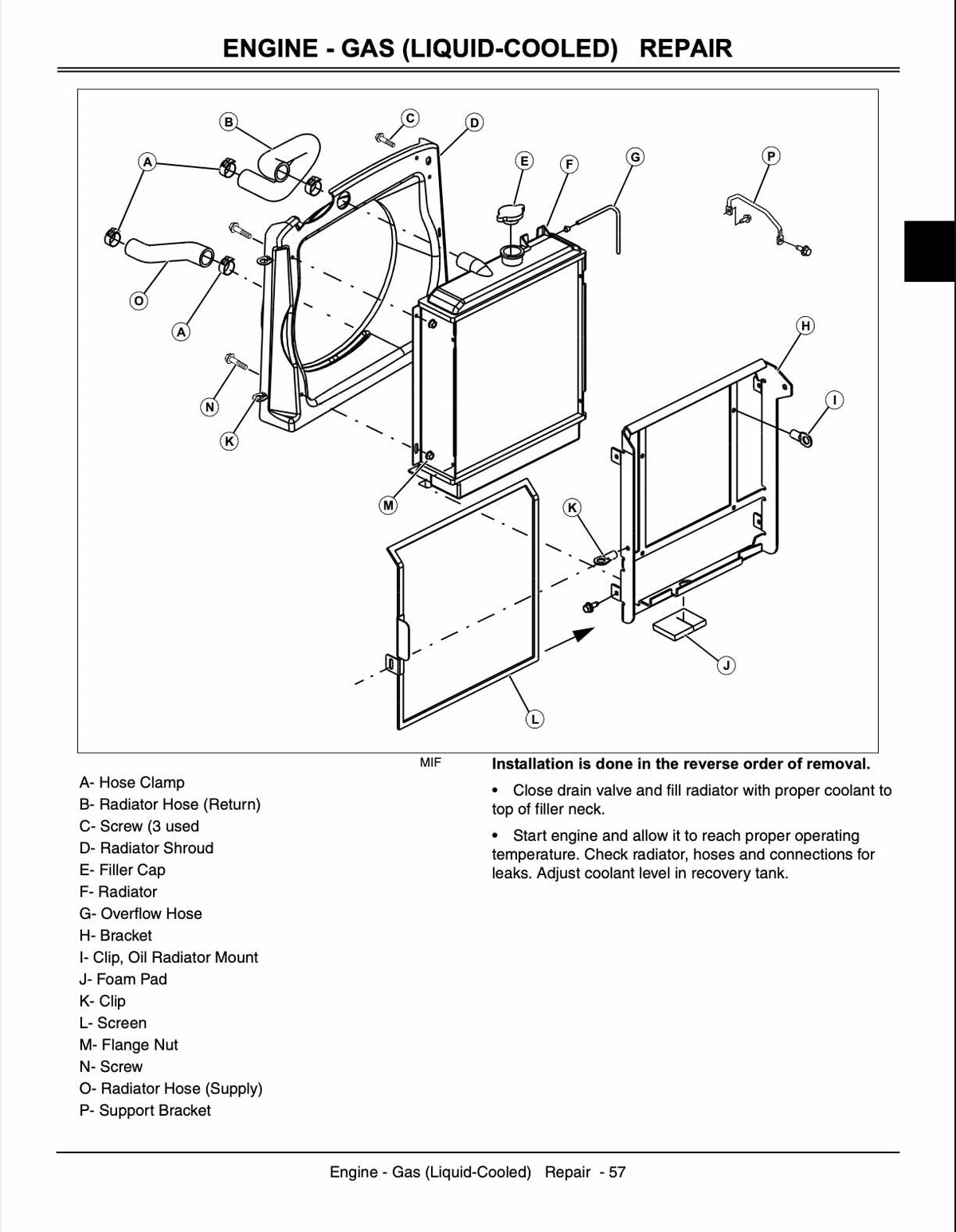

  • John Deere X700 X720 X724 X728 service manual page 57 engine gas liquid-cooled repair with radiator assembly exploded diagram showing hose clamps, radiator hose return and supply, filler cap, overflow hose, shroud, bracket, foam pad, screen, flange nut, and installation procedures

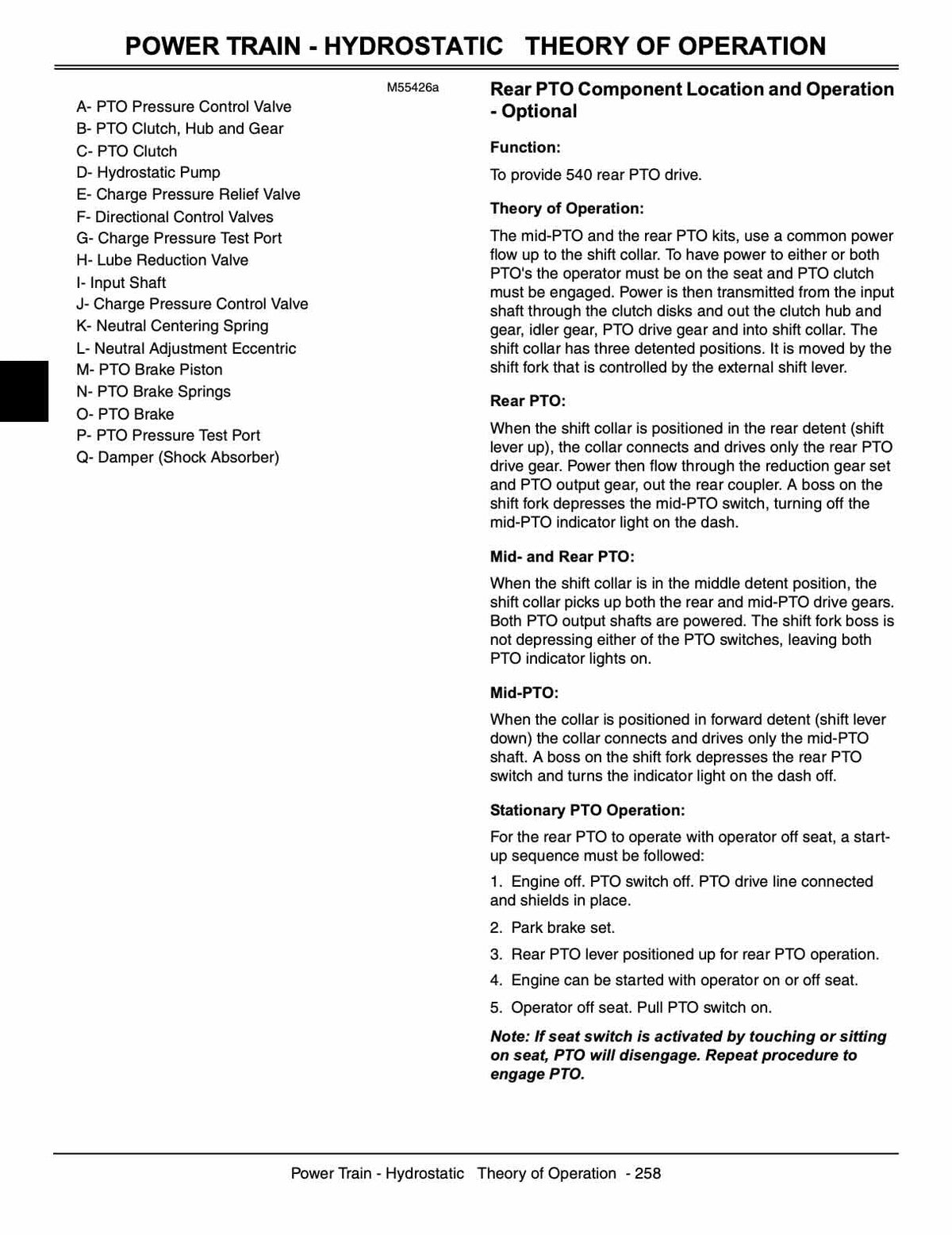

  • John Deere X700 X720 X724 X728 service manual page 258 power train hydrostatic theory of operation explaining PTO pressure control valve, clutch hub and gear, pump, directional control valves, rear PTO component location and operation with shift collar positioning and stationary PTO operation start-up sequence
1 4

Dr. E Manuals

John Deere X700 X720 X724 X728 Service Manual

John Deere X700 X720 X724 X728 Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

John Deere X700 X720 X724 X728 Tractor Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains OOO pages in English Language, it is the only manual you will require to maintain, repair and service your John Deere X700 X720 X724 X728 Tractor.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Suits Models:

  • X700
  • X720
  • X724
  • X728

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

John Deere X700 / X720 / X724 / X728 Select Series: The Premium Garden Tractors with Four Drive-and-Steering Options

Deere's X700 Select Series, built in Horicon, Wisconsin, was a family of premium garden tractors that came in four versions. The X720 is the two-wheel-drive model. The X724 is two-wheel drive with all-wheel steer. The X728 is four-wheel drive, and the X729 (2008-2012) adds all-wheel steer to the four-wheel-drive version. Special Edition versions of the X720 and X728 added an upgraded seat with armrests plus tilt and lumbar adjustment, better tires and a brush guard.

Power comes from a 27 hp Kawasaki 745cc two-cylinder gasoline engine. Drive is hydrostatic with power steering and wet disc brakes. On the X728 the four-wheel-drive system changed partway through, from a mechanical front-wheel drive (MFWD) on the 2006-2008 tractors to a hydraulic front-wheel drive (HFWD) from 2009. The fuel tank is 6.5 gallons on the 2006-2010 tractors and 5.2 gallons from 2011.

The operator's station is open, with an 18-inch seat with 7 inches of adjustment, tilt steering, a cupholder, a toolbox and a 12-volt outlet. A soft-side or hard cab was optional. The hydraulics run at 924 psi with two valves, and flow is 4.5 gpm on the two-wheel-drive models and 6.0 gpm on the X728. Power takeoff is a 2,000 rpm independent mid PTO as standard, with a 540 rpm rear PTO and a 2,000 rpm front PTO optional. A Type 0 rear hitch is standard, with a Type 1-Limited hitch as an option.

The serial number tag is on the center-right of the main frame, just behind the hydraulic couplers. In 2011 the tractors listed from $8,749 for the X720 to $10,369 for the X728. Because the four models share an engine but differ in drive, steering and hydraulics, use the serial number to confirm the exact model before ordering parts.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a John Deere X700/X720/X724/X728 tractor running the way it was built to.

  • Manual Sourcing

    We strive to use freely available sources. Some manuals may be scans or photocopies of older originals. Sample previews are shown on the product page, please review them before purchase to ensure quality meets your needs.

  • Copyright

    This material is shared in accordance with the GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or designated as Freeware, all of which allow free and open distribution. Additional information is available on our Copyright & Content Disclaimer Page

  • Refunds

    Due to the nature of digital products, all sales are final. We recommend reviewing the sample preview on the product page to ensure the manual meets your expectations before purchase. Refunds will not be issued for issues related to content quality already disclosed or shown in the preview.
