John Deere X300 X304 X320 X324 X340 X360 Service / Technical Manual

John Deere's own product literature confirms exactly what unites this six-model family under a single technical manual: "John Deere iTorque Power Systems with V-twin air-cooled engines with 17-, 22-, or 25-horsepower power X300 Series Tractors" — genuinely the same fundamental Kawasaki-built engine platform scaled across three displacement tiers, sharing enough common architecture, hydrostatic drivetrain, and chassis design that Deere's factory documentation covers all six model numbers together rather than issuing six separate manuals.

Power scales meaningfully across the range: John Deere's own spec sheet confirms the X300 and X304 run a 472cc (28.8 cu. in.) Kawasaki V-twin delivering 17 hp, while the X320, X324, and X340 step up to a 675cc (41.2 cu. in.) V-twin delivering 22-25 hp depending on model — all sharing air cooling, two cylinders, and John Deere's iTorque Power System, described in the company's own materials as "a combination of engine features and exclusive hood design that provide more lugging ability, even cooling, and durability." ManualMachine's own spec breakdown confirms genuinely premium internal engine components across every displacement: cast-iron cylinder liners, overhead valves, full-pressure lubrication with a replaceable oil filter, and a dual-stage air filter — hardware choices built for long-term reliability rather than budget-tier construction.

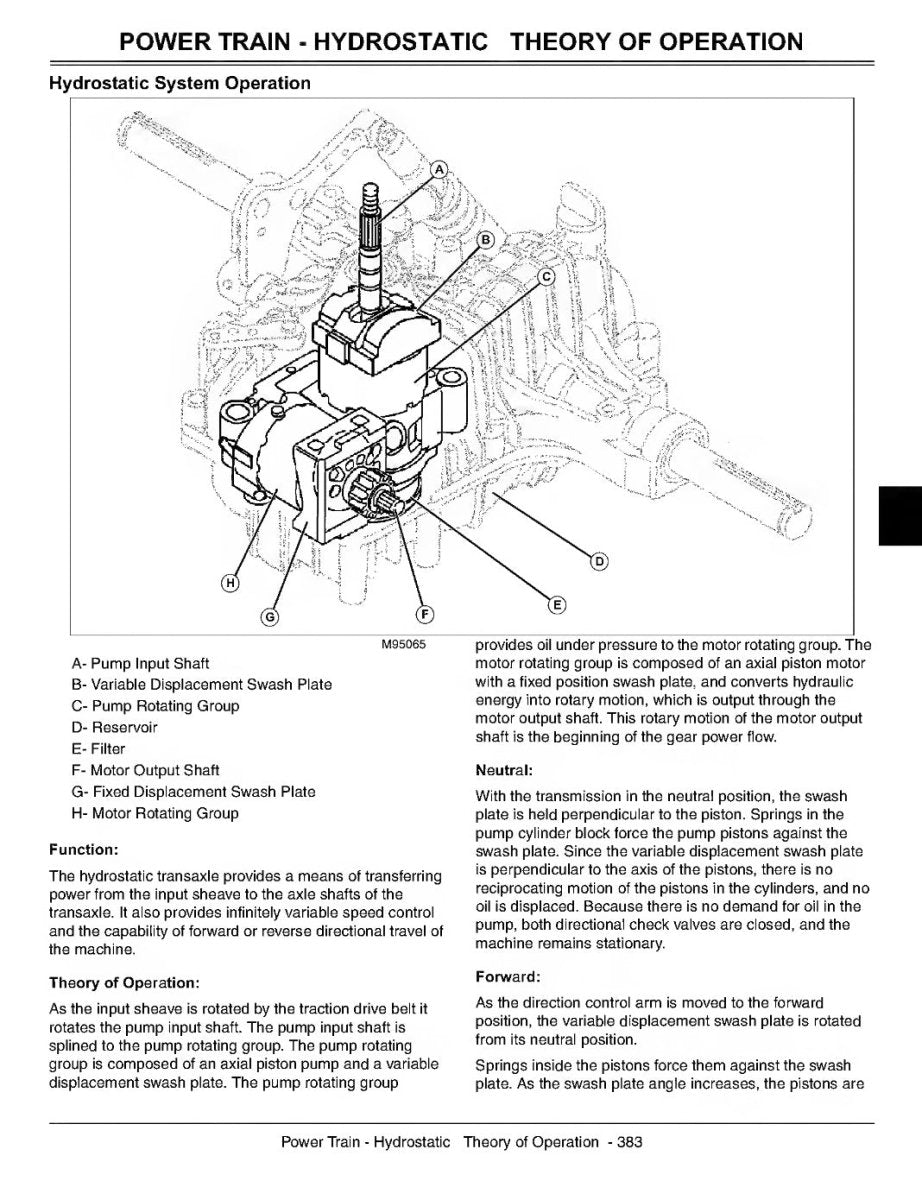

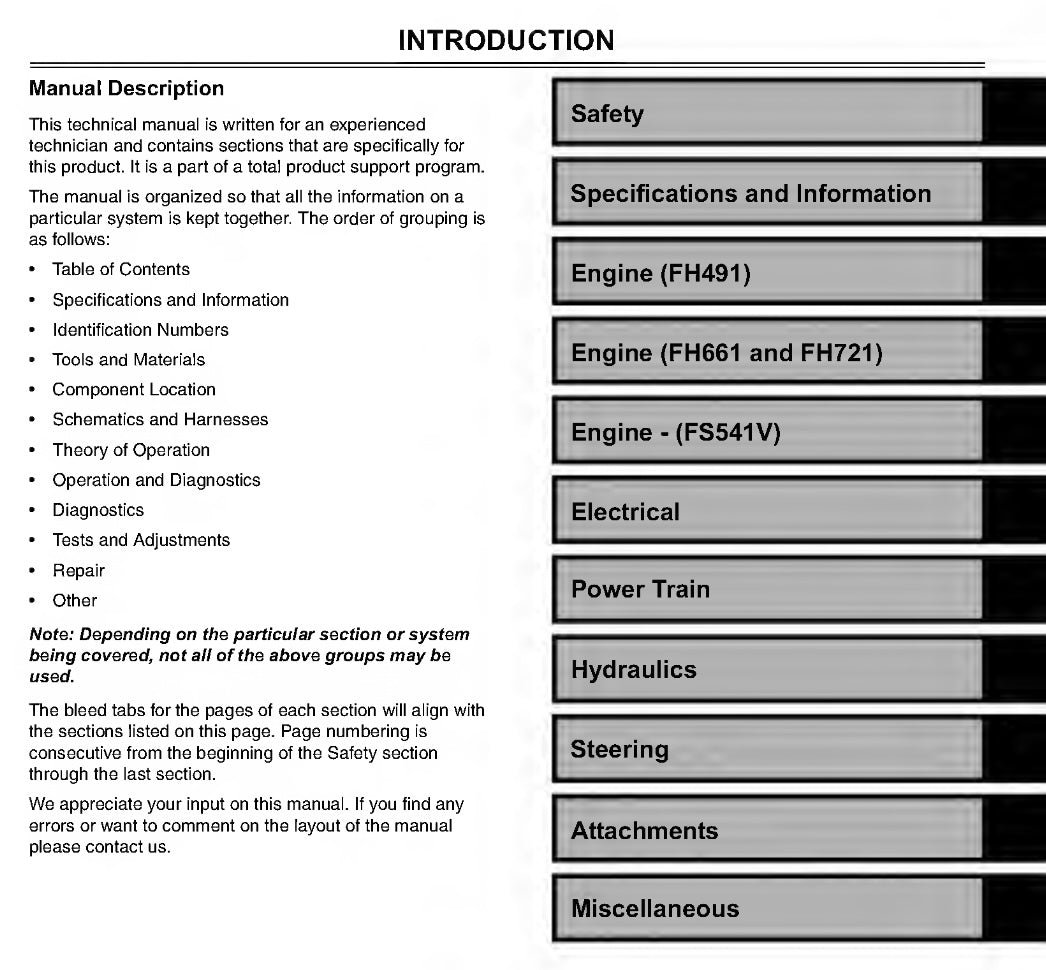

The genuine mechanical distinction separating specific models within this family comes down to steering and transmission: John Deere's own product copy confirms "4-wheel steering on the X304 and X324 allow these models to turn even tighter to easily trim around trees and bushes" — a real functional upgrade unique to those two specific model numbers within the range, while every model in the family uses John Deere's exclusive Twin Touch automatic drive system, letting the operator control speed and direction through dual foot pedals while keeping both hands on the wheel. The official John Deere factory technical manual (TM-2308) for this family runs through genuinely comprehensive coverage: separate engine sections for the FH491, FH661/FH721, and FS541V engine variants used across different displacement tiers, electrical systems, power train and hydrostatic transaxle service, hydraulics, steering (including the 4WS-specific components unique to the X304 and X324), attachments, and mower deck service — one seller's own feature list specifically flags "unique repair and adjustment procedures for the complex four-wheel steer system components" as a genuinely distinct section within the shared manual. A fully regulated 15-amp electrical system powers standard headlights and the electric PTO clutch across the entire range, and buyers could pair any model with one of five Edge Xtra mower decks spanning 38 to 54 inches, each supporting side-discharge, mulching, or rear-bagging configurations.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a John Deere X300/X304/X320/X324/X340/X360 lawn and garden tractor running the way it was built to.
