John Deere 200 210 212 214 Service Technical Manual

Green Tractor Talk's own historical breakdown places this range's genuine significance directly: "with the 1975 model year, the new 200 series tractors were introduced... it also meant the demise of the 110 and 112 workhorses," though Deere deliberately carried forward key 110/112 design elements — including the four-speed transmission — rather than starting from scratch. This is exactly why Deere's own factory service manual (SM-2105) covers the 200, 210, 212, and 214 together: they share enough common frame, electrical, and mechanical architecture that a single reference genuinely serves all four.

Power comes from air-cooled single-cylinder Kohler engines scaled by model: the 200 ran an 8hp Kohler (1975 only, per Green Tractor Talk's own serial-number identification chart), the 210 stepped up to 10hp, the 212 to a 29.1 cubic-inch, 12hp Kohler K301AQS rated at 3,500 rpm, and the 214 to 14hp — genuinely the same fundamental Kohler architecture scaled across displacement classes rather than four unrelated engine designs. Garden Guides' own breakdown of the 212 specifically confirms a 3.5-gallon fuel capacity and a two-wheel-drive chassis running a 46-inch wheelbase at 660 lbs.

A JD Fanatics forum discussion among longtime owners lays out exactly what genuinely differs between these closely related tractors and what doesn't: "engine wise the only real differences besides the HP is the carburetor and some had balance gears, some don't," while "the rears are all pretty much the same, other than some changes in the brake area." The electric-lift side panel is genuinely unique to that configuration, with two different wiring schemes depending on the number of solenoids fitted — a real distinction anyone servicing electrical systems on these tractors needs to identify correctly before assuming parts interchange freely. Serial number ranges provide the most reliable way to pin down exact production year and specification: 1975 models ran serial numbers 30001-55000, with subsequent years following sequential blocks through the mid-1980s, and the letter prefix in the model code (D through L, corresponding to 1975 through 1982) further narrowing down the exact build year.

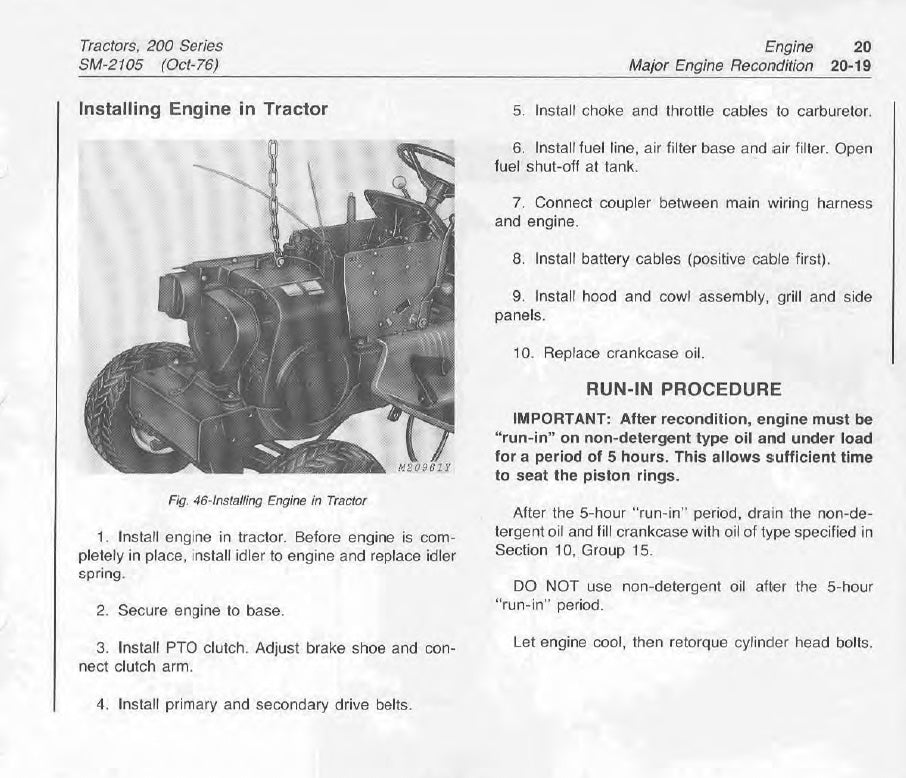

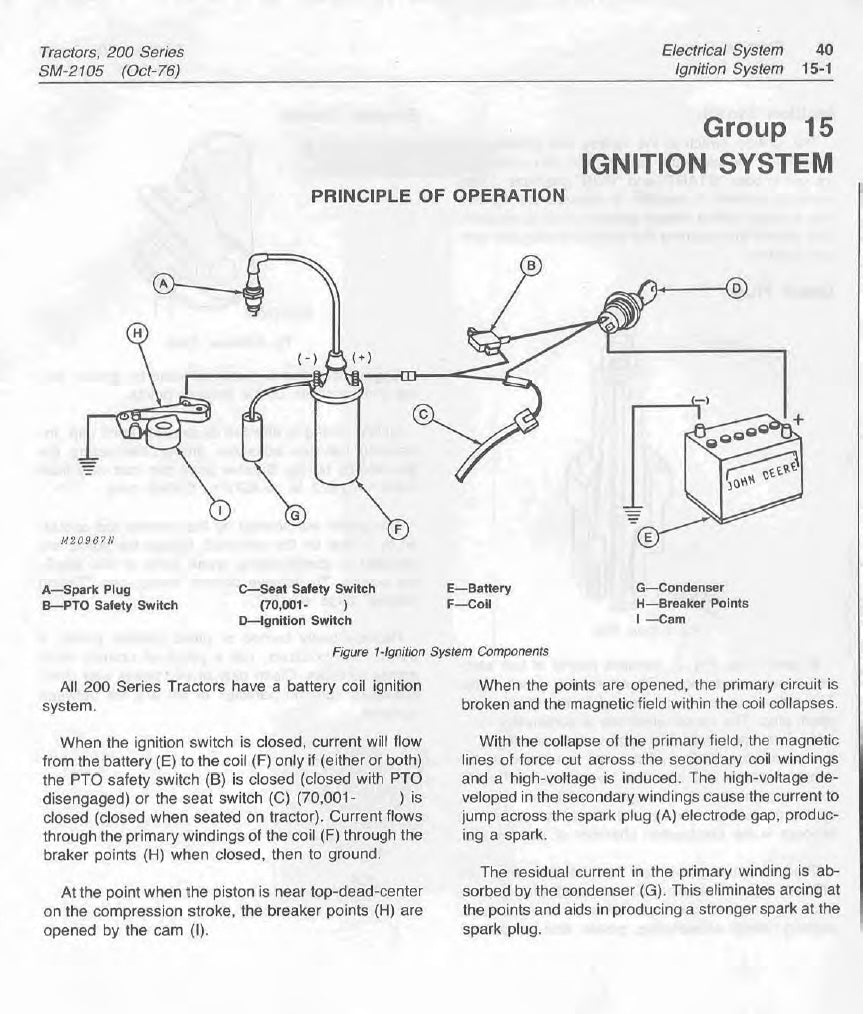

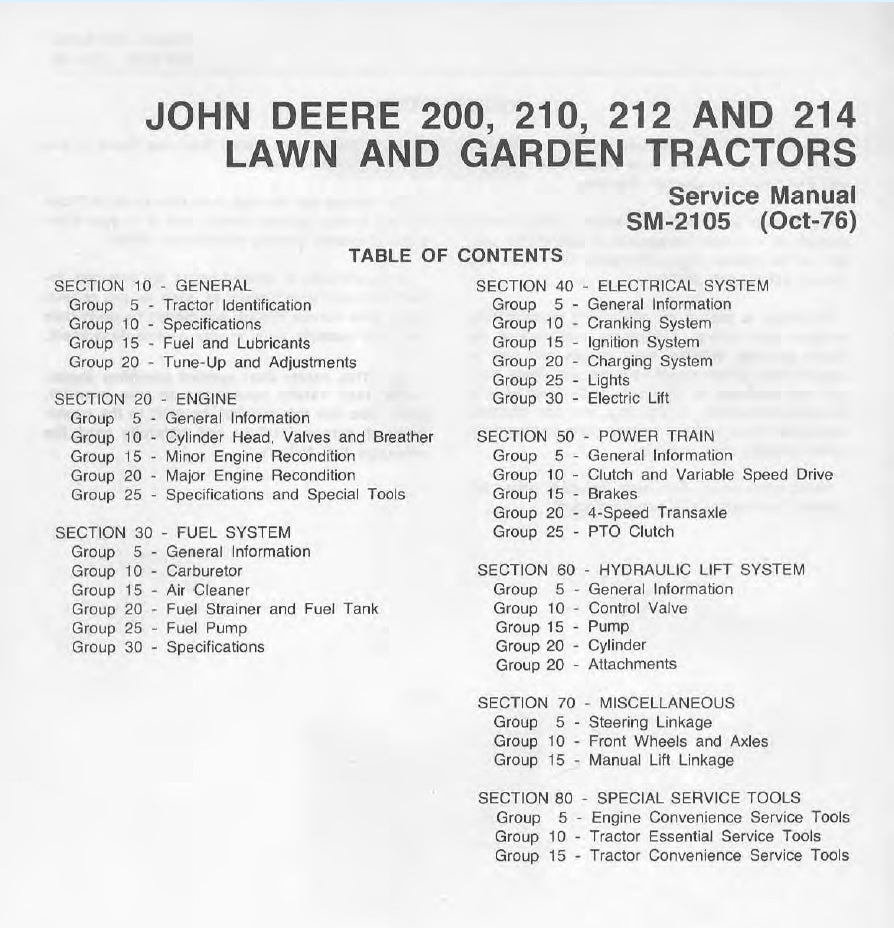

Garden Guides' own coverage confirms the 212 offered two mid-mounted mower deck options (38-inch and 46-inch) with mechanical lift disengagement, plus the same Quick-Tach attachment system carried over directly from the earlier 112 model — genuinely useful backward compatibility that let owners reuse snow-blowers, front blades, tillers, and dump carts across generations. Deere's own factory manual structure covers general tractor identification and specifications, fuel and lubricant requirements, tune-up and adjustment procedures, full engine service from minor reconditioning through major overhaul, and the complete fuel system including carburetor, air cleaner, fuel strainer, tank, and fuel pump service.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a John Deere 200/210/212/214 lawn and garden tractor running the way it was built to.
