Indian Chief Classic 2014-2016 Service Manual

VikingBags' own history frames the Chief Classic's genuine significance directly: in 2014, alongside the Chief Vintage and Chieftain, Indian launched its all-new Thunder Stroke 111 engine platform — the powerplant that every subsequent Indian model would build on going forward. As the base trim in that founding trio, the Chief Classic represents the purest, least-accessorized expression of Indian's modern relaunch, sharing its fundamental engine, frame, driveline, suspension, and fuel system directly with the pricier Chief Vintage.

Power comes from the Thunder Stroke 111, a 1,811cc air-cooled V-twin with a 3.976 in. x 4.449 in. bore and stroke and a 9.5:1 compression ratio, fed by closed-loop electronic fuel injection through a 54mm throttle bore, delivering a claimed 119 lb-ft of torque, run through a 6-speed transmission with wet multi-plate clutch and belt final drive. Indian's own engineering built the Thunder Stroke's entire visual identity around genuine 1940s styling cues — exposed pushrod tubes and a deliberately vintage-looking cooling-fin pattern — even though every internal component is thoroughly modern. Split dual exhaust with a crossover pipe rounds out the powertrain, exhausting through Indian's own gear-ratio spread running from 9.403:1 in first gear down to 2.789:1 in sixth.

Styling stays deliberately clean and unadorned relative to the touring-focused Vintage and Roadmaster siblings sharing the same platform: deeply valanced fenders, a teardrop-shaped headlight and matching fuel tank with an integrated instrument cluster on top, and a broad, comfortable solo or two-up seat depending on configuration. The chassis pairs a high-tensile steel frame with a 41mm telescopic fork and single rear shock, backed by dual front discs and a single rear disc for confident stopping power. Without the Vintage's factory-fitted leather saddlebags and windshield, the Chief Classic serves as Indian's genuinely blank-canvas cruiser — the same proven Thunder Stroke 111 foundation, styled and equipped however the owner wants to build it from there.

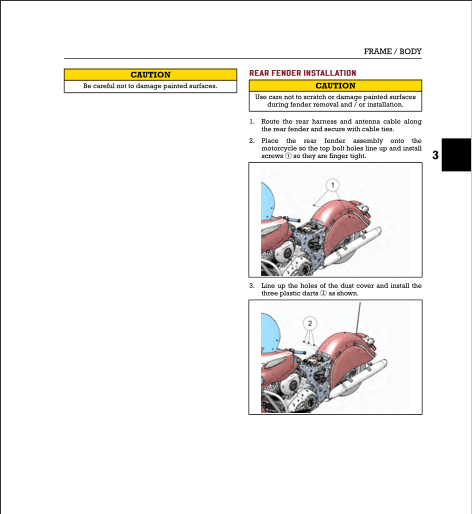

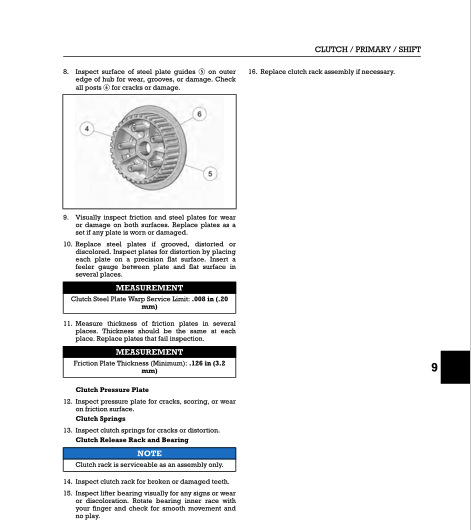

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2014-2016 Chief Classic running the way it was built to.
