Honda XRV650 Africa Twin 1988-1989 Service Manual

Launched officially on May 20, 1988, the XRV650 Africa Twin marked Honda's first major push into the adventure-touring category, and it wore its racing pedigree openly — finished in red, white, and blue to deliberately echo the Paris-Dakar-winning livery. Head designer Tomonori Mogi based the styling directly on the NXR750, HRC's works rally bike that won the Dakar four consecutive times from 1986 to 1989, though the road-going XRV650 shared no actual mechanical components with its rally namesake.

Power comes from a 647cc water-cooled 52-degree V-twin, SOHC with 3 valves per cylinder and a 9.4:1 compression ratio, fed by twin 32mm CV carburetors and CDI ignition with electronic advance. European-market bikes made a claimed 56-57 hp at 8,000 rpm and roughly 41 lb-ft of torque at 6,000 rpm, deliberately detuned from the race bike's output to protect Honda's reputation for bulletproof reliability. Power ran through a 5-speed gearbox with chain final drive.

Suspension was genuinely long-travel for the era: 43mm Showa forks delivering 230mm of travel up front, paired with a Pro-Link mono-shock offering 210mm at the rear. A single 296mm front disc and 240mm rear disc handled braking. The XRV650's 24-litre fuel tank, generous ground clearance, and 21-inch front wheel gave it genuine long-distance, mixed-surface capability, though the 880mm seat height and single front disc mark it as a product of its late-'80s design era rather than a modern adventure bike. Dry weight sits around 425 lbs. The XRV650 was replaced in 1990 by the larger-displacement XRV750, which carried the Africa Twin name forward for over a decade.

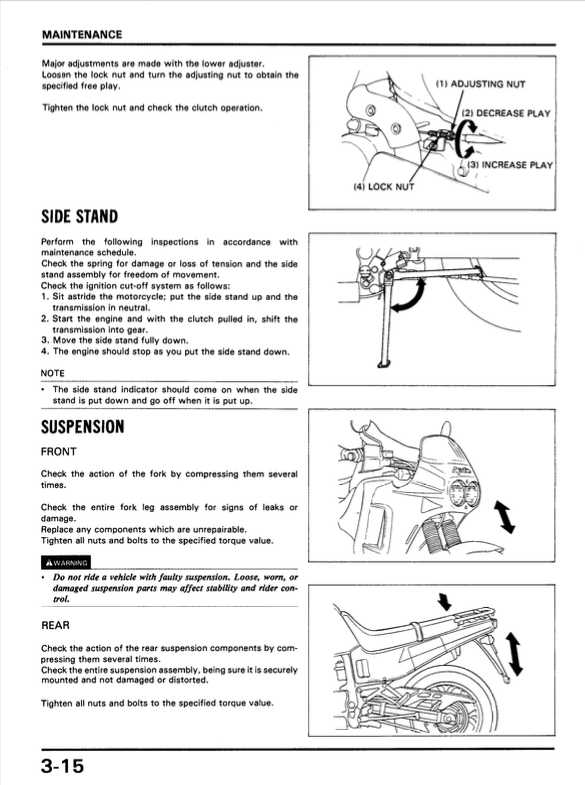

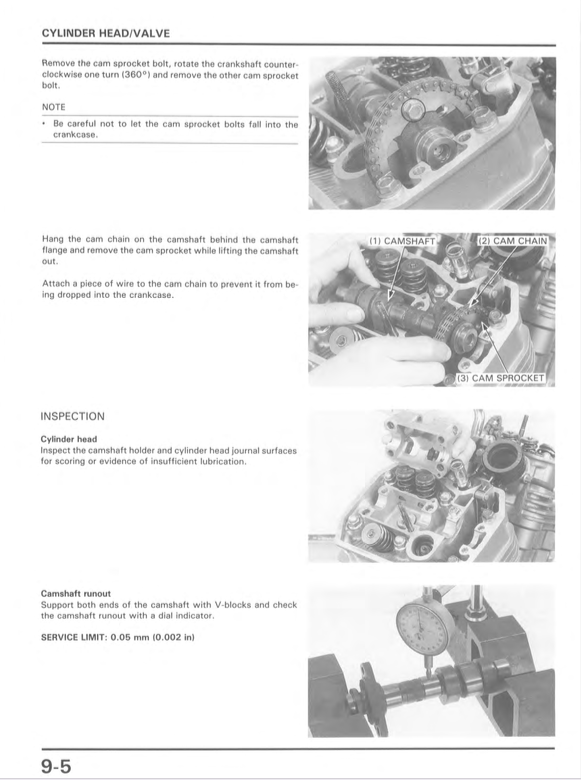

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1988-1989 XRV650 Africa Twin running the way it was built to.
