Honda XR70R 1997-2003 Service Manual

WebBikeWorld's own model archive confirms the exact language Honda used to introduce this bike in 1997: "a new off road model (i.e., no headlight or..." — deliberately built as a pure competition-and-play trail bike rather than the road-legal, headlight-equipped XR75/XR80 machines Honda had sold in the past. That same source confirms a genuine mid-run cosmetic update: "similar to the 1997 model except the fuel tank was redesigned to include a yellow 'HONDA' wing logo" — a detail worth checking against the exact model year when sourcing period-correct plastics for a restoration.

Power comes from a 72cc air-cooled single-cylinder four-stroke engine, SOHC, with a 47.0mm x 41.4mm bore and stroke and an 8.8:1 compression ratio, fed by an 18mm Keihin carburetor through a 3-speed automatic clutch transmission — Vincheck's own detailed spec breakdown estimates output around 6-7 hp, genuinely modest and deliberately so, since Honda "does not officially publish horsepower figures for the XR70R," with power specifically kept low "appropriate for its intended audience of beginner riders." Drive runs through a #428 O-ring-sealed X-ring chain to the rear wheel, with a genuine automatic clutch meaning young riders never need to coordinate a manual clutch lever with shifting.

The chassis pairs a 31mm telescopic fork offering 3.5 inches of travel with a Pro-Link single rear shock delivering 3.4 inches — genuinely real suspension technology trickled down from Honda's larger off-road lineup, rather than a simplified budget setup, giving the XR70R real trail capability beyond its beginner-focused positioning. ManualsLib's own excerpted factory specification page confirms a genuine mid-cycle dimensional change worth knowing for anyone servicing a specific model year: overall length, width, height, wheelbase, and seat height are all listed separately for "'97-2000" versus "After 2000" configurations — with 1997-2000 seat height specifically confirmed at 648mm (25.5 inches) before a running change altered the figure in later years. Braking uses expanding drum brakes at both wheels, genuinely simple, low-maintenance hardware appropriate for the bike's youth and beginner-rider market. Vincheck's own resale-market research confirms the XR70R launched with a genuinely accessible $1,600-$1,800 MSRP, and that a well-maintained, stock example "will always hold its value better than a neglected or modified one" on today's used market — a fair reflection of how many families have kept these bikes running as reliable first dirt bikes for successive young riders well beyond their original 1997-2003 production span.

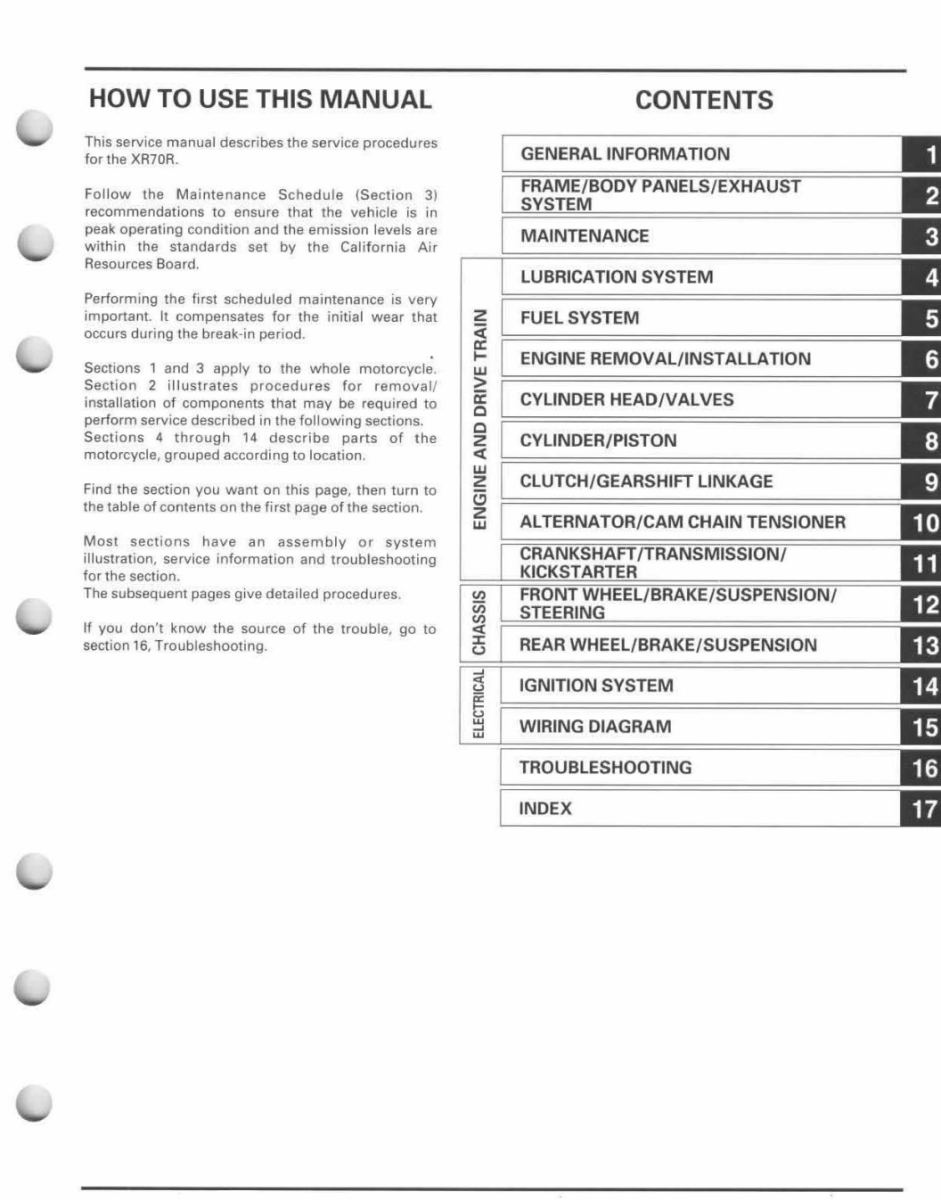

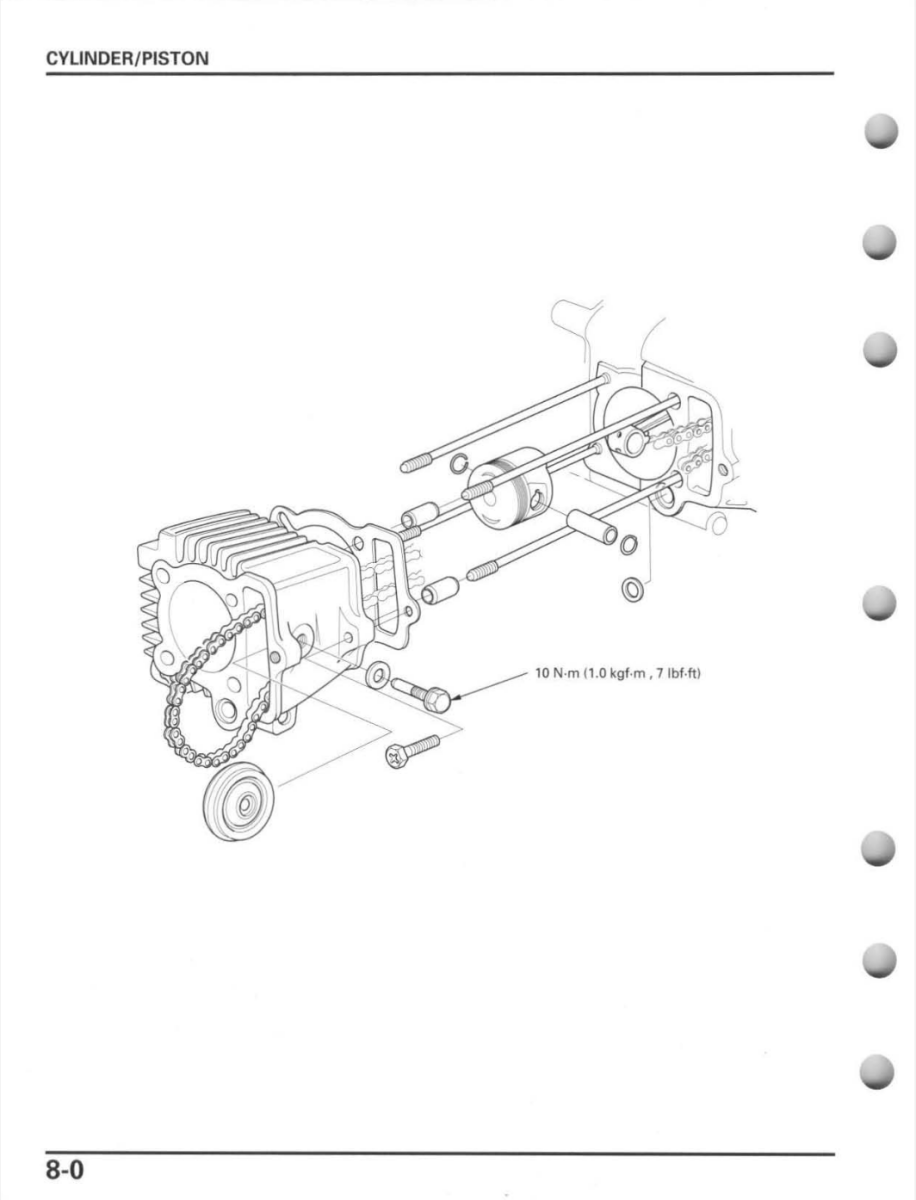

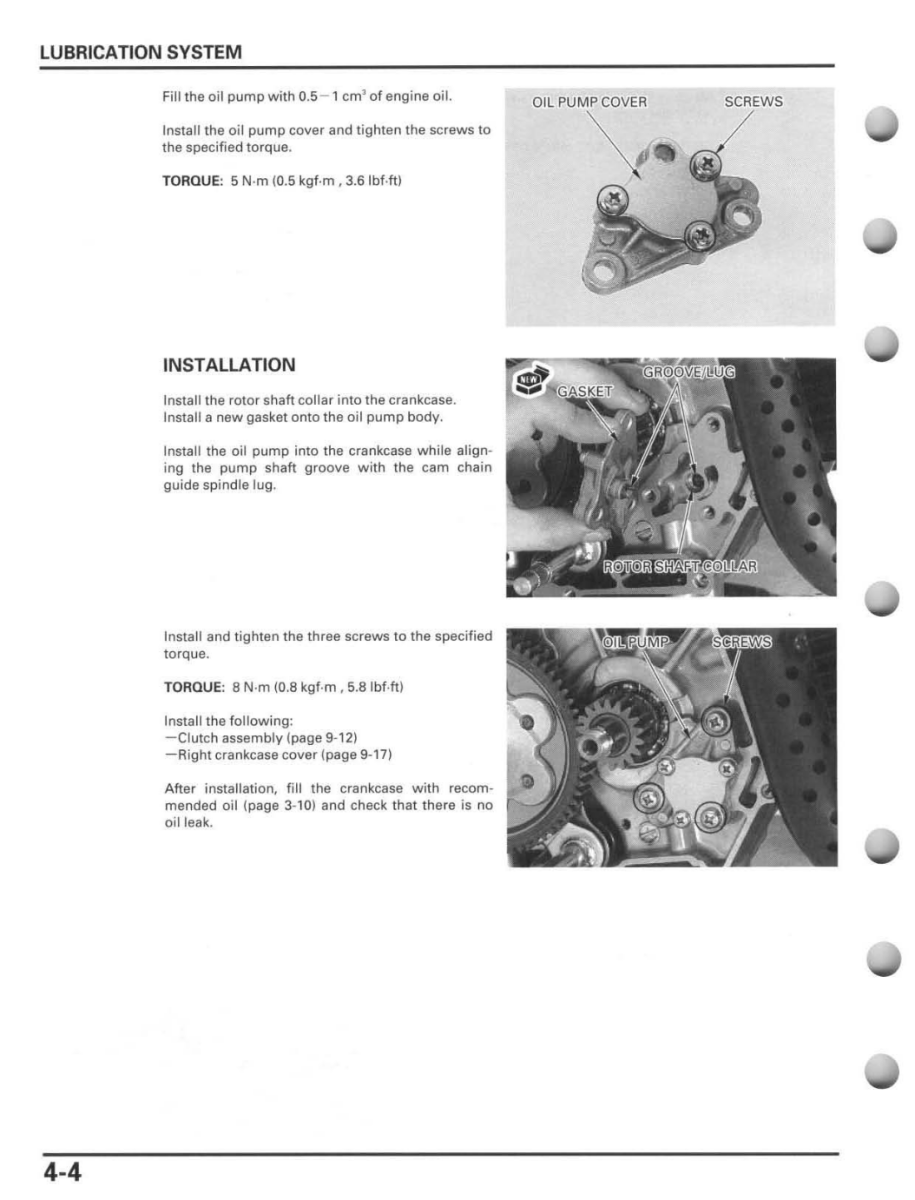

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1997-2003 XR70R's engine and driveline running the way it was built to.
