Honda XR600R 1988+ Service Manual

Cycle World's own January 1988 road test frames the genuine appeal of this year's update perfectly: "if you're a Honda XR600R lover, you probably fall into one of three groups: 1) you're a playrider; 2) you're a racer; or 3) you're a combination of the two. Honda is well aware of that, and doesn't really care which one you are. That's because the latest XR600R is one of a dying breed of motorcycles that can do it all." Autoevolution's own history confirms this exact model year brought the platform's most significant mechanical revision since its 1985 debut: "four years after its release, in 1988, the bike was revised by removing its original dual progressively opening carburetors and replacing them with a larger, single carburetor. In addition, the rear brake was updated to disc."

Power comes from a 591cc air-cooled single-cylinder four-stroke engine with Honda's RFVC (Radial Four Valve Combustion) design — four valves arranged radially around a single overhead camshaft, a 97mm x 80mm bore and stroke, and a 9.0:1 compression ratio, delivering a claimed 46-47 hp at 6,000 rpm and roughly 38-39 lb-ft of torque at 5,500 rpm through a 5-speed transmission with kickstart. Cycle World's own testing found the engine's real-world character genuinely impressive: "it makes smooth, usable power and has crisp throttle response at almost any engine speed, even down around idle," strong enough that "the '88 XR600R will absolutely smoke a 510 Husky in a drag race" and matches "the performance equal of KTM's brand-new LC-4 four-stroke Single" — though that same review candidly notes a genuine cold-start weakness: "the carburetor... comes with a pilot jet that is too small, making cold-starting a 10- to 20-kick affair," despite the built-in decompression mechanism and anti-backfire device.

Cycle World's own testing confirms genuine weight savings arrived alongside the new single carburetor: "substantially lighter, weighing only 271 pounds without gasoline," with improved front suspension delivering "a respectable amount of power" from the reworked engine. A dry-sump lubrication system feeds the engine, with front suspension consisting of 43mm cartridge-valve forks offering compression and rebound adjustability, paired with a Pro-Link single rear shock adding preload adjustment. CycleChaos' own year-by-year color and graphics history confirms this platform ran essentially unchanged mechanically for years after the 1988 carburetor and rear-disc-brake update, with genuine further refinement arriving in 1994 when the front fork switched to cartridge-type suspension — a detail worth checking against the exact serial number and model year when sourcing suspension parts. The XR600R continued in production all the way through 2000 with this fundamental 1988-spec engine and driveline architecture carrying forward, before Honda's road-oriented XR650L (a related but distinct model with more displacement, lower compression, and less horsepower) eventually superseded it in most markets.

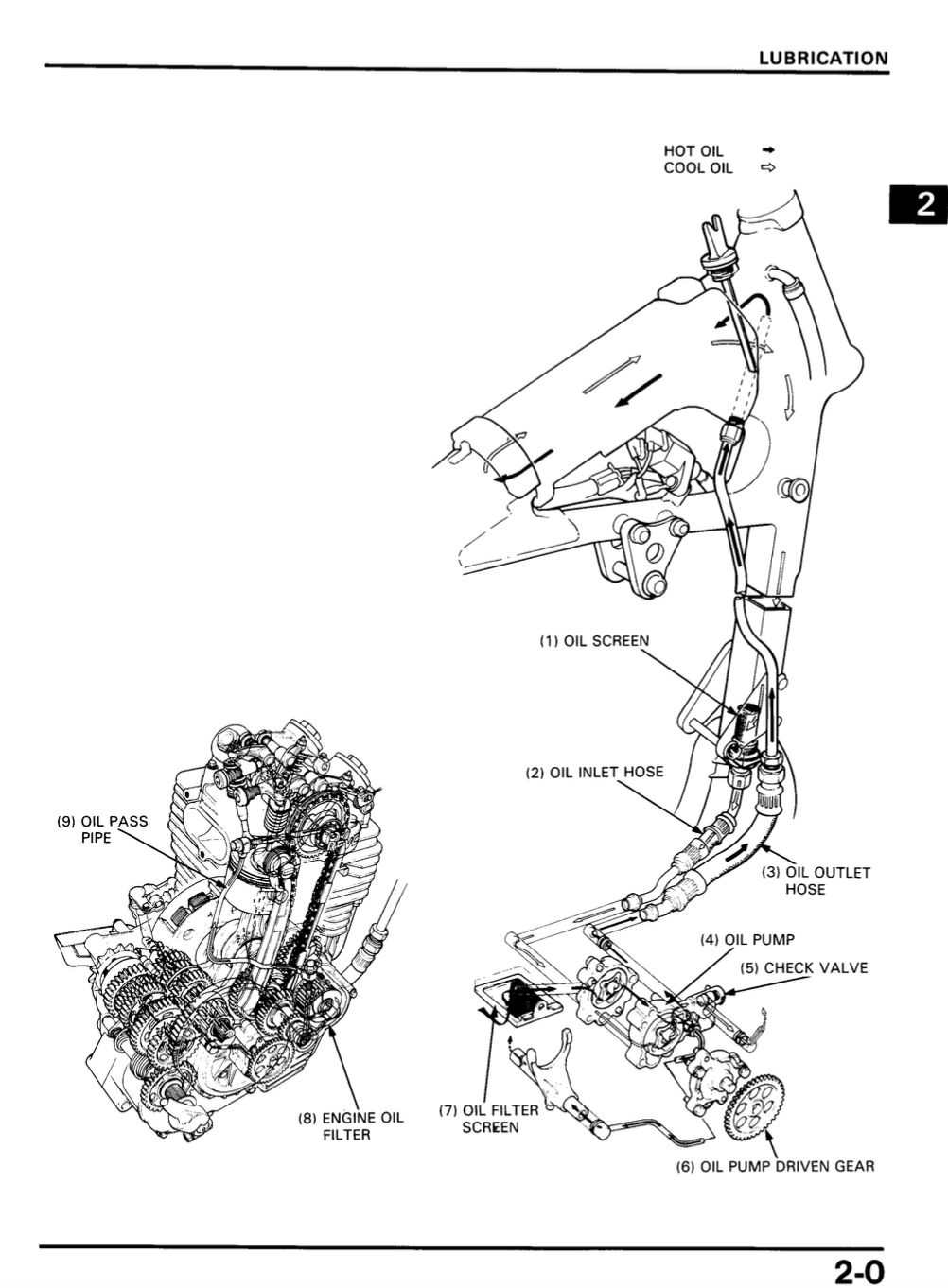

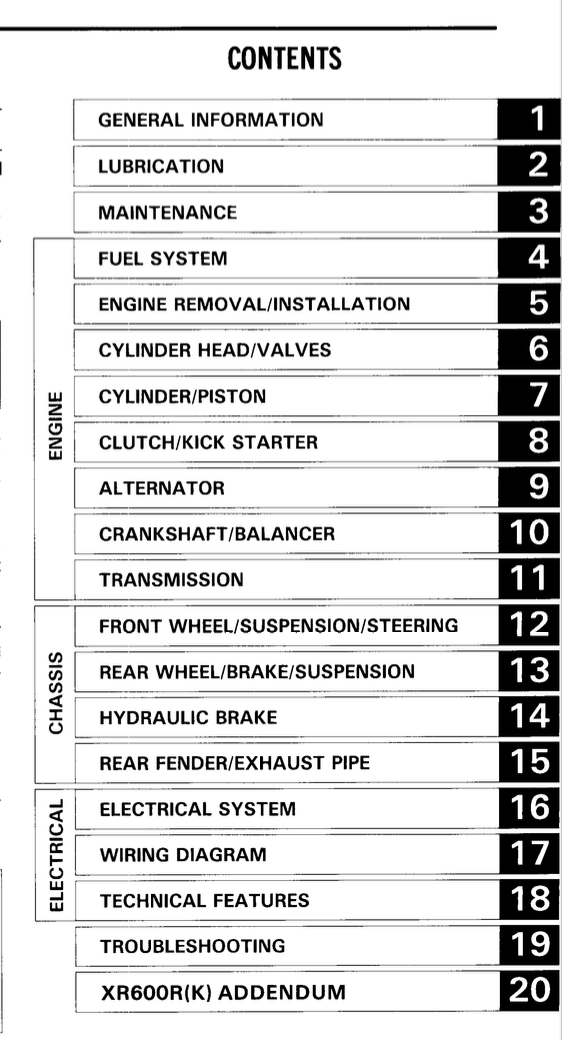

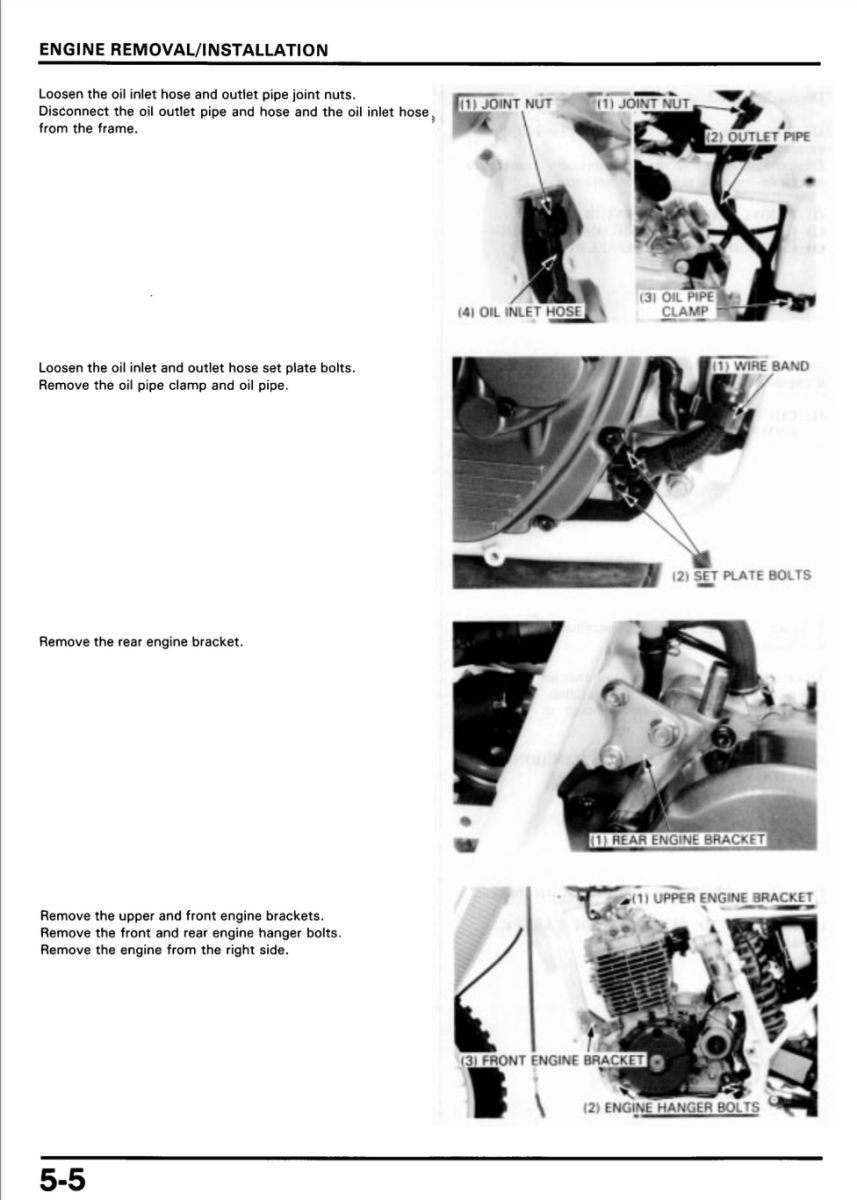

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1988-onwards XR600R's engine and driveline running the way it was built to.
