Honda XR400R 1996-2004 Service Manual

BikeBound's own retrospective doesn't hedge on this bike's cult status: "in 1996, Honda introduced the XR400R — a 266-lb four-stroke destined to become a legend among multiple generations of dirt riders, garnering a cult following. While Yamaha and KTM continued to update and redesign their four-strokes, the XR400R kept cooking along virtually unchanged during its entire eight-year production run. The reason was simple: it simply worked." Dirt Rider's own praise, published half a decade after the model was discontinued, is worth quoting at length for just how durable that reputation proved: "the XR remains a slim, nimble bike with outstanding steering, proven reliability and affordability, no pesky radiators to squish and all the equipment needed to be legal anywhere, anytime... The XR is the choice of 90 percent of adventure tour/off-road rental companies for a reason: it is dead reliable."

Power comes from a 397cc air-cooled single-cylinder engine with Honda's RFVC (Radial Four Valve Combustion Chamber) head and a single overhead camshaft — Adventure Rider's own technical breakdown notes this same architecture traces directly back through Honda's larger XR600R and XR650R "Big Red" off-road lineage, just scaled down for a lighter, more woods-friendly middleweight. Fully adjustable Showa suspension (a rear shock and forks with compression and rebound damping) delivered genuinely capable handling for a bike weighing a claimed 257 lbs dry, riding on a 21-inch front and 18-inch rear wheel with single disc brakes at both ends. Adventure Rider's own review flags the one genuine sticking point for modern riders: "if you wanted to ride the XR400R, you had to get used to the kickstarter... it was kickstart-only" — no electric start option across the entire production run.

Dirt Rider's own multi-rider comparison test captures the bike's real-world appeal from several distinct perspectives: one tester found it genuinely competitive against more modern rivals — "I don't think this bike gave anything away to the DR-Z400. I would put it in my garage" — while another was surprised by its cornering manners: "I was shocked at how fast I could corner because it hugs the ground so well." A third tester summed up its character precisely: "this Honda is made to stand up to abuse, and it really does. No radiators to ruin or overheat on the trail. It offers decent power and suspension action day in and day out. Nimble handling, great brakes and comfy ergos make it a pleasure to ride anywhere at any time, but it's not a race bike." Owner reviews collected by Cycle Insider back this up from a working-rider perspective, with one longtime owner comparing it favorably against the bigger XR600: "the XR440 in my opinion does outperform the XR600 on everything but a flat out drag race," while flagging cold-start difficulty as the one recurring quirk owners learn to live with.

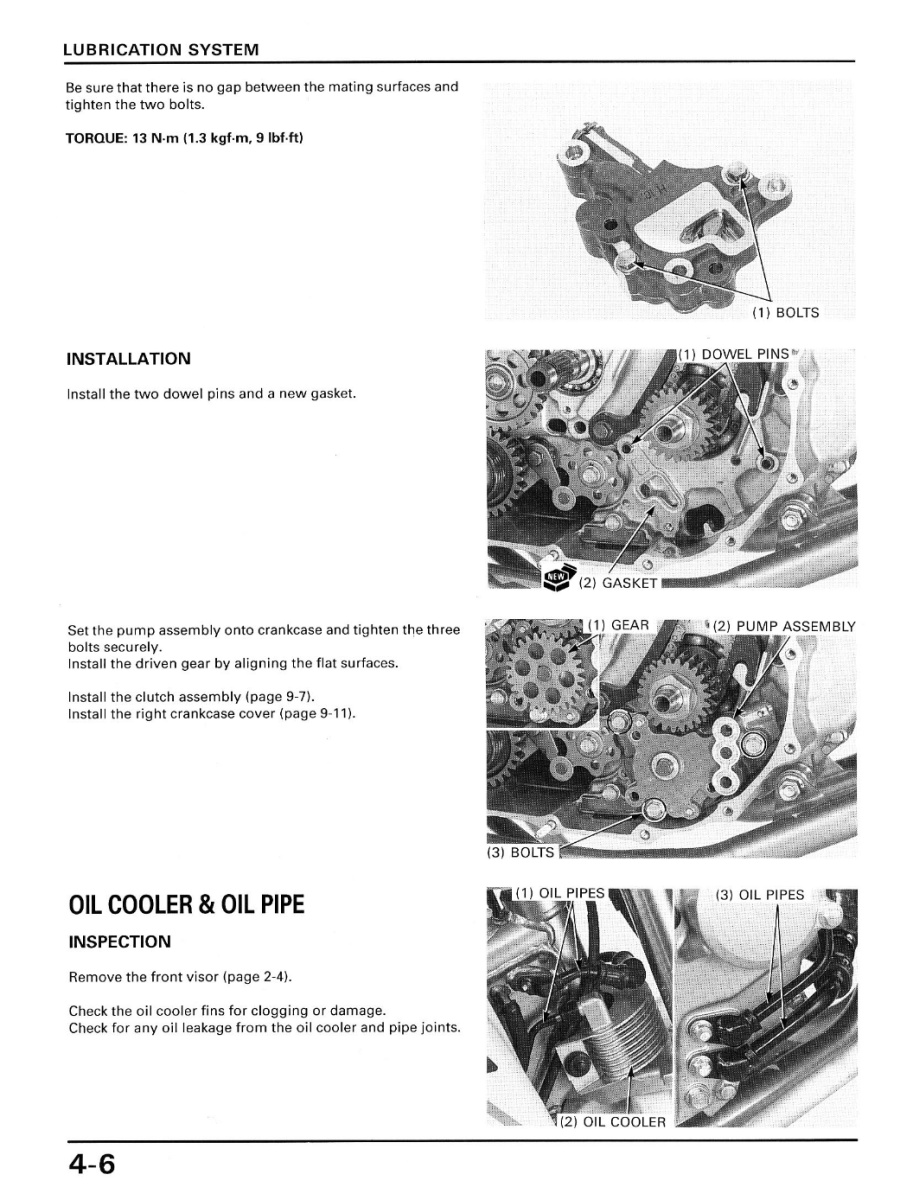

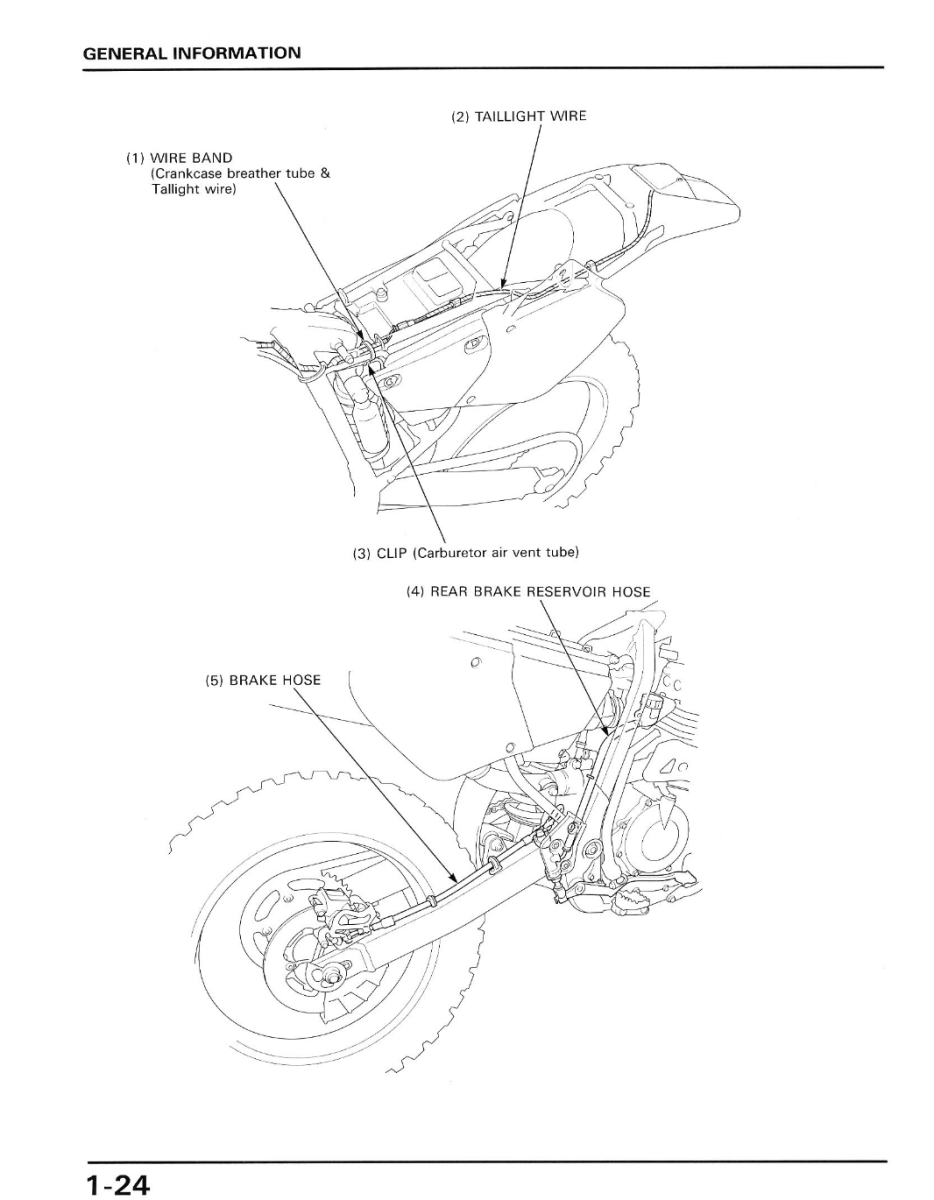

Dirt Wheels Magazine's own history reveals a genuinely significant piece of this engine's legacy beyond the motorcycle itself: "all TRX400s employed a modified, e-start version of the popular Honda XR400R motorcycle engine... in its first year, Honda teamed with Dirt Wheels to win the Baja 1000 on a near-stock machine" — the XR400R's engine became the foundation for the TRX400EX, one of the best-selling and longest-running sport quads ever built, running from 1998 all the way through 2016. This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1996-2004 XR400R's engine and driveline running the way it was built to.
