Honda VTX1300 2003-2009 Service Manual

VikingBags' own history frames the genuine market logic behind this platform's creation: "back in 2001, Honda introduced its gigantic V-twin cruisers, featuring the largest displacement of 1795ccs. The muscular cruisers were called VTX1800s and were an instant hit. Honda then went on to manufacture a range of lightweight, less intimidating motorcycles, the VTX1300 series with a smaller displacement of 1312cc." Big Bike Reviews' own coverage confirms this genuinely wasn't just a bored-down VTX1800 — Motor and Wheels once called the VTX family "the biggest production V-Twin in moto-history" at debut, and the 1300 shared that fundamental bragging-rights architecture at a scaled-down, more approachable displacement.

Power comes from a 1,312cc liquid-cooled SOHC V-twin with three valves per cylinder, an 89.5mm x 104.3mm bore and stroke, and a 9.2:1 compression ratio, delivering a claimed 74-75 hp at 5,000 rpm and roughly 91 lb-ft of torque at 3,000 rpm — autoevolution's own model history confirms a genuine mechanical distinction from its bigger 1800cc sibling: "unlike the fuel-injected engine of the VTX1800 machine, the VTX1300 model packed a constant-velocity carburetor," and ran a standard (non-linked) braking system rather than the 1800's combined setup.

Wikipedia's own detailed model breakdown confirms this range genuinely spanned four distinct trims across its production life: the VTX1300S launched first in 2003, the VTX1300C followed in 2004 with more custom-cruiser styling, the VTX1300R Retro arrived in 2005 aimed at the entry-level cruiser buyer, and the VTX1300T Tourer replaced the discontinued S variant in 2008 with genuine factory touring equipment. VikingBags' own account confirms the Retro's genuine sales success: "these bikes were one of the most popular entry-level cruisers because they were lightweight and easy to handle. As a result, the VTX1300 Retro did extremely well on the retail floors." Autoevolution's own coverage of the final 2009 Tourer confirms exactly what set that variant apart: "packed from factory saddlebags, a windscreen for better protection, and a passenger backrest for enhanced comfort" — 24-litre saddlebags specifically, giving the platform genuine long-distance capability its siblings lacked from the factory.

Standard equipment across the family included dual chromed exhaust with bullet-style mufflers, extensive chrome accenting on the V-twin engine, a low-slung double seat, a wide handlebar, and cast aluminum or wire-spoke wheels depending on trim. The chassis used a 41mm telescopic fork up front with dual chromed, preload-adjustable shocks at the rear, braking through a single 336mm front disc (dual-piston caliper) and a 296mm rear disc (single-piston caliper) — genuinely consistent hardware carried across every trim and model year in this range without significant revision. Big Bike Reviews' own market data confirms the Tourer package commanded genuine premium pricing at launch — the first VTX1300 trim to break the $10,999 threshold in 2008 — while today's used-market values for the whole family run from roughly $1,875 to $4,430 depending on condition and mileage, with clean-title examples over $5,000 generally reflecting genuinely well-maintained bikes. This platform closed out in 2009, the same year Honda's related VTX1300CX Fury chopper launched as a genuine successor sharing the fundamental 1,312cc engine architecture in an entirely reworked, stretched-out chassis.

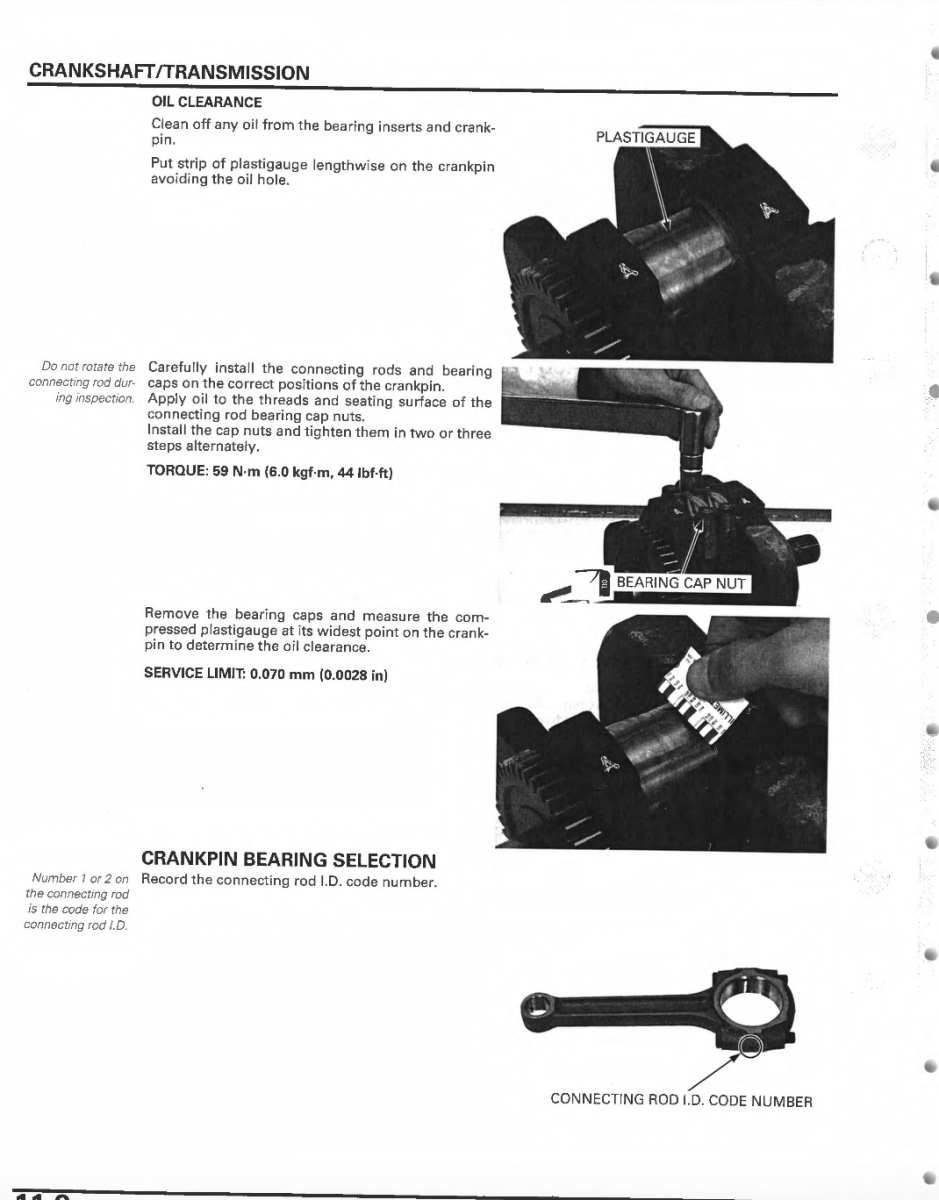

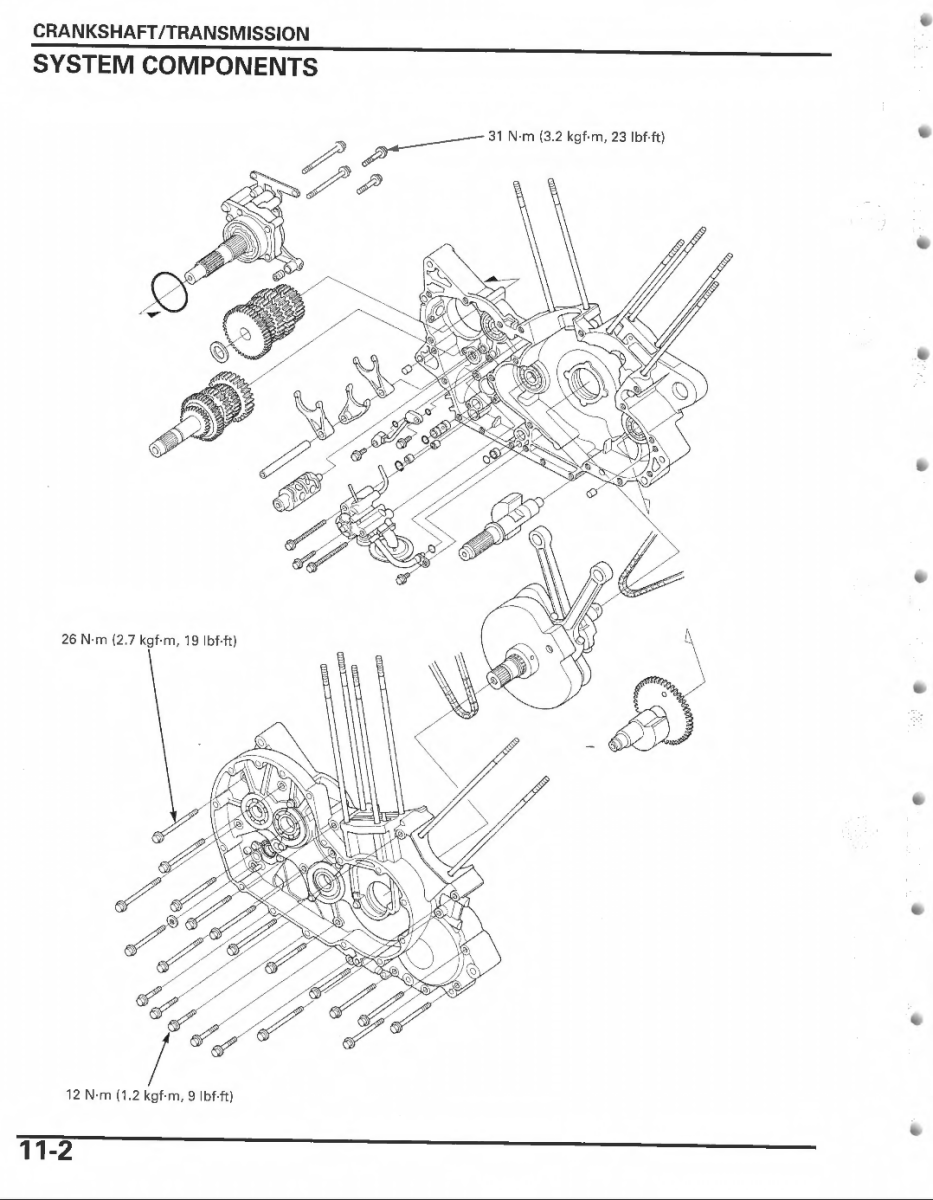

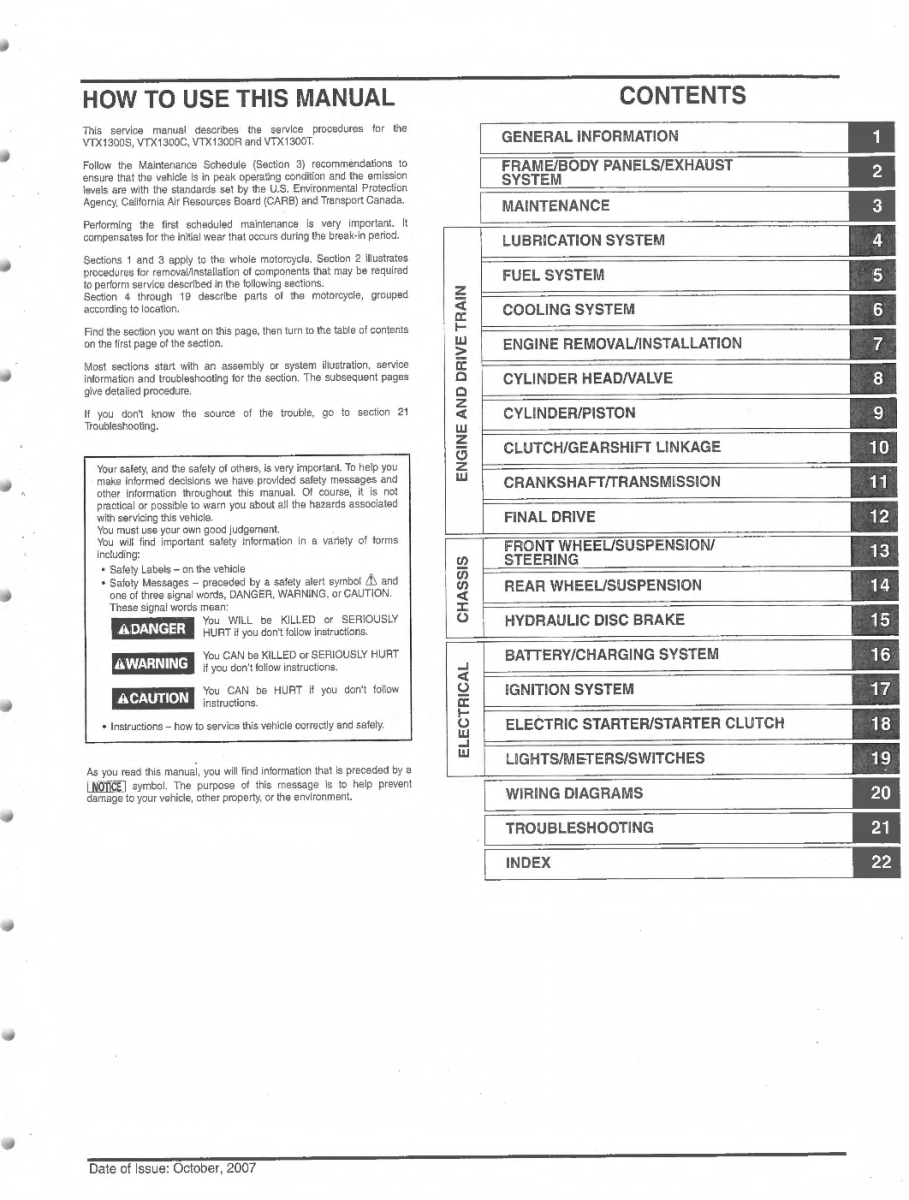

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2003-2009 VTX1300 running the way it was built to.
