Honda VF1100S Sabre V65 1984-1986 Service Manual

The V65 Sabre was one of Honda's genuine performance flagships of the era, built around a 1,098cc liquid-cooled V4 delivering a claimed 121 hp at 9,500 rpm and roughly 75 lb-ft (102 Nm) of torque at 7,500 rpm through a 6-speed manual transmission. It shared its fundamental V4 architecture with the smaller VF750S/VF700S Sabre and the closely related Magna cruiser line, distinguished by its considerably larger displacement and genuinely record-setting straight-line performance for a production motorcycle of this period.

This bike arrived as part of a genuinely deliberate industry response to US tariffs on imported motorcycles over 700cc — Honda's smaller VF700S Sabre was destroked specifically to dodge that duty, while the V65 sat above it as the genuine full-displacement performance flagship in the same family, unaffected by the tariff since Honda simply absorbed the cost on the larger-displacement model rather than shrinking it.

The chassis uses a double-cradle steel frame with a 41mm air-assisted, three-way adjustable telescopic fork offering 145mm of travel up front, paired with a three-way adjustable Pro-Link rear shock. Braking uses dual 274mm front discs with dual-piston calipers and a 279mm rear disc with a two-piston caliper, on six-spoke aluminum wheels. Standard equipment included a center stand, a four-into-two exhaust with a muffler on each side, a one-piece two-up seat with passenger grab handle, and a rectangular headlight mounted on the fork.

A genuinely well-documented weak point across this engine family is premature camshaft wear on some early examples, worth checking on any surviving unit before assuming the top end is in good health. Dry weight came in around 241.5kg (532.5 lbs), with a claimed top speed near 155 mph — genuinely among the fastest production motorcycles sold anywhere in the world during this exact two-year run.

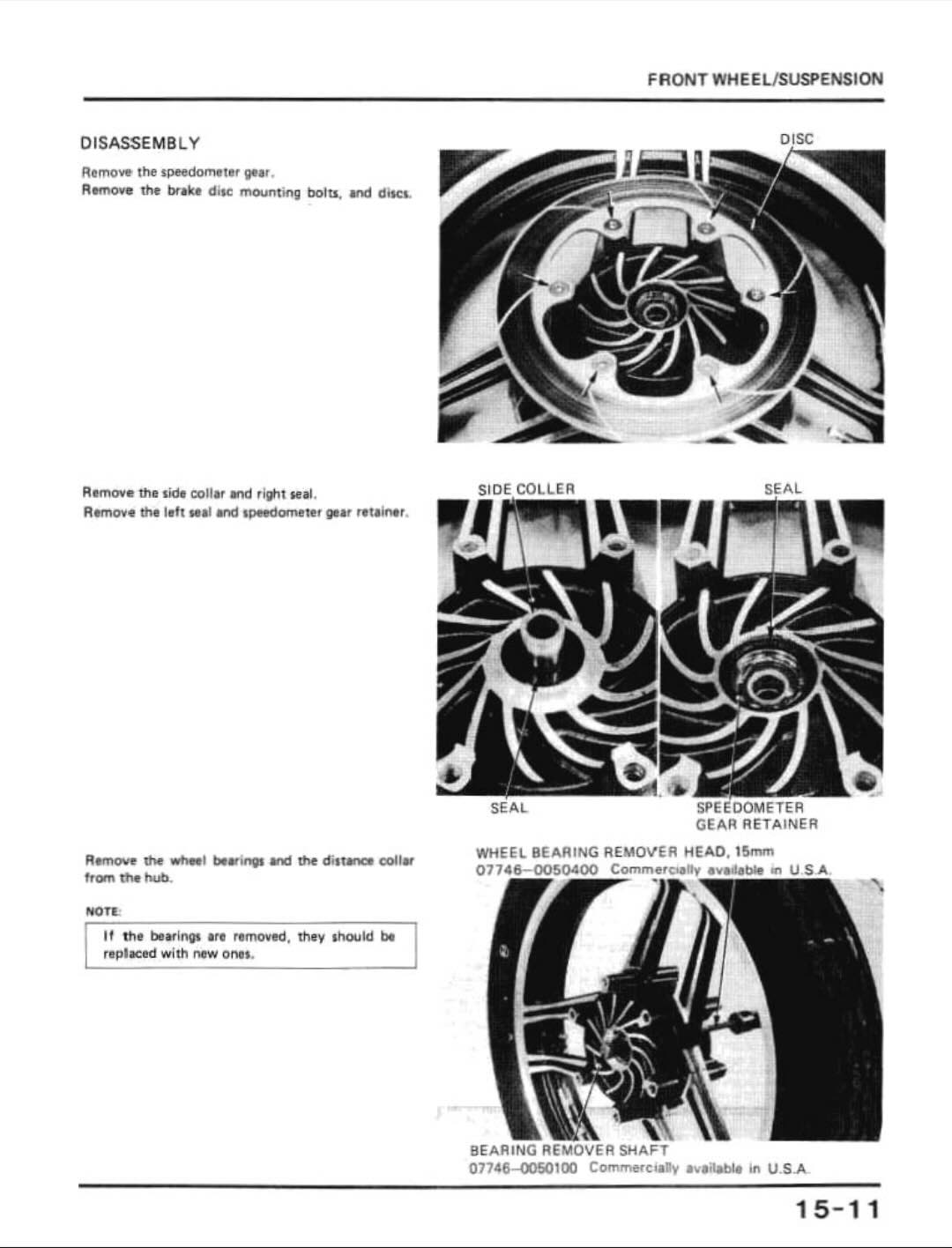

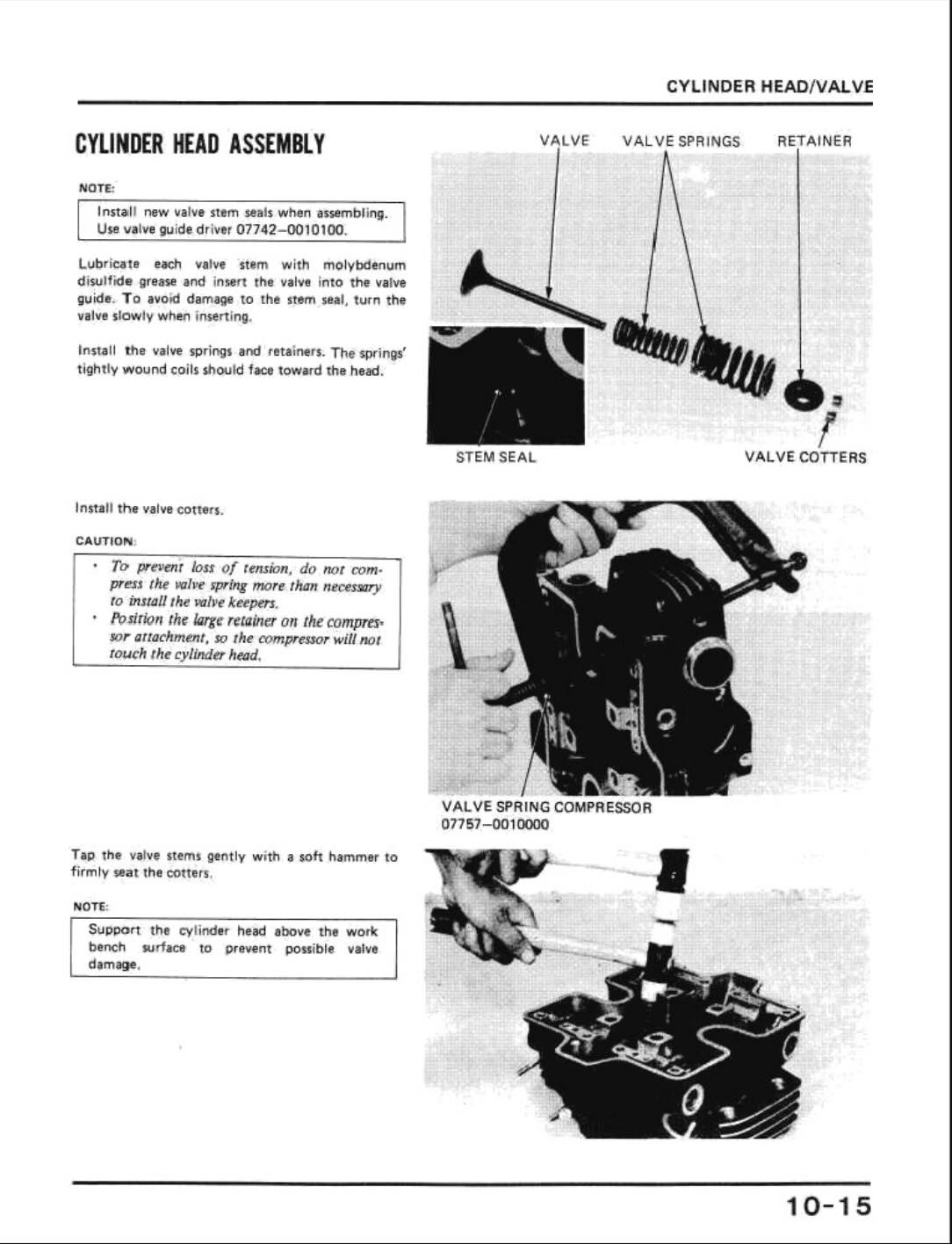

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1984-1986 VF1100S Sabre V65 running the way it was built to.
