Honda TRX350 TE TM FE FM Fourtrax Rancher 2004-2006 Service Manual

Honda's own factory specification sheets confirm the shared architecture underpinning this entire four-variant range: a 329cc air-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke engine with a 78.5mm x 68mm bore and stroke, run through carburetion rather than fuel injection — this generation predates the switch to PGM-FI that arrived on later Rancher displacement classes. The naming convention splits cleanly by two variables, exactly as it does on Honda's larger 420 and 400 Rancher siblings: TE and TM cover 2WD models, FE and FM cover 4WD models, with "E" denoting Honda's Electric Shift Program push-button shifting and "M" denoting a conventional foot-shift manual transmission.

Power runs through Honda's proven longitudinal-engine, shaft-drive architecture — the same fundamental layout Honda applied across its entire Rancher and Foreman utility lineup during this era, delivering genuinely low-maintenance final drive that stays reliable even after sustained mud and water crossing exposure. The FE and FM variants add Honda's TraxLok selectable 4WD system with a torque-sensitive front differential, giving riders genuine on-demand traction for technical terrain while retaining the fuel efficiency and reduced driveline stress of running in 2WD for routine trail or field work.

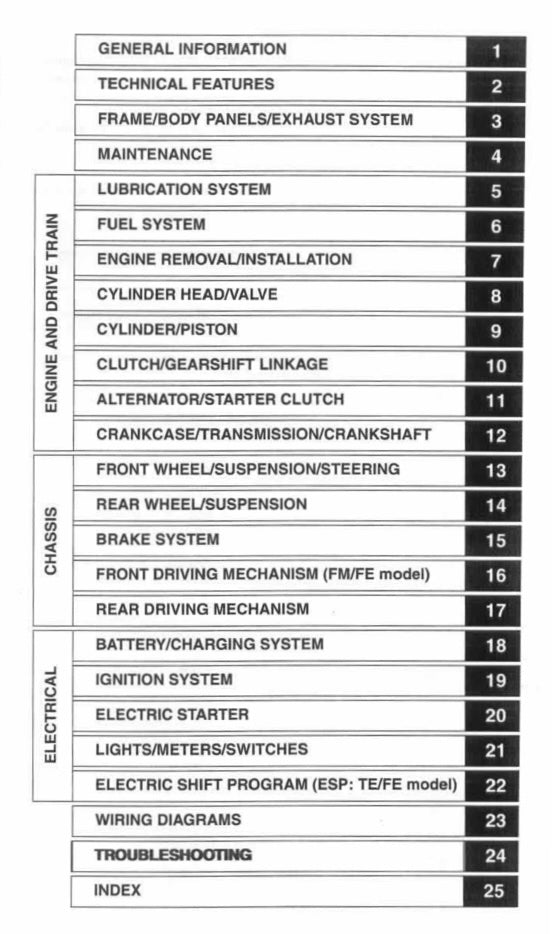

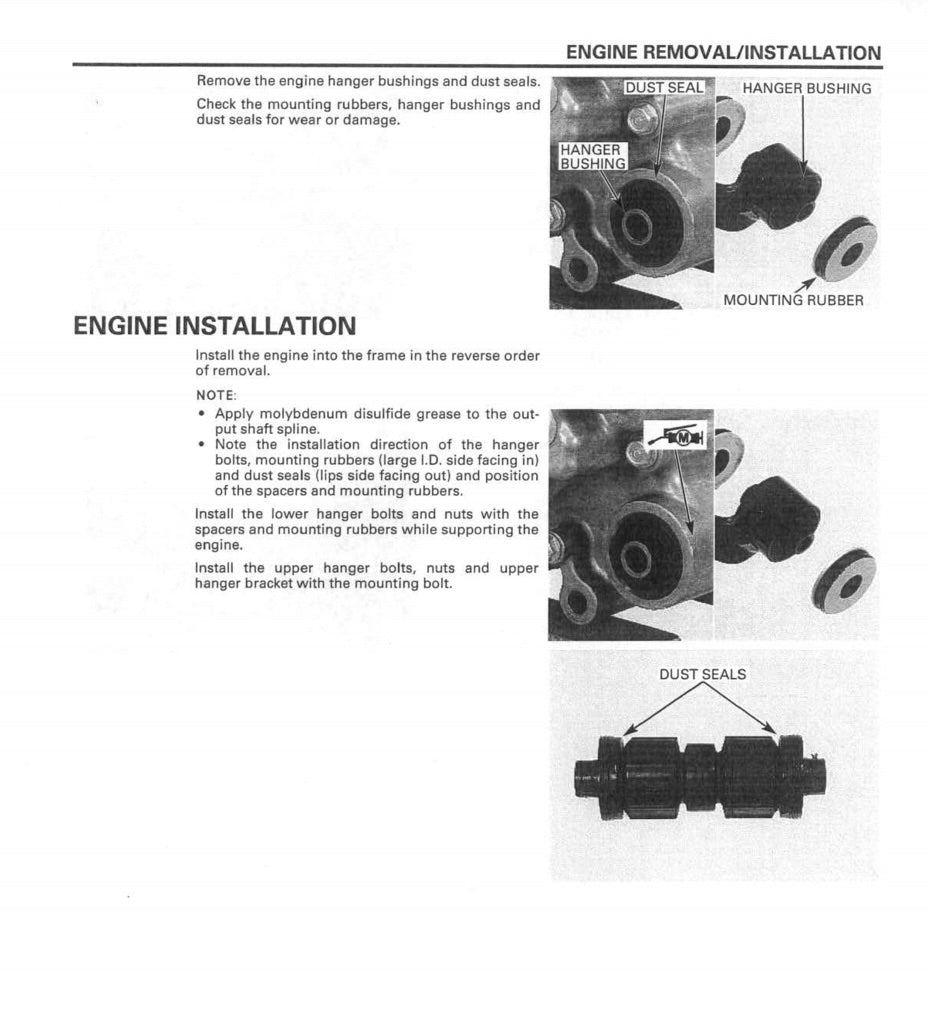

This generation shares enough parts commonality with the contemporaneous TRX400 Rancher line that aftermarket component listings — seats, stators, rectifiers — frequently cross-reference both the 350 and 400 series together, though the underlying 329cc and larger-displacement engines remain genuinely distinct and non-interchangeable at the powertrain level. The factory service manual for this range covers general information and specifications, the complete carbureted fuel system, engine lubrication, full engine teardown and reassembly procedures, the centrifugal clutch and transmission, front and rear suspension and steering, the complete brake system, the front driving mechanism specific to 4WD FE/FM models, rear driving mechanism, and Honda's Electric Shift Program wiring and diagnostics for the TE/FE variants — genuinely comprehensive coverage across all four drivetrain configurations sharing this platform. This 329cc-engine generation ran through 2006 before Honda's larger-displacement Rancher models took over as the primary mid-size offering in the lineup.

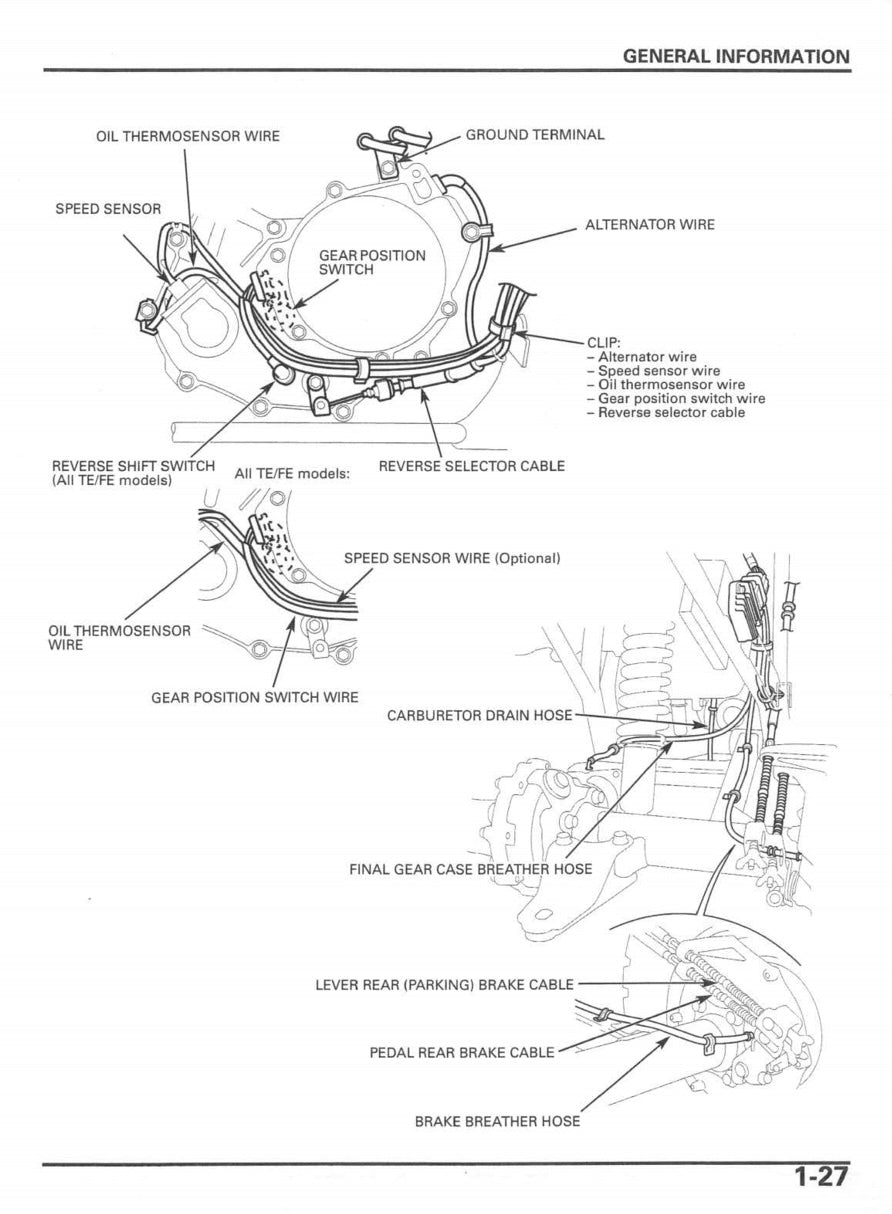

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2004-2006 TRX350 TE/TM/FE/FM FourTrax Rancher running the way it was built to.
