Honda TRX250EX 2006-2011 Service Repair Workshop Manual
Honda TRX250EX 2006-2011 Service Repair Workshop Manual
Couldn't load pickup availability
Honda TRX250EX 2006-2011 Service / Repair / Workshop Manual
Instant download after purchase, in PDF form, NOT a physical book.
This manual contains 369 pages in English Language, it is the only manual you will require to maintain, repair and service your Honda TRX250EX, using this manual you ensure that your motorbike is repaired to manufacturer standards / specification, whether you are using OEM or genuine Honda Parts.
Suits Models from 2006, 2007, 2008, 2009, 2010 and 2011

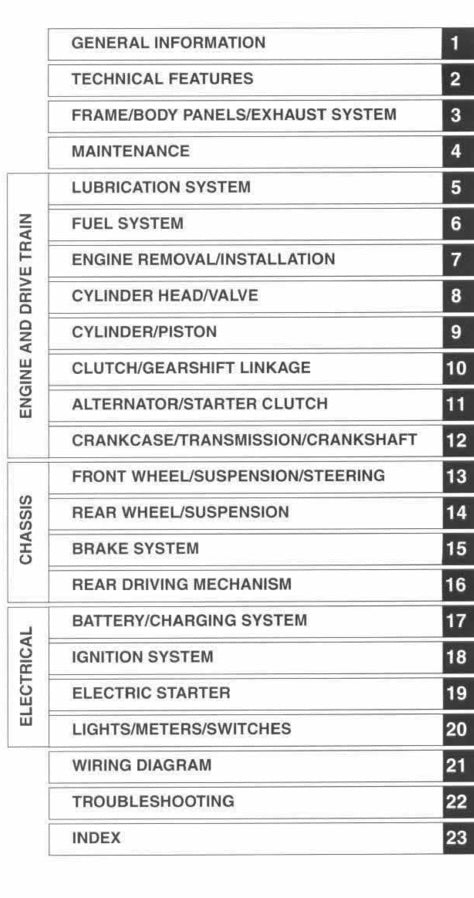

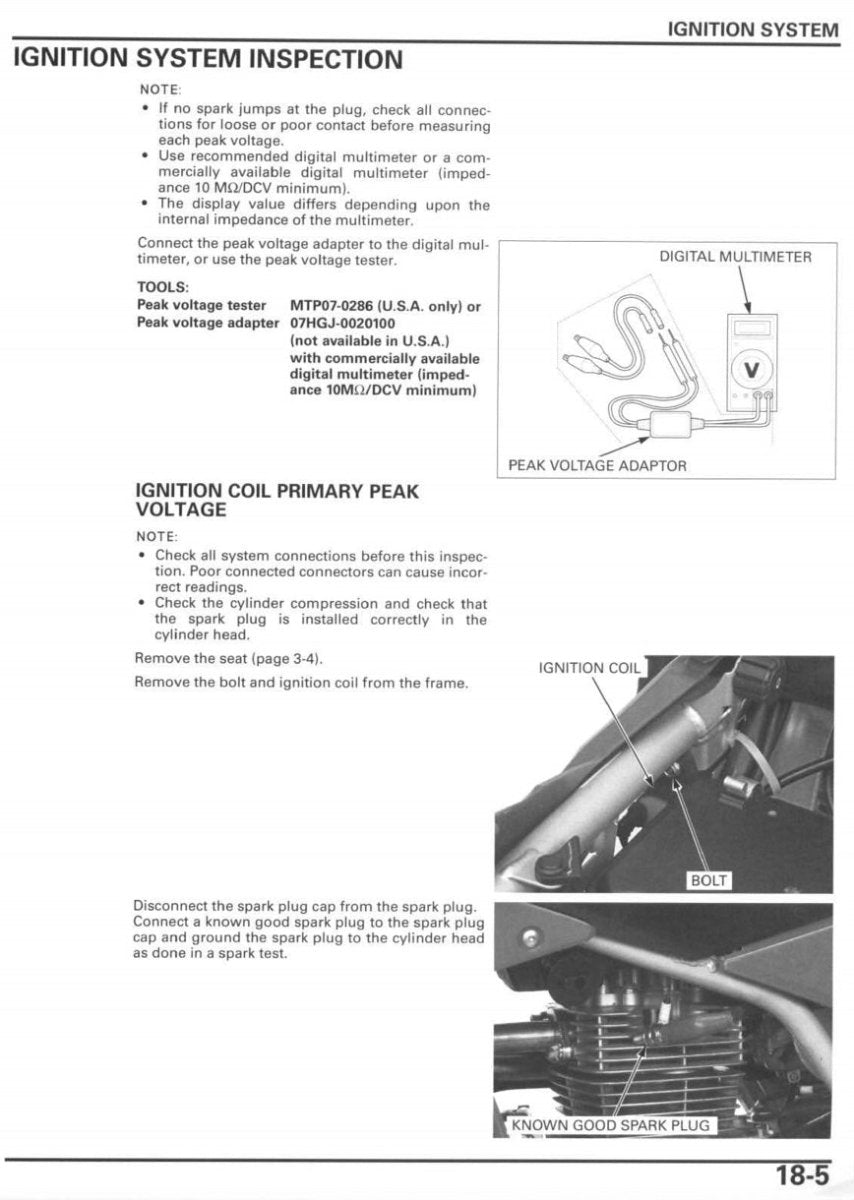

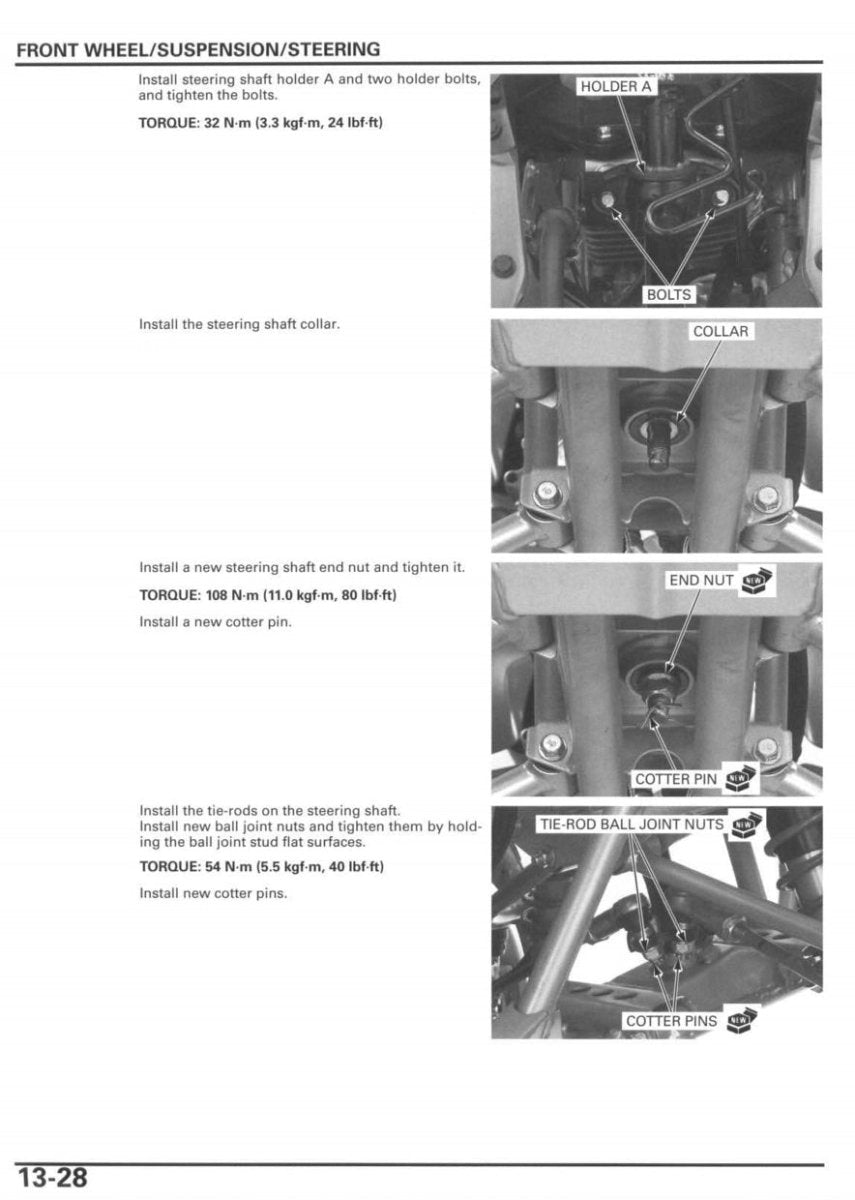

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.
Features Chapters: General Information, Technical Features, Frame/Body Panels/Exhaust System, Maintenance, Lubrication System, Fuel System, Engine Removal/Installation, Cylinder Head/Valve, Cylinder/Piston, Clutch/Gearshift Linkage, Alternator/Starter Clutch, Crankcase/Transmission/Crankshaft, Front Wheel/Suspension/Steering, Rear Wheel/Suspension, Brake System, Rear Driving Mechanism, Battery/Charging System, Ignition System, Electric Starter, Lights/Meters/Switches, Wiring Diagram, Troubleshooting, Index.
If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.
Share
TRX250EX (2006-2011): "Sporty, Fun-to-Ride" — Genuine Manual Control Without the Stall Risk
ATVriders' own coverage of the 2006 redesign captures Honda's genuine engineering achievement directly: "Honda's sporty, fun-to-ride TRX 250EX is fitted with a revolutionary innovation called Honda SportClutch, which enables the rider to experience manual clutch actuation with the advantage of no engine stalling." That's a genuinely clever mechanical solution — riders get real manual shift control and engine braking feel, without the risk of stalling out mid-trail that a conventional manual clutch carries, since the SportClutch system automatically prevents the engine from bogging down regardless of gear selection or throttle input.
Power comes from a 229cc air-cooled OHV single-cylinder engine, longitudinally mounted, with a 68.5mm x 62.2mm bore and stroke, fed by a 22mm piston-valve carburetor, delivering a claimed 17 hp and a genuine 50 mph top speed. Honda's own factory specification data confirms this fundamental engine architecture, and ATVriders' own historical coverage notes the 2006 redesign brought genuinely new front and rear suspension alongside TRX450R race-inspired styling — a real visual and mechanical step up from the earlier TRX250EX generation this replaced, giving the sport-quad line a genuinely more aggressive, race-derived look and feel.
Power runs to the rear wheel via a direct shaft drive — a genuinely low-maintenance choice over chain drive, eliminating the periodic chain adjustment and lubrication that chain-driven rivals require. WebBikeWorld's own spec breakdown confirms a 384 lb curb weight, a comfortable 31.4-inch seat height, and a 44.3-inch wheelbase — dimensions genuinely suited to both newer riders building confidence and experienced riders wanting aggressive, sporty handling on tighter trails. Honda's own recommended service fluid calls for 1.7 quarts of GN4 Honda 10W-40 oil. Honda News' own product materials confirm 2008 brought a genuine color expansion — a new White option joining the existing Red — while the fundamental engine, chassis, and SportClutch system carried forward essentially unchanged throughout this entire 2006-2011 span, reflecting how well Honda had already dialed in the platform's core engineering at launch.
This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2006-2011 TRX250EX running the way it was built to.
-
