Honda TRX250 TE TM Fourtrax Recon 1997-2004 Service Manual

Honda's own ATV model history timeline (referenced across earlier searches in this session) describes the Recon's genuine market impact directly at launch: "Honda's value-packed, light-utility Recon is an immediate success. Featuring the same longitudinal engine layout as the larger Foreman 400, the Recon offers full-size ergonomics and dependable shaft drive." Introduced in 1997, the Recon brought the same fundamental longitudinal-engine philosophy that had made the larger Foreman 400 successful down into a genuinely lighter, more accessible displacement class.

Power comes from a 229cc air-cooled OHV single-cylinder engine, longitudinally mounted for genuine shaft-drive efficiency — the same fundamental engine architecture Honda would later apply to the TRX250EX sport quad, though tuned here specifically for utility and recreational riding rather than sport performance. Repair manual documentation for this generation confirms the model naming convention across this span: the base TRX250 (1997-2001) carried a simple manual-shift transmission, while 2002 brought a genuine naming split — the TRX250TM continuing as the standard manual-shift Recon, and the new TRX250TE introducing Honda's Electric Shift Program (ESP) as the "Recon ES" variant, letting riders shift up or down at the push of a button.

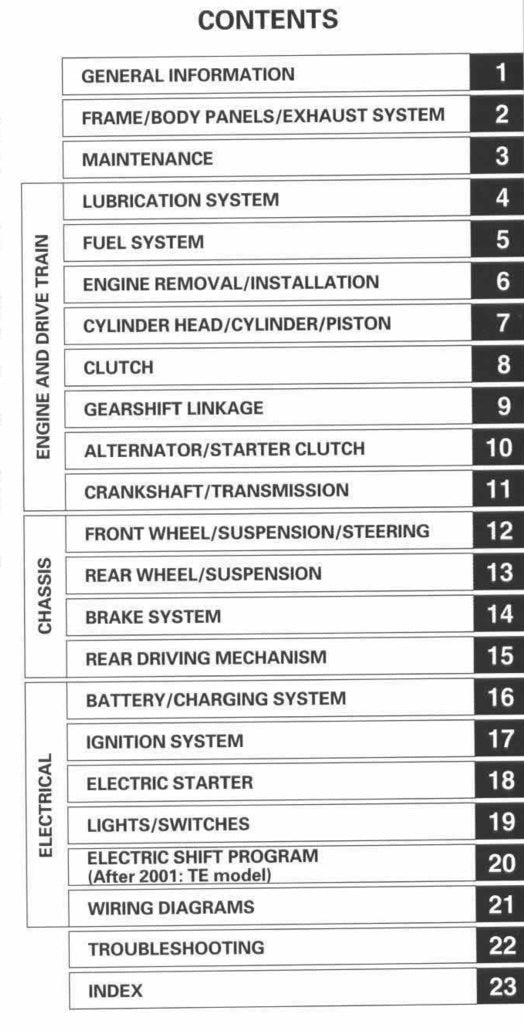

Autoevolution's own coverage of the later ESP-equipped Recon ES describes the genuine benefits of that electric shifting system, benefits that would have applied equally to the TE variant covered in this range: "easy and intuitive push-button operation, the shifting is now quick and smooth, allowing the operator to focus more on riding and surmounting obstacles, with only minimal power loss between the gears." An automatic clutch delivered consistent power and smooth engagement, while sealed drum brakes stayed genuinely impervious to mud and debris, and the rear driveshaft required no ongoing maintenance even in adverse riding conditions — genuine low-maintenance engineering suited to a machine built for both farm work and forest-trail recreation. The Recon's extensive racking capability made it a genuinely versatile choice for camping and hauling gear, alongside everyday utility tasks. The factory service manual for this range covers general information, frame and body panel service, maintenance procedures, lubrication and cooling systems, the fuel system, complete engine removal and installation, cylinder head and piston work, clutch and gearshift linkage, the alternator and starter clutch, crankshaft and transmission service, and front wheel, suspension, and steering — genuinely comprehensive coverage across both the manual TM and electric-shift TE variants sharing this platform.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1997-2004 TRX250TE/TM FourTrax Recon running the way it was built to.
