Honda CRF450X 2005-2012 Service Manual

Honda's own 2005 launch materials frame this bike's relationship to the motocross CRF450R with a genuinely memorable analogy: "imagine a family with twin brothers... fraternal twins, not identical twins. Although bonded to each other with inseparable genetic ties, they are still and all quite unique from one another." Wikipedia's own account confirms the real-world payoff of that off-road-specific tuning: 11 Baja 1000 victories and 5 more at the Baja 500, with roughly 27,000 units sold since October 2018 alone.

Power comes from a 449cc liquid-cooled single-cylinder engine, DOHC/Unicam depending on model year, a 96mm x 62mm bore and stroke, and a 12.0:1 compression ratio, fed by a 40mm flat-side Keihin carburetor, delivering a claimed 44.8-45 hp at 7,500 rpm and 32 lb-ft (43 Nm) of torque at 7,000 rpm through a 5-speed wide-ratio transmission. Honda's own launch technology account confirms exactly what makes this engine genuinely different from its motocross sibling: a new camshaft with less duration and overlap enhancing torque spread, ultra-lightweight titanium intake valves 1mm smaller in diameter than the CRF450R's, and steel exhaust valves also downsized — deliberate changes prioritizing accessible, tractable off-road power over peak motocross horsepower.

Autoevolution's own confirmed generational breakdown flags a genuine hardware split worth knowing across this exact range: the first generation (2005-2007) ran a wide-ratio transmission, electric start, and an 18-inch rear wheel, while the second generation (2008-2017, covering the bulk of your listed range) added a steering damper, revised accelerator pump, and a smaller fuel tank. Suspension consisted of a 47mm inverted Showa cartridge fork with 16-way rebound and compression adjustability and 12.4 inches of travel, paired with a Pro-Link Showa single shock offering matching adjustability. Braking used single 240mm discs at both wheels.

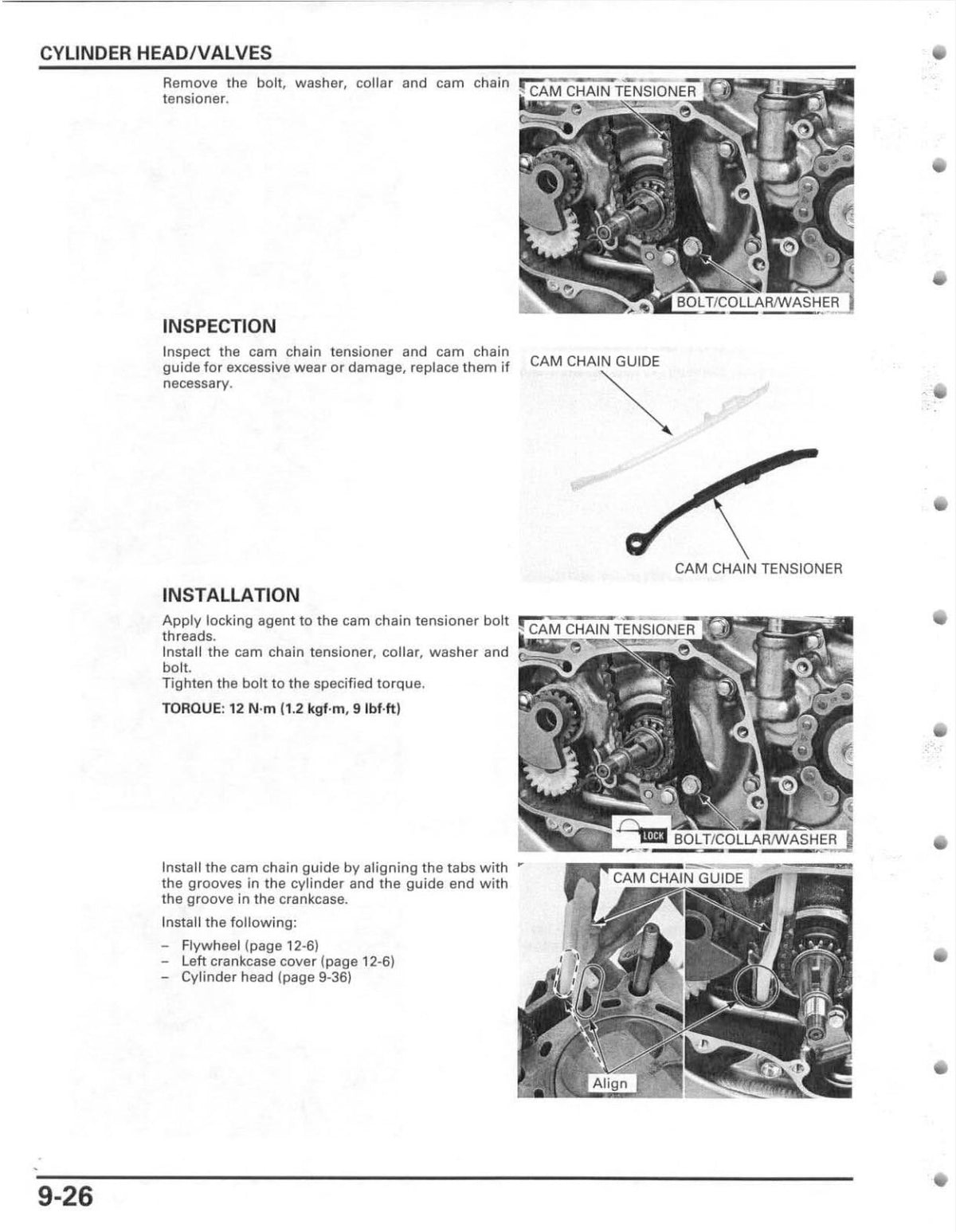

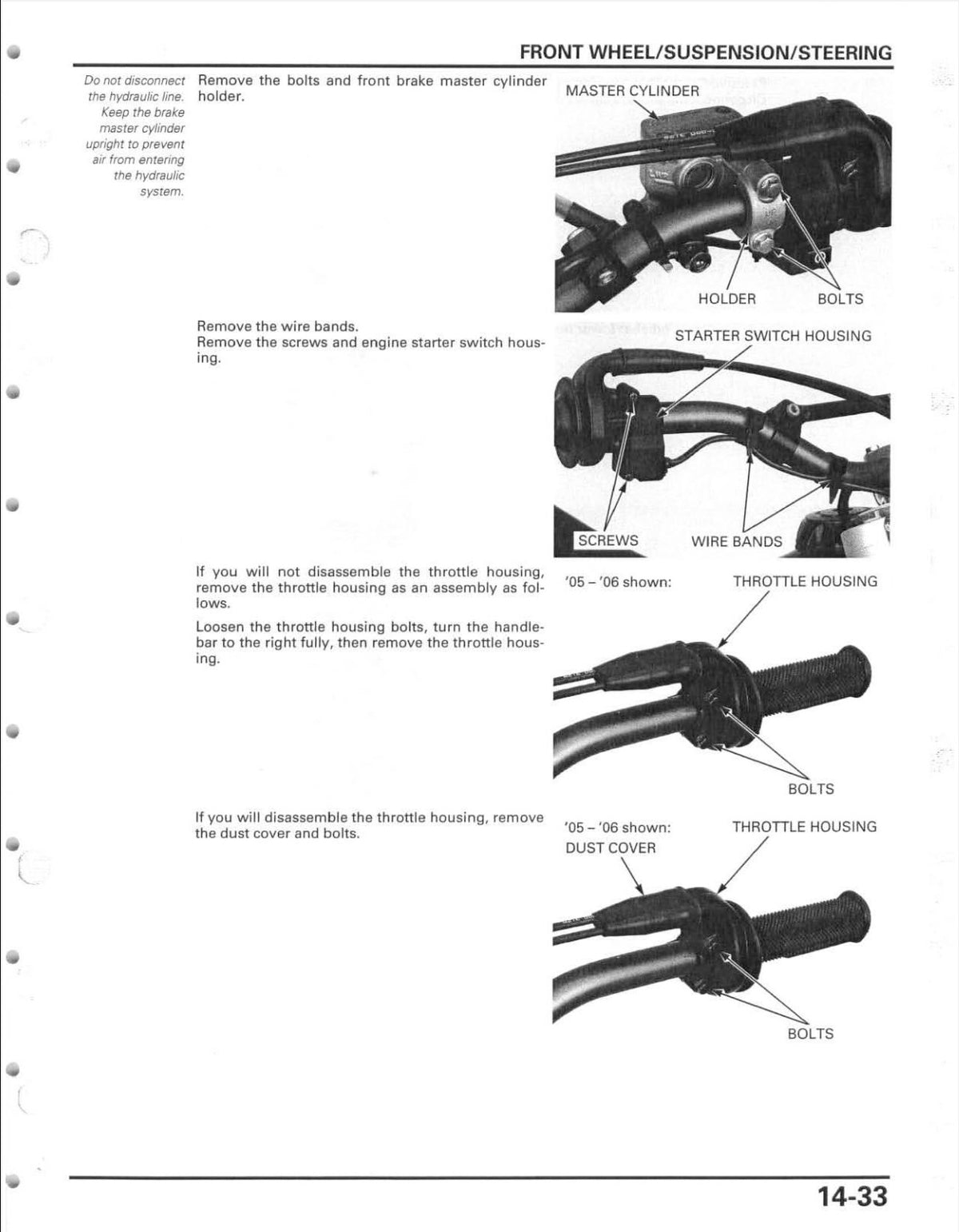

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2005-2012 CRF450X's engine and driveline running the way it was built to.
