Honda CRF450RX 2021-2024 Service Manual

Dirt Rider's own confirmed 2023 dyno testing quantifies exactly what Honda's engineers changed and why: "in addition to chassis and suspension revisions, Honda gave its flagship cross-country model some engine updates for 2023 including a narrower intake port shape and longer intake funnel, both to improve response and torque. Big Red also changed the camshaft profile to further increase torque, and a smaller-diameter throttle body (44mm versus 46mm on the 2021 and 2022 models) was spec'd to create a smoother power delivery at low speeds. With a drum-roller-friendly Dunlop D404 street tire mounted on its 18-inch rear wheel, the CRF450RX proceeded to tally 51.0 hp at 9,300 rpm and 34.1 lb-ft of torque at 6,800 rpm. Compared to the 2021 model, that's a decrease of 2.2 hp" — a genuine, measured trade-off worth knowing between a 2021-2022 example and a 2023-2024 unit, since the smaller throttle body is a real hardware distinction, not just a mapping change.

Autoevolution's own confirmed account details what opened this exact generation: "in 2021, the bike received a major revision that included a new chassis from the base model, a more flexible frame, a longer swingarm, a single-sided exhaust muffler, a hydraulic clutch, and standard handguards." Power comes from a 449cc liquid-cooled Unicam single, SOHC with a four-valve cylinder head, delivering drive through a 5-speed gearbox.

Honda's own confirmed 2023 feature materials detail genuine off-road-specific engineering carried consistently through this range: "built with off-road specific features like dedicated ECU and suspension settings, an 18-inch rear wheel, an aluminum side stand, a large 2.1-gallon fuel tank and hand guards, the championship-proven CRF450RX is ready for the track or trail, which is why it's the motorcycle of choice for a variety of off-road racers, including the SLR Honda and JCR Honda teams." That same source confirms a genuine detail worth knowing about the cylinder head's decompressor system: "the design of the Unicam cylinder head, with the decompressor system's counterweight on the left end of the camshaft, contributes to combustion stability in the extremely low rpm range... and resistance to stalling," with a magnesium cylinder head cover for weight savings.

Motorcyclist's own confirmed 2024 account frames the platform's real update cadence: "this motorcycle entered service in the Americas for the 2017 model year and received its last major overhaul for 2023," with 2024 pricing confirmed at $9,999. Suspension consisted of a twin-tube aluminum frame with a 49mm Showa inverted fork and a Honda Pro-Link swingarm coupled to a Showa monoshock, sharing this fundamental chassis architecture with the closely related CRF450R motocrosser. This exact sixth-generation configuration ran through 2024 before further refinement arrived for 2025.

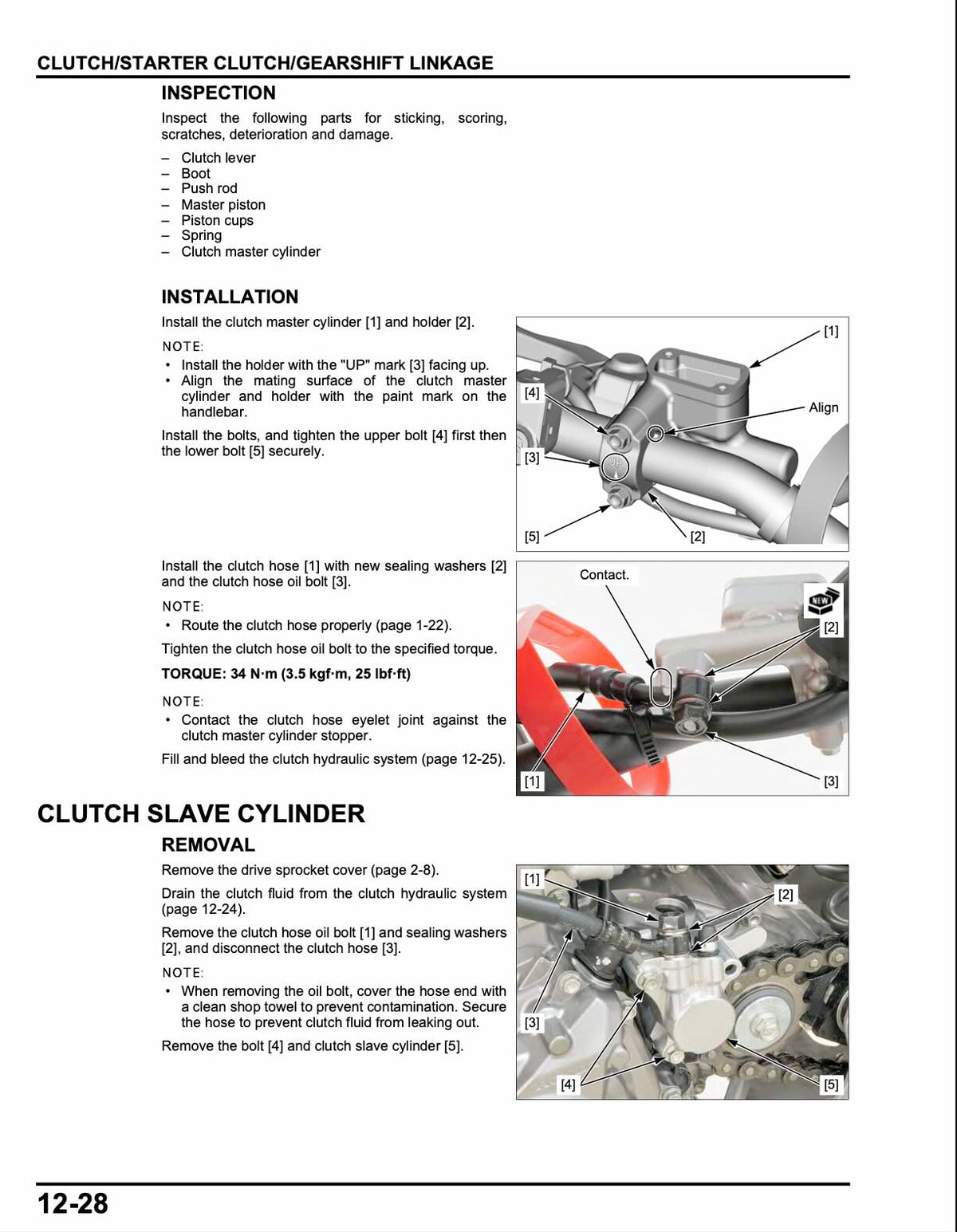

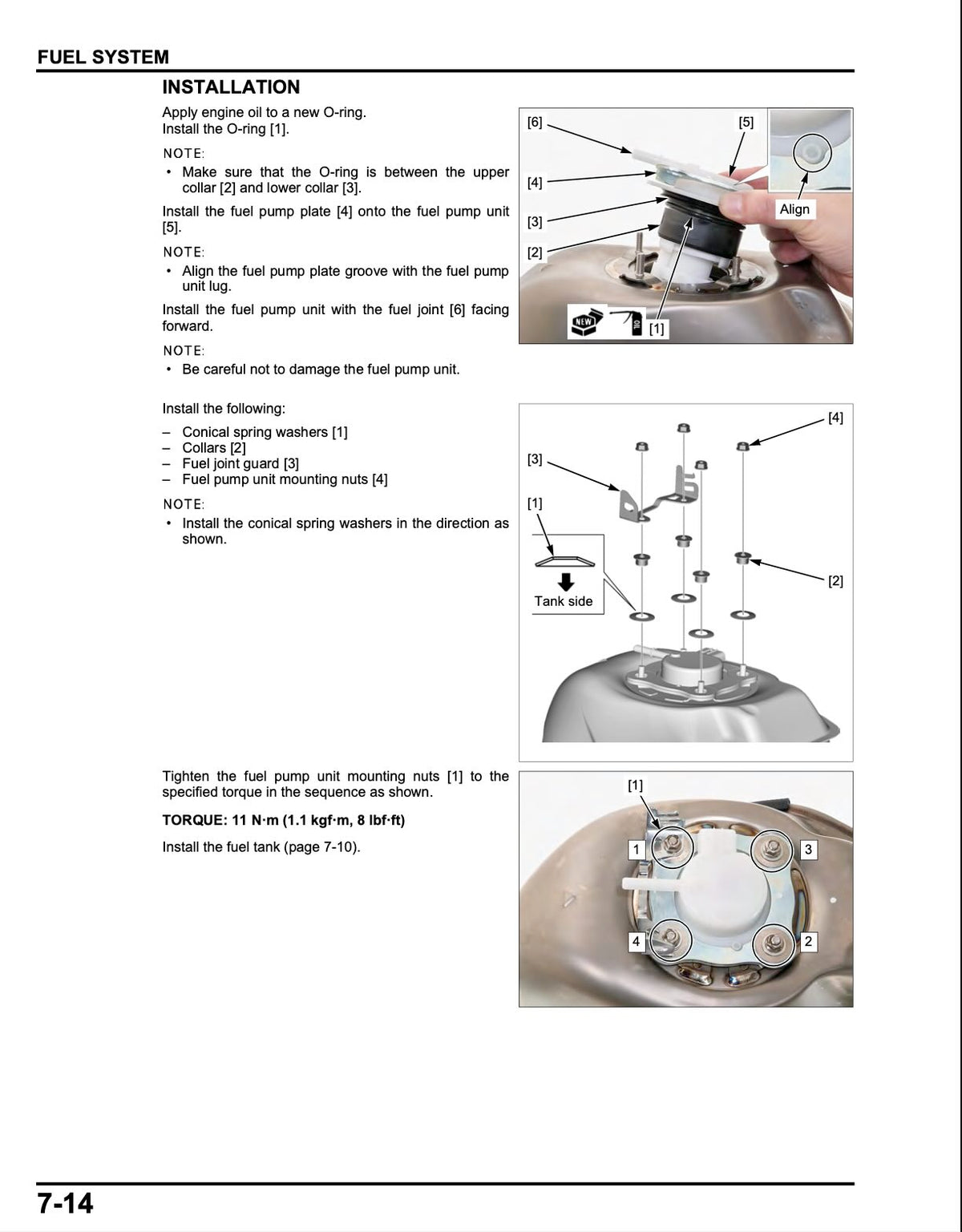

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2021-2024 CRF450RX running the way it was built to.
