Honda CRF300L LA LR LRA 2021-2024 Service Manual

Cycle News' own review confirms the scale of commitment behind this update: "it was nearly 10 years ago when Honda introduced the first CRF250L to the world, and it has proven to be a hit for the company having since sold more than 35,000 units, which includes the CRF250L Rally that made its debut four years later. Honda felt it was time to thank both models by giving them a thorough makeover." Ultimate Motorcycling's own review is refreshingly candid about how much this update actually mattered for the Rally variant specifically: "right up front, I have to admit to not being a fan of the Honda CRF250L Rally. Its styling and name overpromised, making it a less-competent version of the standard CRF250L on the street and dirt... however, the new 2021 Honda CRF300L Rally changes all that. Although it doesn't look like it, it is a virtually all-new, far more capable version, particularly off-road."

Power comes from a 286cc liquid-cooled DOHC single-cylinder engine, a 76mm bore with the stroke lengthened from 55mm to 63mm, delivering a claimed 27-27.3 hp at 8,500 rpm and roughly 19-19.6 lb-ft of torque at 6,500 rpm — Rider Magazine's own coverage confirms this genuine 36.4cc displacement bump was "spurred by Euro 5 emissions standards," achieved through the longer stroke while keeping bore unchanged, with revised camshaft lift and timing specifically targeting the low-to-midrange rpm range where this bike is actually ridden. Cycle News' own testing confirms Honda paired that power gain with genuine weight reduction across the whole range: "both bikes were also put on a hard-core weight-loss program which resulted in each model shedding some 10 pounds" — a real engineering achievement rather than a simple engine swap into the old chassis.

The model naming across this range (L/LA/LR/LRA) reflects Honda's genuine trim and equipment structure: "L" designates the standard CRF300L, "LR" the Rally variant, and the "A" suffix on either indicates ABS equipment — ADV Pulse's own coverage confirms "both bikes can also be ordered with an ABS option, which adds $300 to the MSRP." Rider Magazine's own detailed breakdown confirms the Rally's genuine touring-focused equipment distinguishing it from the standard L: "fuel capacity on the CRF300L is reduced to 2.1 gallons. Meanwhile, the CRF300L Rally features a larger 3.4-gallon fuel tank to accommodate greater range," alongside a windscreen, wrap-around skid plate, flappy hand guards, a larger-diameter front disc brake, and improved LED lighting per ADV Pulse's own coverage. Ultimate Motorcycling's own testing confirms genuine suspension refinement specific to the Rally: "Honda shortened the fork travel by 0.8 inches and the rear-wheel travel by a hair... the action on the CRF300L Rally is greatly improved. It's firmer than the standard CRF300L, adding to the Rally's rally persona" — a deliberate trade-off of ultimate travel for genuinely improved damping quality and control.

Cycle News' own more recent 2024 testing confirms this platform's genuine real-world appeal held up well across its production life: "the CRF300L Rally is one of a kind. There really isn't anything like it... when compared to much larger ADV and rally-styled multi-cylinder bikes, the Rally feels like you are riding a bicycle, and its disc brakes are more than capable," noting real-world range exceeding 250 miles on a tank and comfortable, non-intimidating ergonomics despite a genuinely tall 35-inch seat height. This exact 2021-2024 specification carried through with only detail refinement — new colorways and equipment tweaks — before Honda's more substantial 2025 update brought further suspension and engine calibration changes, per MCN's own coverage of that subsequent generation.

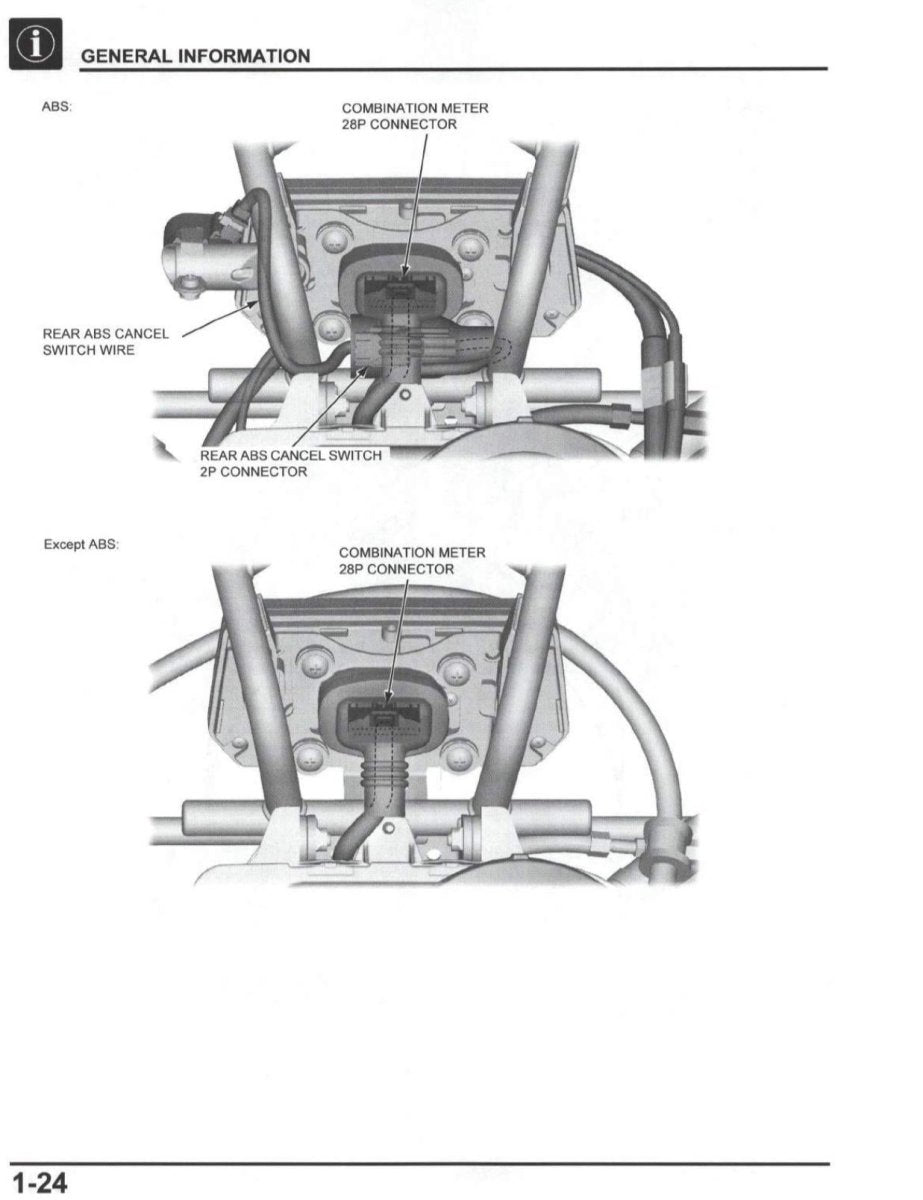

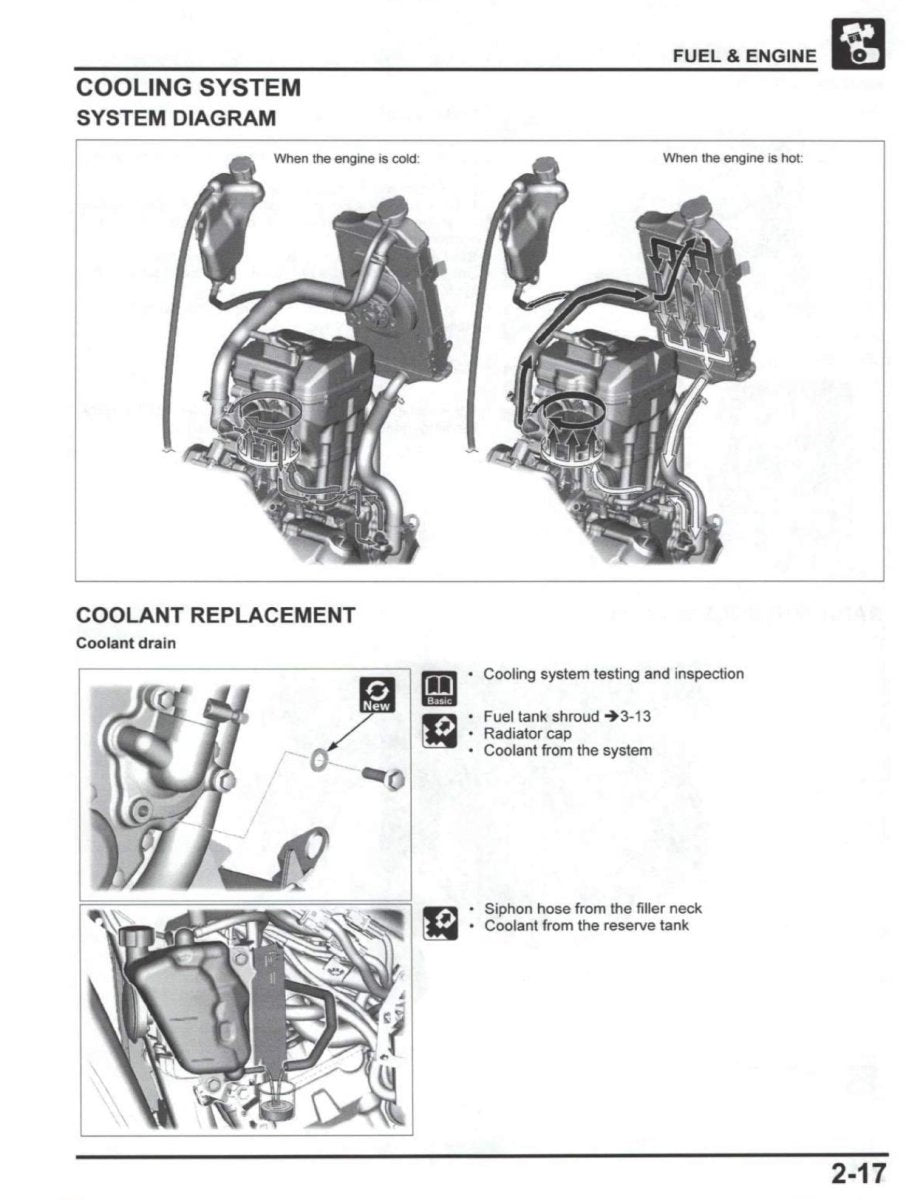

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2021-2024 CRF300L/LA/LR/LRA running the way it was built to.
