Honda CRF250X 2004-2013 Service Manual

Honda's own launch materials from September 2003 introduced this exact bike with genuine ambition: "design the ultimate enduro machine from a blank piece of paper and what do you get? The CRF250X — an off-road bike that cradles Honda's most advanced four-stroke engine technology in a high-tech aluminum frame, and adds the convenience" of electric start. Enduro.team's own detailed platform history confirms the genuine reason this range spans nearly a decade unchanged: "the engine for the Honda CRF250X was largely unchanged from 2004 to 2017... unlike the motocross version, the CRF250X did not undergo major changes and was still equipped with a carburetor power system" — a genuinely deliberate contrast against the frequently-updated, fuel-injected CRF250R motocross sibling launched alongside it.

Power comes from a 249cc liquid-cooled single-cylinder four-stroke engine, Unicam with 4 valves, a 78mm x 52.2mm bore and stroke, and a 12.9:1 compression ratio, fed by a 37mm flat-side carburetor with a Throttle Position Sensor (TPS) — genuinely sophisticated fueling for a carbureted engine, since the TPS lets the ECU adjust ignition timing based on throttle position even without fuel injection. Rick Ramsey's own detailed 2004 launch-day documentation, sourced directly from Honda's own owner's manual, confirms the compression ratio matched the contemporary CRF250R exactly: "the compression ratio is now 12.9:1, the same as the '04-'07 250R," with a seat height of 37.7 inches and ground clearance of 13.6 inches — genuinely identical figures to the motocross sibling despite the X's more off-road-oriented mission.

Autoevolution's own 2004-2005 spec sheet confirms the chassis architecture: a twin-spar aluminum frame with a 47mm inverted, adjustable Showa telescopic fork delivering 315mm of travel, paired with a Pro-Link swingarm and an adjustable Showa shock — genuinely serious, race-derived suspension technology for a bike built to compete in real off-road racing, not just recreational trail riding. Honda's own launch pricing confirms a $5,999-$6,000 MSRP. Standard equipment throughout this entire span included a high-mounted front fender, small side panels, a single seat, a high-mounted exhaust with a silencer cover, a dual-sided swingarm, and wire-spoke wheels with off-road tires — Honda's own 2005 update notes confirmed only "new Honda Race Team-inspired graphics" and "new lightweight rear" components as that year's changes, genuinely minor cosmetic and detail refinement rather than substantive mechanical revision.

Autoevolution's own broader CRF-X coverage confirms genuine racing pedigree earned by riders campaigning this exact platform: "in 2006, 2007, and 2008, Robby Bell won the San Felipe 250 competition" aboard a CRF250X, real competitive validation for a bike built around off-road endurance racing rather than closed-course motocross. Enduro.team's own production timeline confirms this platform reached the Japanese domestic market considerably later than Europe and North America — "the CRF250X has been available there since the end of 2010" — while the fundamental engine and chassis architecture documented here carried forward with only detail updates all the way through 2017, well beyond the 2013 end of your listed range, a genuine testament to how thoroughly Honda's engineers got the original 2004 design right.

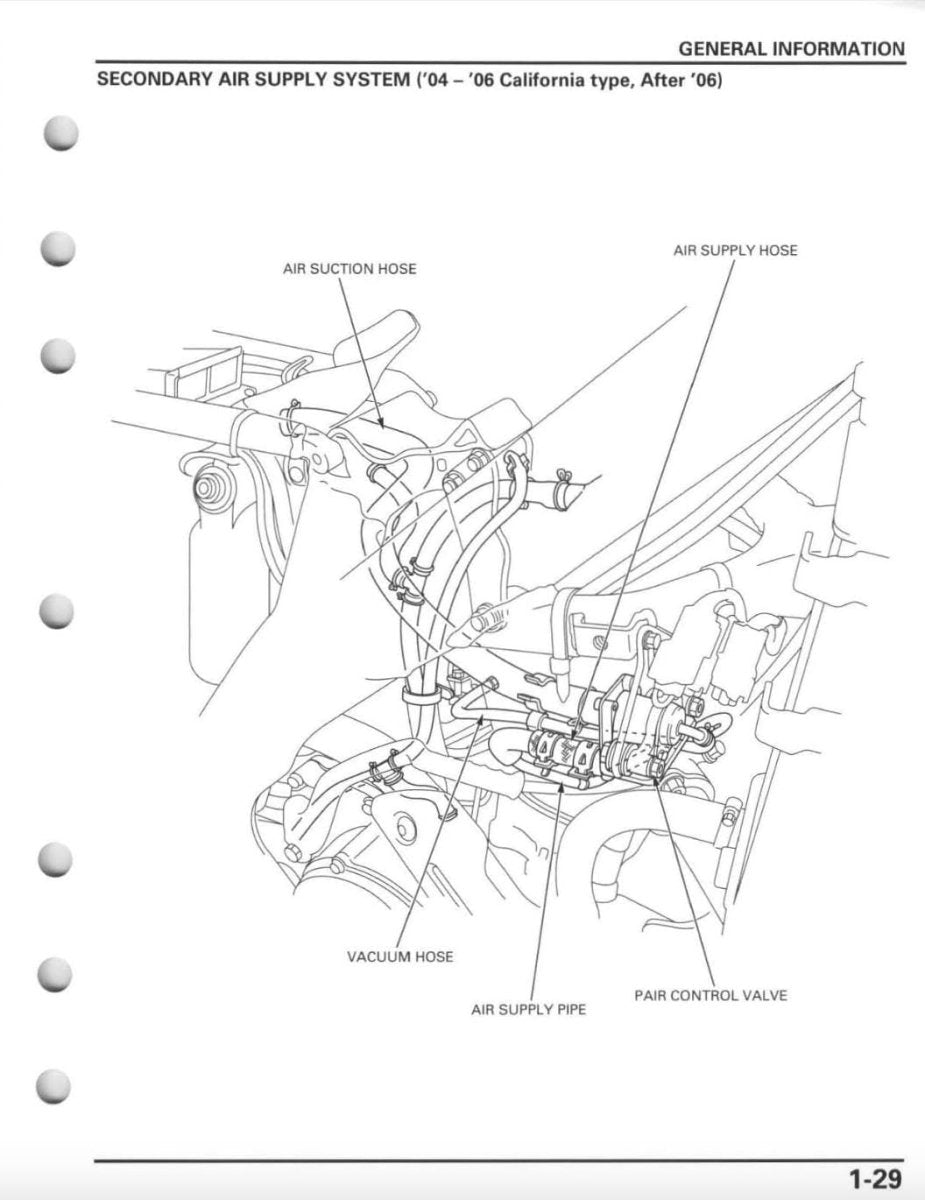

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2004-2013 CRF250X's engine and driveline running the way it was built to.
