Honda CRF250R 2004-2009 Service Manual

Honda's own 2004 launch materials describe the platform's genuine debut ambition directly: "wrap Honda's latest four-stroke engine technology in a fourth-generation aluminum frame, and you create a whole new standard of motocross performance — the 2004 CRF250R." That same launch year established this bike as the genuine four-stroke sibling to the CRF450R, itself introduced two years earlier — Honda's own 2005 update materials frame the philosophy behind the platform's ongoing refinement in one memorable line: "racing improves the breed, which means this class-leading front runner enters 2005 with a host of new features plus a lighter weight."

Power throughout this entire 2004-2009 span comes from a 249cc liquid-cooled single-cylinder four-stroke engine, Unicam with four valves, a 78mm x 52.2mm bore and stroke — genuinely the same fundamental dimensions across the whole range, with compression ratio climbing incrementally year over year as Honda refined the combustion chamber: 12.5:1 for the 2005 model, rising to 12.9:1, then 13.1-13.2:1 by 2008-2009, per Honda's own official specification releases. This entire generation ran carburetion rather than fuel injection — Vital MX's own first-look coverage of the 2009 model confirms genuine detail refinement continued right up to the final carbureted year: "new cylinder-head combustion chamber shape improves power in the lower- to mid-RPM range. New longer exhaust header is tuned to work in conjunction with the new cylinder head for improved power... new four-dog transmission gears, revised shift drum and shift drum arm produce more positive shifting."

Autoevolution's own detailed year-by-year account confirms this range genuinely saw very little structural change once the fourth-generation aluminum frame was established at launch — the 2008-2009 and 2009-2010 model years "packed the same technical, visual, and performance specifications as the previous one without any significant changes," with suspension staying consistent throughout: a 47mm inverted Showa cartridge-type adjustable fork delivering 315mm of travel, paired with a Pro-Link swingarm and adjustable Showa shock offering matching 315mm travel. Braking used a single 240mm front disc with a two-piston caliper and a 240mm rear disc with a hydraulic caliper. Standard equipment across every year in this range included a high-mounted front fender, a single seat, a high-mounted dual-muffler exhaust system, a dual-sided swingarm, no lighting whatsoever (a genuine closed-course competition machine, not a street-legal dual-sport), and wire-spoke wheels with off-road tires.

The genuinely closely related CRF250X enduro variant, launched the same 2004 model year, shared essentially the entire foundation of this platform — Honda's own development materials confirm the two bikes are "fraternal twins," sharing the "fourth-generation aluminum frame, ultra-trick four-valve 249cc Unicam engine, 47mm Showa twin-chamber fork and Pro-Link single-shock rear suspension." Wikipedia's own timeline note on the related CRF450R confirms the wider industry context this generation sat within: fuel injection didn't arrive on Honda's 250-class motocross platform until the 2010 model year, meaning this exact 2004-2009 span represents the complete, final chapter of the original carbureted CRF250R before Honda's Programmed Fuel Injection (PGM-FI) system, a new twin-spar frame, and the Honda Progressive Steering Damper arrived together on the substantially reworked 2010 model.

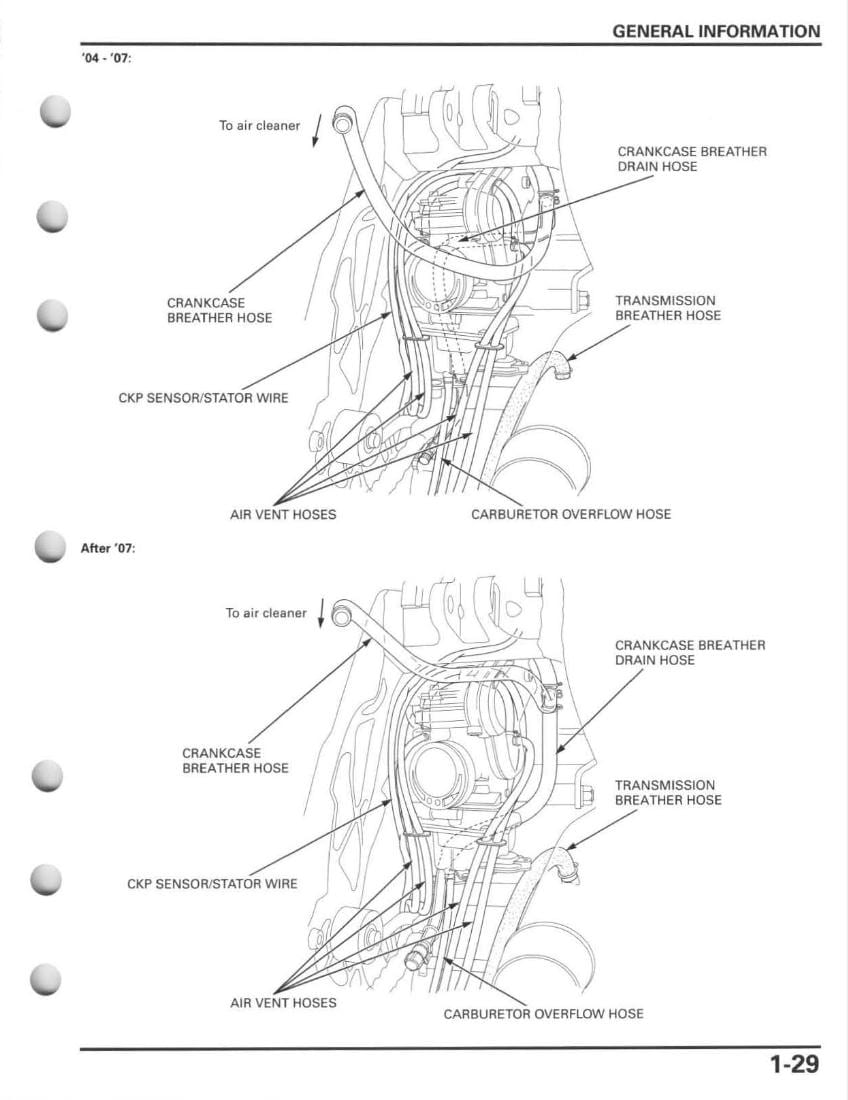

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2004-2009 CRF250R's engine and driveline running the way it was built to.
