Honda BF8A BF75 BF100 Outboard Engine Service Manual

Honda's own factory documentation confirms these three engines belong together as a single service reference — the BF75 (7.5hp), BF100 (10hp), and BF8A share enough underlying construction that Honda's manual, now in its Third Edition (2014, P/N 6188224E3), covers all three with dedicated supplement sections layered onto shared core chapters. This is genuinely a family of small, portable four-stroke outboards built for tenders, dinghies, and light-duty fishing and utility boats rather than the larger mid-range engines Honda also sells under overlapping displacement naming.

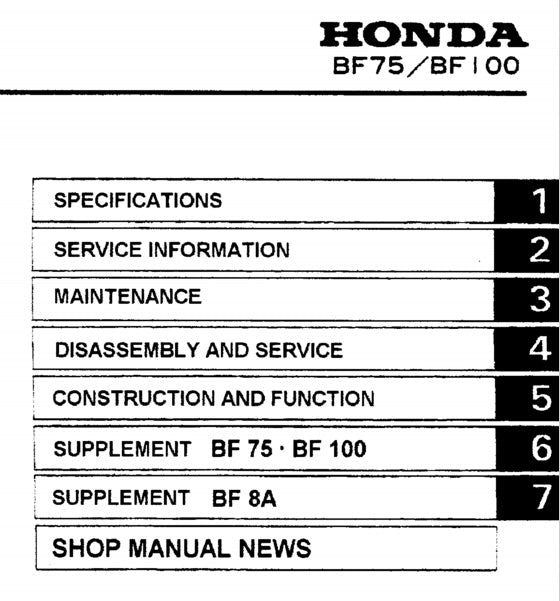

The manual's structure reflects the genuine mechanical overlap between these engines: Specifications, Service Information, Maintenance, Disassembly and Service, and Construction and Function chapters apply broadly across the family, with dedicated Supplement BF75/BF100 and Supplement BF8A sections addressing the specific differences between the smaller twin-model pairing and the BF8A's own configuration. Honda's own manual documents each model across multiple variants: BF75 in SA and LA (shaft length) configurations, BF100 in SA and LA, and BF8A across SA, LA, and XA — genuinely important distinctions for correct transom fit, since mismatched shaft length remains one of the most common installation mistakes on small portable outboards.

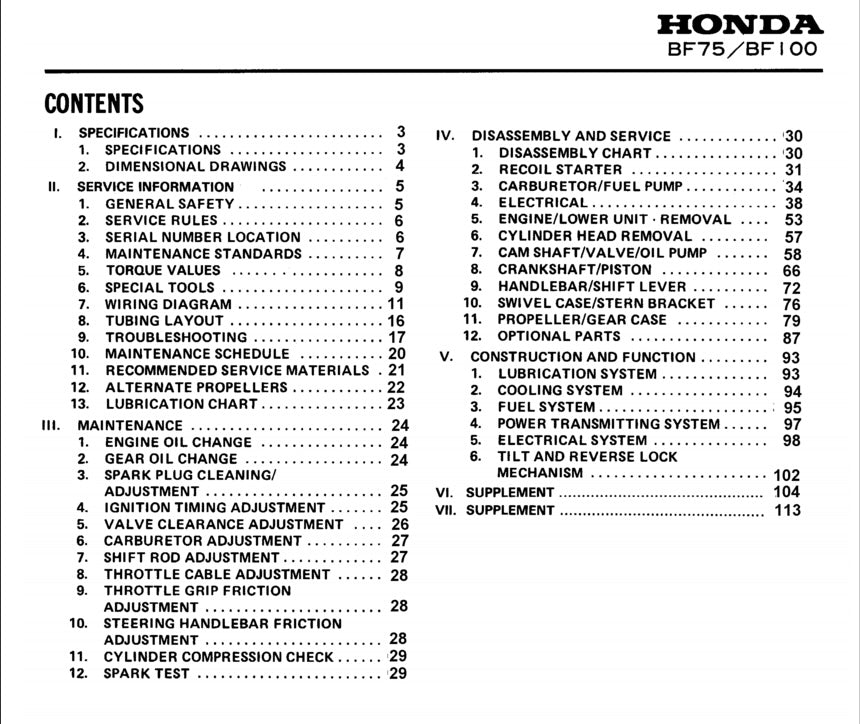

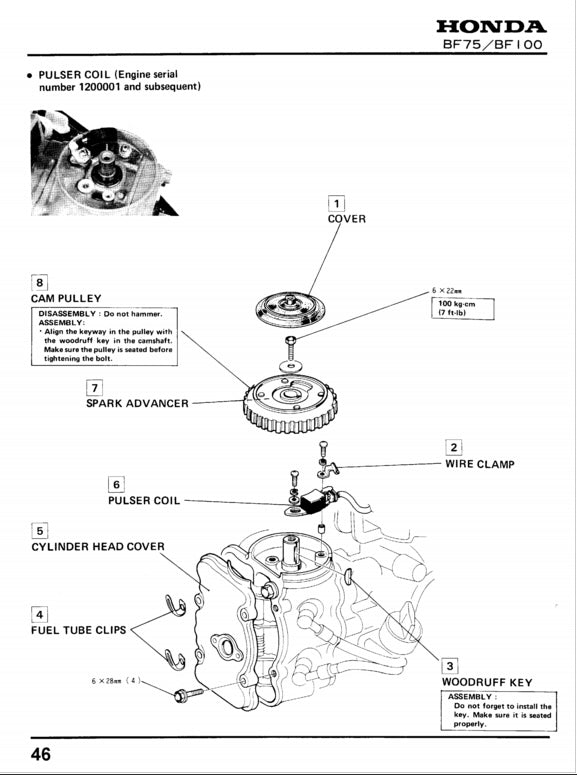

Correct model and serial-number identification matters more with this family than most, given how many overlapping frame prefixes and revisions exist across Honda's small-outboard history: the BF75 (7.5hp) covers frame serial numbers BF75-1000002 through 9999999, the BF100 (10hp) spans BF100-1000001 through 9999999 (with an older B100-prefix range also documented), and the BF8A covers BACL/BACS/BACU-1000001 through 9999999 as well as a separate BZBC-1300001 through 9999999 block — evidence of a genuinely long production run with multiple running changes along the way. The manual itself covers dimensional drawings, general safety and service rules, serial number location, maintenance standards and torque values, special tools, wiring and tube routing diagrams, a full troubleshooting section, and a complete disassembly chart spanning the recoil starter, carburetor and fuel pump, electrical system, cylinder head removal, camshaft/valve/oil pump service, crankshaft and piston work, and the swivel case, stern bracket, and propeller/gear case — genuinely comprehensive coverage for engines built to be field-serviceable by owners and independent mechanics alike.
