Honda BF75A BF90A Outboard Service Manual

Honda BF75A BF90A Outboard Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Honda BF75A BF90A Outboard Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 354 pages in English Language, it is the only manual you will require to maintain, repair and service your Honda BF75A BF90A Outboard.

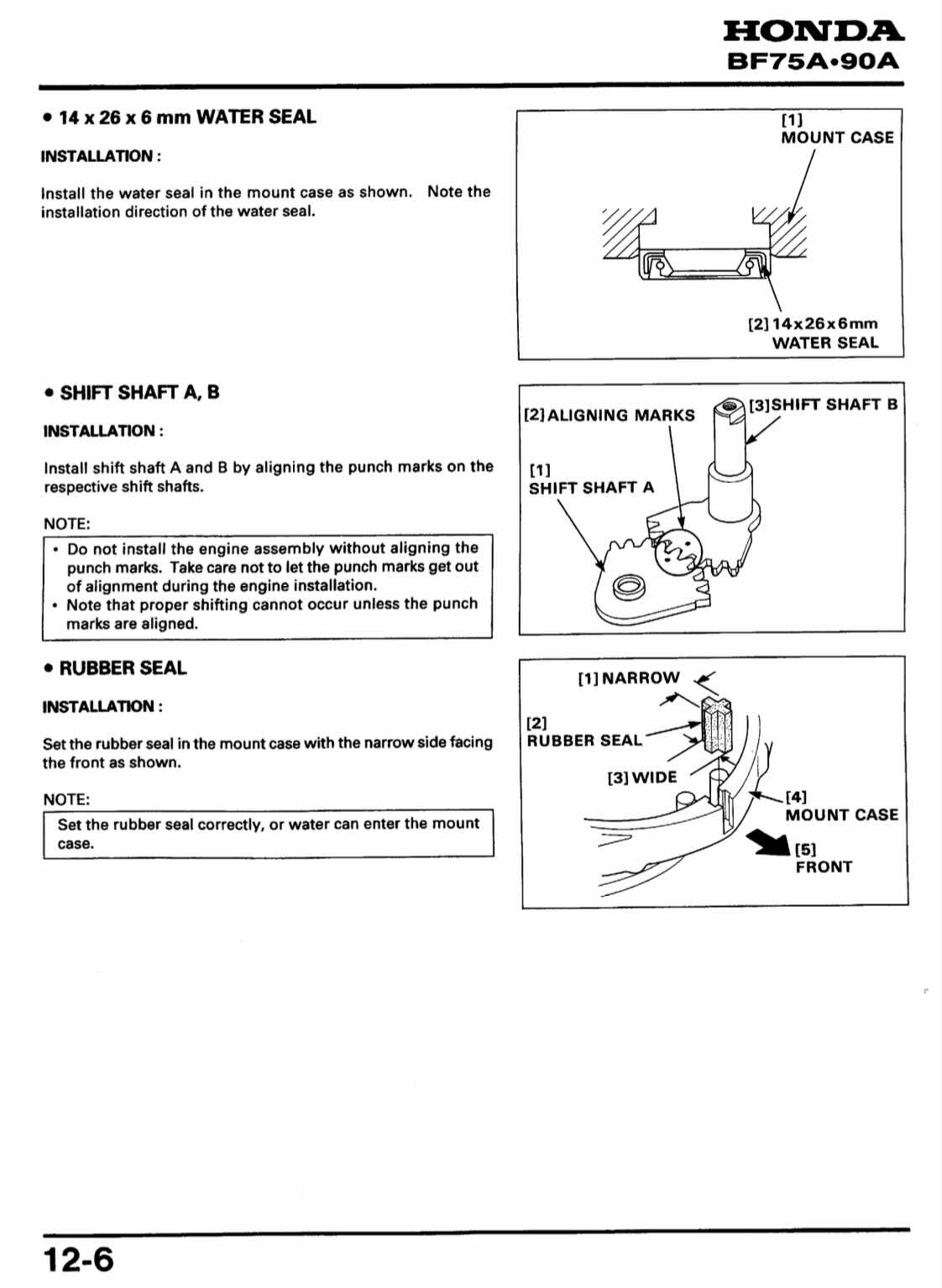

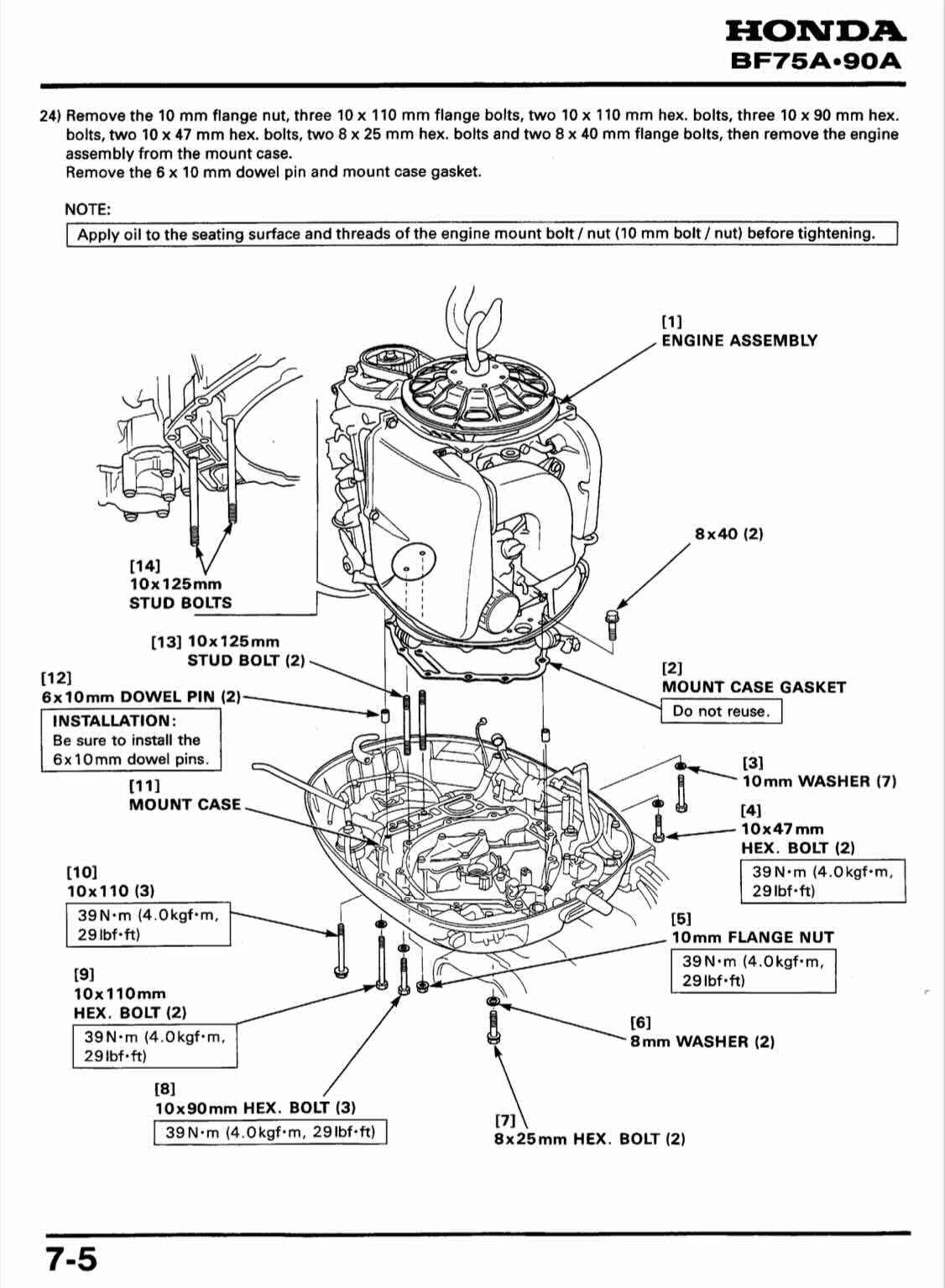

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: specifications, service information, maintenance, engine cover/throttle/choke, fuel system, alternator/timing belt, engine removal/installation, water jacket cover/thermostat/thermoswitch, cylinder head/valves/oil pump, crankcase/cylinder block/crankshaft/piston/flywheel, propeller/gear case/extension case, oil pan/engine undercase/mount case, swivel case/power trim/tilt assembly/gas assisted assembly, steering rod/remote control box (remote control type only), steering friction shaft/tiller handle (tiller handle type only), cables/shift link bracket/shift arm, electrical equipment, wiring diagram, supplement

Suits Models:

  • BF75A
  • BF90A

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

BF75A / BF90A: Honda's Carbureted 1.6-Litre Four, Retired in 2006 for a Fuel-Injected Replacement

The BF75A and BF90A were Honda's long-running mid-range four-stroke outboards, rated at 75 and 90 hp. They were based on the engine from the 1.6-litre Honda Civic, a 1,590cc inline-four. Unlike the models that replaced them, they were carbureted, with one carburetor per cylinder. Their flywheel alternator was rated at about 20 amps, which later became a limit as boats added electronics.

Honda replaced them in September 2006 with the BF75D and BF90D, which are based on the 1.5-litre engine from the Honda Fit. That engine is 94cc smaller, at 1,496cc, and adds Programmed Fuel Injection, a VTEC valve train on the BF90D and a 44-amp alternator, with up to 35 amps for dedicated battery charging. Honda claimed about 20 percent better fuel economy. A 2005 BF90A and a 2006-onward BF90D can look similar on the transom, but their fuel systems, electrics and many engine parts differ.

Because parts and procedures differ between the A and D series, confirm the model suffix on the engine's serial plate (BF90A versus BF90D) before ordering parts or working from a manual. The A-series carburetors, ignition and charging system have their own specifications, and the later D-series fuel-injection procedures don't apply to them.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Honda BF75A/BF90A outboard running the way it was built to.
