Dr. E Manuals

Honda BF175A BF200A BF225A Service Manual

Honda BF175A BF200A BF225A Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Honda BF175A BF200A BF225A Outboard Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 534 pages in English Language, it is the only manual you will require to maintain, repair and service your Honda BF175A BF200A BF225A Outboard.

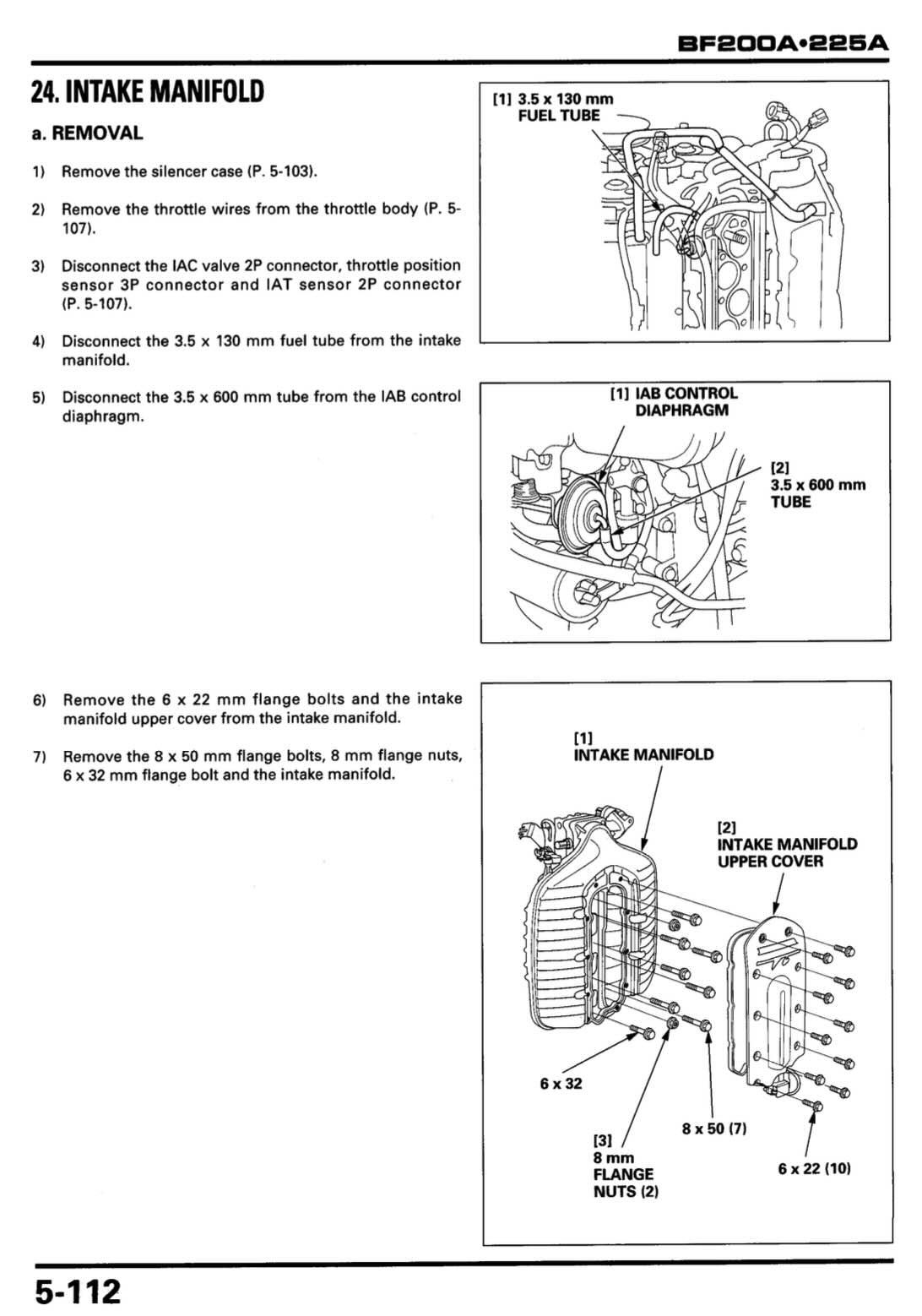

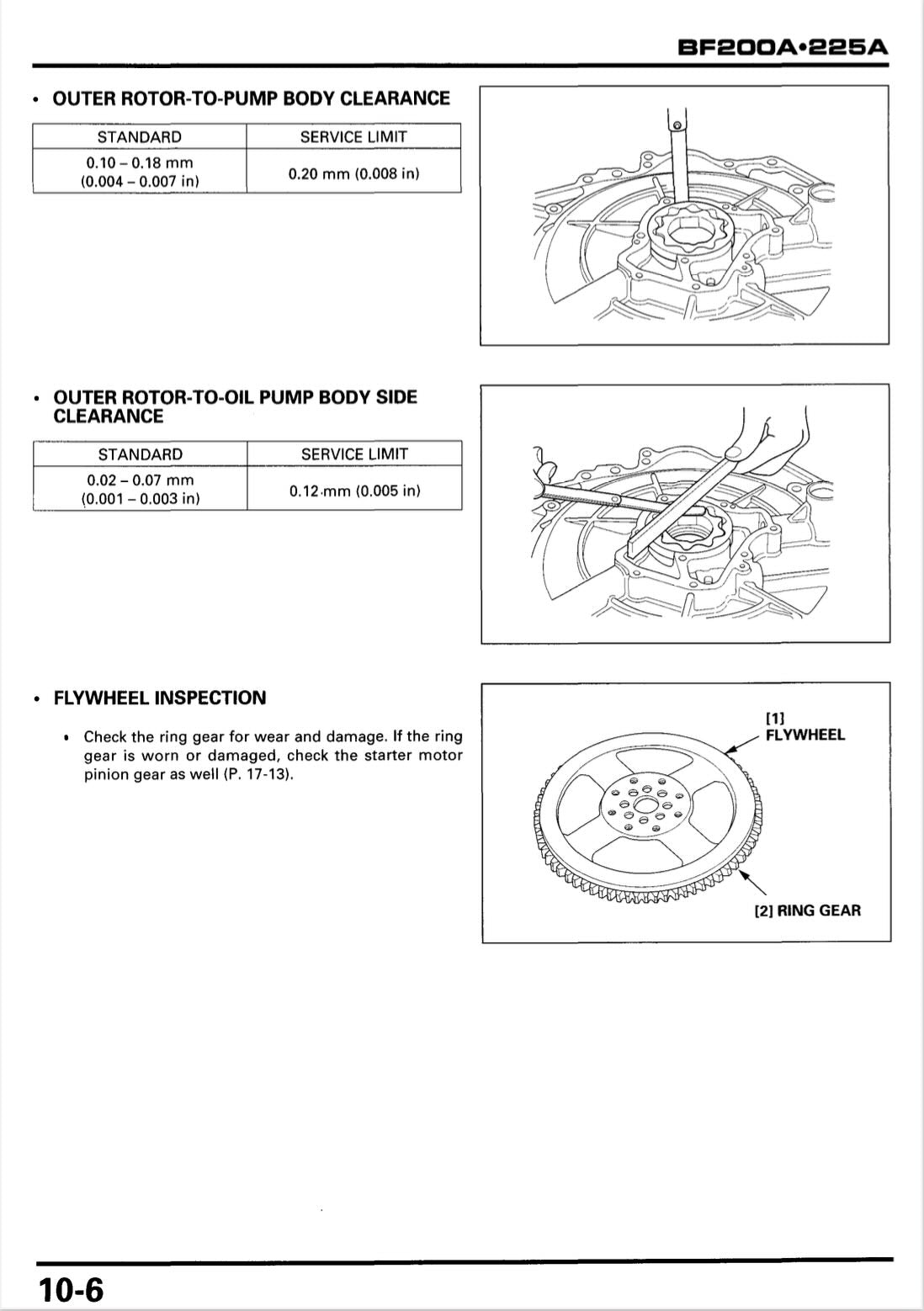

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: specifications, service information, maintenance, engine cover/cover lock, programmed-fuel injection, alternator/timing belt, engine removal/installation, water jacket/relief valve/flush valve, cylinder head/valves, flywheel/oil pump, cylinder block/crankshaft/piston, propeller/gear case/extension case, oil pan/mounting case, swivel case/power trim/tilt assembly, steering rod/remote control box, cables/shift link bracket/shift arm, electrical equipment, operation, wiring diagram

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

BF175A/BF200A/BF225A: A 60-Degree V6 Borrowed Straight From the Acura MDX Parts Bin

Honda's own confirmed marine materials describe the genuine automotive lineage behind this engine directly: a 24-valve, six-cylinder design delivering "all the durability and performance of the smooth-running Honda Acura MDX it was based on" — in a narrow, sixty-degree V profile outboard. That shared architecture is exactly why Honda's own factory documentation treats the BF175A as a base-manual derivative of the BF200A/225A rather than issuing it separately.

Power comes from a 3,471cc (211.7 cu in) 4-stroke SOHC 6-cylinder V6, an 89mm x 93mm bore and stroke, a 9.4:1 compression ratio, fed by Programmed Fuel Injection with a MicroComputer-controlled ignition system, delivering a claimed 200 hp on the BF200A and 225 hp on the BF225A — the BF225A specifically rated at 165.5 kW with 295 N·m (217.7 lb-ft) of maximum torque — at a full-throttle range of 5,000-6,000 rpm. Honda's own confirmed feature list highlights a dual-stage induction variable intake system using a plenum chamber with twin butterfly valves to precisely control intake air volume, plus VTEC on the higher-output BF225A for genuinely explosive throttle response.

Standard equipment across both models includes a 60-amp (756-watt) alternator, power trim and tilt, oil pressure and temperature alerts, a rev limiter, a speedometer pickup, a Fresh Water Flushport for flushing salt and debris after use, and a Built-In Pitot Tube in the gear case that eliminates drilling a separate speedo-pickup hole in the boat's hull.

Honda's own confirmed shaft-length matrix lists L (508mm/20.0in), X (635mm/25.0in), and XX (762mm/30.0in) transom height configurations, available in both standard and counter-rotating propeller shaft versions for genuine twin-engine installations, with a trim range of -4° to 16° across a stageless tilt range up to 68°. Dry weight on the BF225A comes in at 595 lbs with the propeller mounted, 589 lbs without.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Honda BF175A/BF200A/BF225A outboard running the way it was built to.
