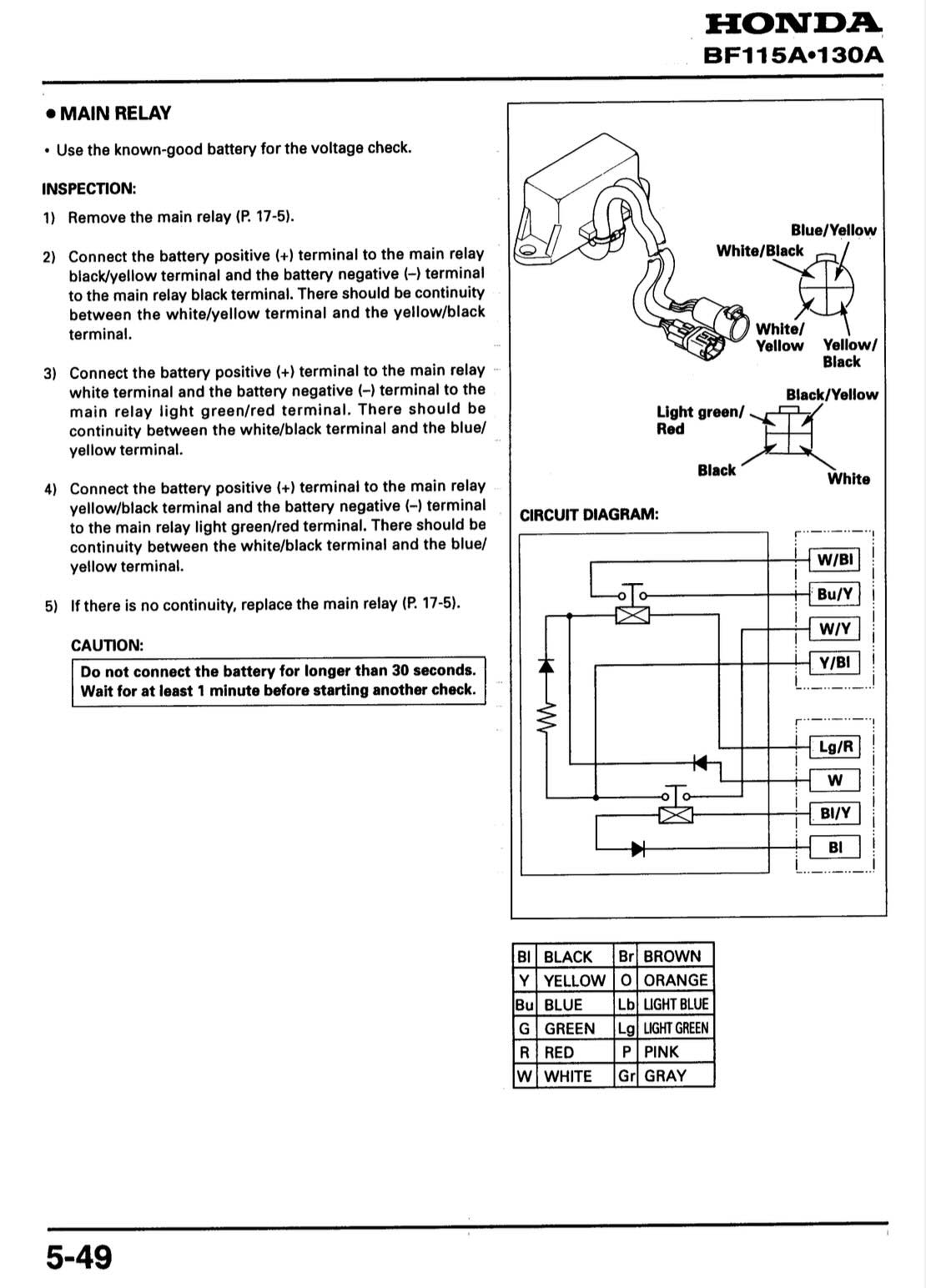

  • A Honda main relay circuit diagram and inspection guide page, showing a relay connection diagram, wiring instructions, and a color reference table on a white background.

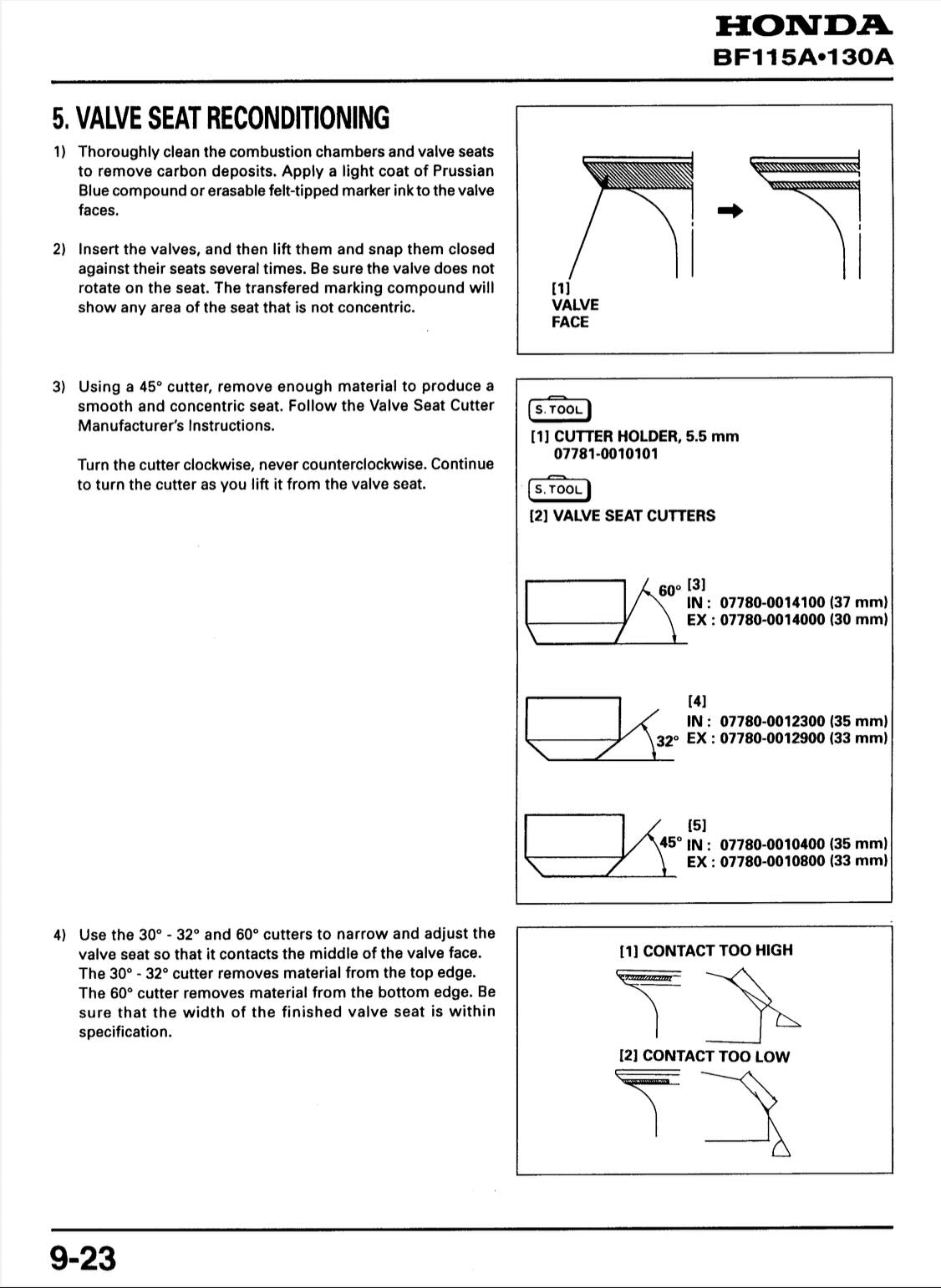

  • A black and white technical instruction sheet for Honda valve seat reconditioning, showing diagrams, measurements, and step-by-step instructions with part numbers and labels.
1 4

Dr. E Manuals

Honda BF115A BF130A Service Manual

Honda BF115A BF130A Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Honda BF115A BF130A Outboard Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 431 pages in English Language, it is the only manual you will require to maintain, repair and service your Honda BF115A BF130A Outboard.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: specifications, service information, maintenance, engine cover/timing belt upper cover, programmed fuel injection (pgm-fi), alternator/balancer belt /timing belt, engine removal/installation, water jacket cover/thermostat/pressure valve, cylinder head/valves, flywheel/oil pump, balancer shaft/crankcase/crankshaft/piston, propeller/gear case/extension case, oil pan/engine undercase/mounting case, swivel case/power trim/tilt assembly, steering rod/remote control box, cables/shift link bracket/shift arm, electrical equipment, operation, wiring diagram

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

BF115A/BF130A: Honda's Genuine "World's First" — The Largest Four-Stroke Outboard Class of Its Era

Honda's own confirmed 1998 press release doesn't undersell the milestone this exact engine represented: "Honda Motor Co., Ltd. introduced today the world's first two large capacity 4-stroke outboard motors meeting the Marine Engine Emission Standards set for the year 2006 by the Environmental Protection Agency of the United States. The BF115 and BF130 incorporate very economical, durable 4-stroke engines rated at 115PS and 130PS respectively." That same release confirms the engineering philosophy behind the whole family: "developed under the concept 'human- and environment-friendly, economical 4-stroke engines of high quality.'"

Power comes from a 2,254cc four-stroke inline-four, SOHC with 16 valves, a centrally located ignition plug, and a long-port inlet manifold specifically engineered for improved combustion efficiency — Honda's own release confirms genuine engineering-first status: "adoption of electronic Programmed Fuel Injection for the first time in large displacement" outboards from Honda. ManualsLib's own confirmed factory specification page lists a genuinely precise tune-up reference: spark plug gap at 0.028-0.031 in (0.70-0.80mm), idle speed at ±50 rpm from spec, and cold valve clearance set at 0.26mm intake and 0.30mm exhaust, each ±0.02mm — "no other adjustments needed" per Honda's own manual.

ManualsLib's own confirmed feature notes a genuinely useful operational distinction over older carbureted Honda outboards: "the fast idle lever is only needed for starting carbureted outboard models. The BF115A and BF130A models use programmed fuel injection so, this lever will not be needed for starting" — though it remains available to speed cold-weather warm-up below 41°F (5°C).

Honda's own confirmed factory manual documentation (P/N 61ZW500E6, running 502 pages) lists both electric-start and manual-start alternator options — 12 AMP electric or 6 AMP manual — plus counter-rotation variants available on the 115/130 alongside the larger BF200/BF225. Honda's own confirmed frame serial number ranges list BF115A under prefixes BZBD/BZBG and BF130A under BZBE/BZBH, both spanning 1000001 through 9999999 — genuinely important reference for confirming which specific manual edition matches a given engine, since Honda issued at least one supplement (P/N 66ZW500Z, dated March 2002) covering later production running changes within this same model family.

This factory service manual covers the construction, function, and servicing procedures needed to keep a Honda BF115A/BF130A outboard running the way it was built to.
