Harley Davidson XL1200V Sportster Seventy-Two 2012 Service Manual

TFLcar's own review confirms exactly where this bike's genuinely unusual name comes from — and clears up a real point of common confusion: "the 72 reference has nothing to do with a time frame, but rather draws inspiration from, and pays homage to a stretch of Whittier Boulevard, a legendary cruising street in East Los Angeles also known as Route 72." That same review confirms the deliberate design lineage this bike was built to evoke: "the Sting-Ray's sported banana seats and ape-grip handlebars along with and a raked-out front end. They were created in the spirit of the chopper motorcycles and encouraged individual customizing and personalization. The motorcycle versions were colorful, stripped down bikes, sprayed with metal flake paint and loaded with chrome, but reflecting the simplicity of bicycles — a custom style born in California. The 2012 Harley-Davidson XL1200V Sportster 72 displays a perfect example of the genre."

Power comes from the air-cooled Evolution V-twin, 1,202cc, OHV with 4 valves and Electronic Sequential Port Fuel Injection, delivering a claimed 73 lb-ft (99 Nm) of peak torque at 3,500 rpm through a genuine 5-speed sequential manual transmission. Total Motorcycle's own confirmed factory feature list notes a genuinely thoughtful mechanical touch: "rubber-mounted powertrain to reduce vibration" — real isolation engineering for a bike positioned as an easy, everyday cruiser rather than a pure show machine.

TFLcar's own detailed account confirms the genuinely elaborate paint process behind this launch-year model's signature colorway: "metal flake is back in a big way on the Seventy-Two with a shade called Hard Candy Big Red Flake. The finish is created by first spraying on a black base coat, and then applying a polyurethane system carrying hexagon-shaped flakes that are seven times larger than in traditional production flake paint. Each flake is coated with a thin aluminum film" — genuinely period-correct, deliberately oversized metal-flake technique specifically chosen to recreate the look of authentic 1970s custom paint jobs rather than a modern, more restrained metallic finish. Motorcycle USA's own confirmed 2012 launch specification details the powertrain's finish treatment further: "the powertrain is finished in Gray powdercoat with chrome covers and a new round air cleaner with a dished cover" alongside "a solo seat and side-mounted license plate bracket" that deliberately leave "much of the chopped rear fender — and more of that paint — exposed."

Total Motorcycle's own confirmed feature list for this exact launch-year model confirms genuine standard equipment: a classic Sportster 2.1-gallon peanut fuel tank, narrow whitewall tires, chrome laced wheels, a high mini-ape handlebar, a chrome staggered shorty dual exhaust with slash-cut mufflers, and disc brakes — with an optional factory-installed Harley-Davidson Smart Security System offering hands-free, proximity-based security available at extra cost. Autoevolution's own confirmed technical specification lists this exact configuration alongside the closely related 2011 model year, sharing identical engine and drivetrain architecture across both years of this platform's earliest production. This 2012 model year represents the Seventy-Two's genuine second production year, carrying the same fundamental 1,202cc Evolution engine, 5-speed gearbox, and lace-spoke, mini-ape-bar styling introduced when the model debuted for 2011.

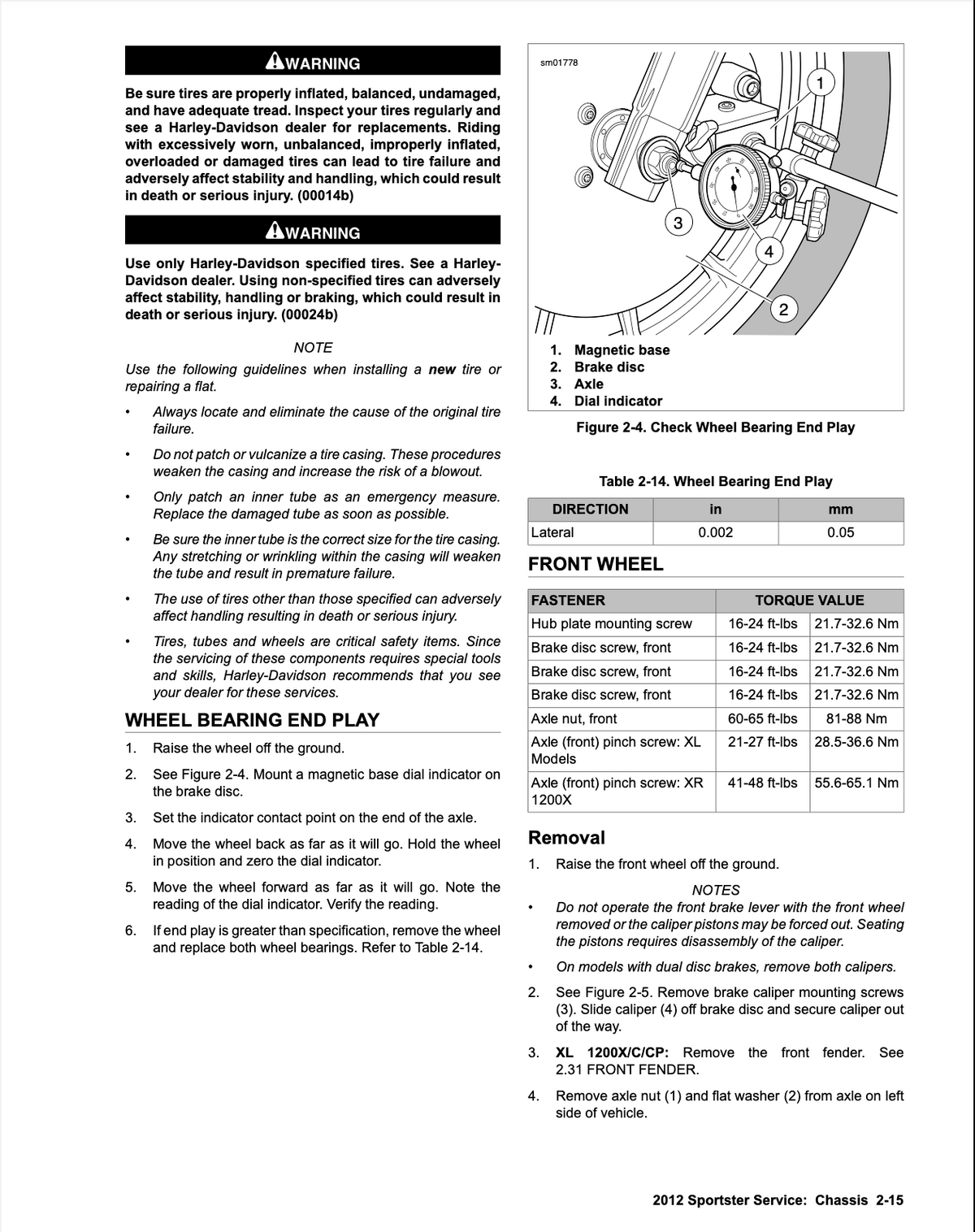

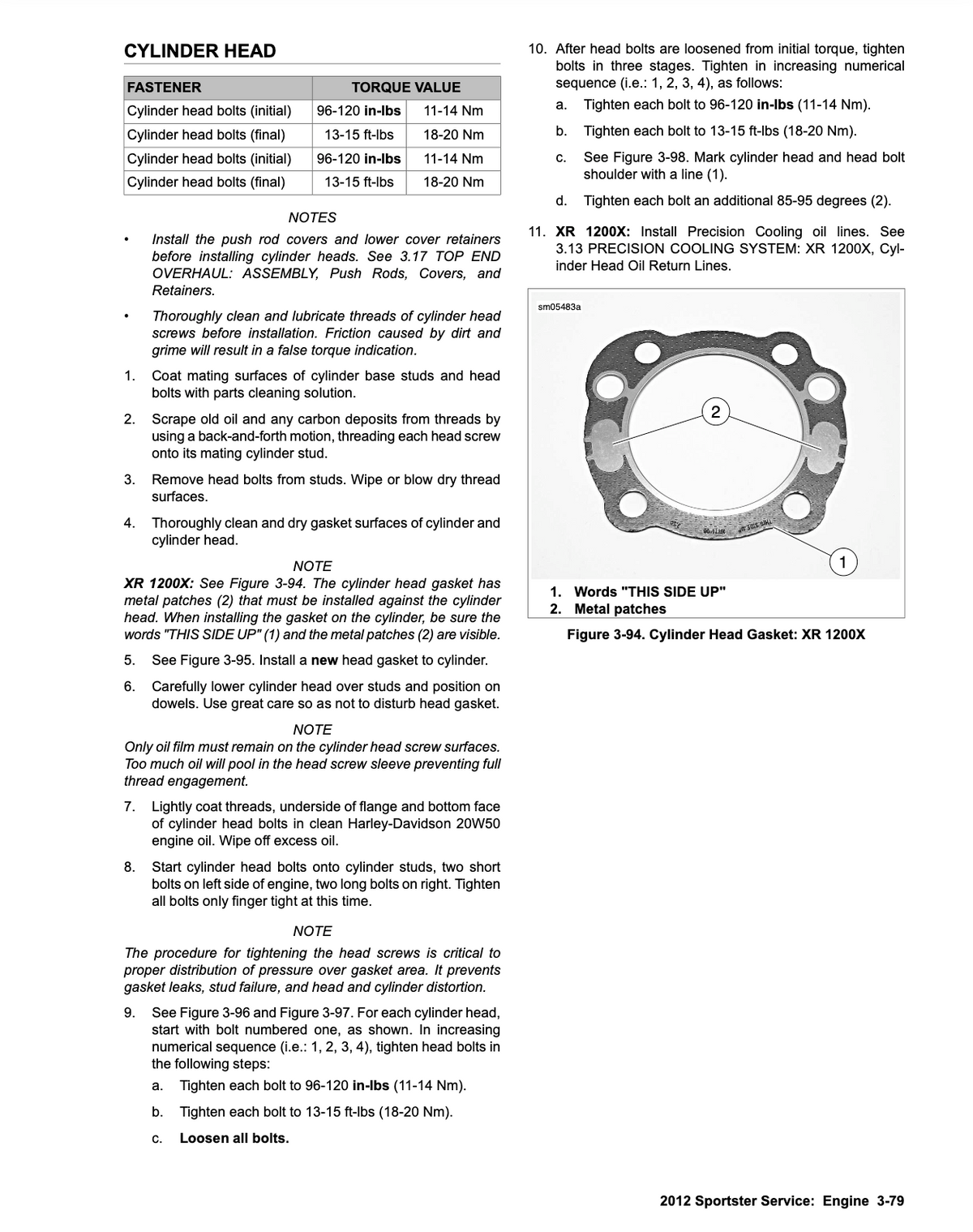

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2012 Sportster Seventy-Two XL1200V running the way it was built to.
