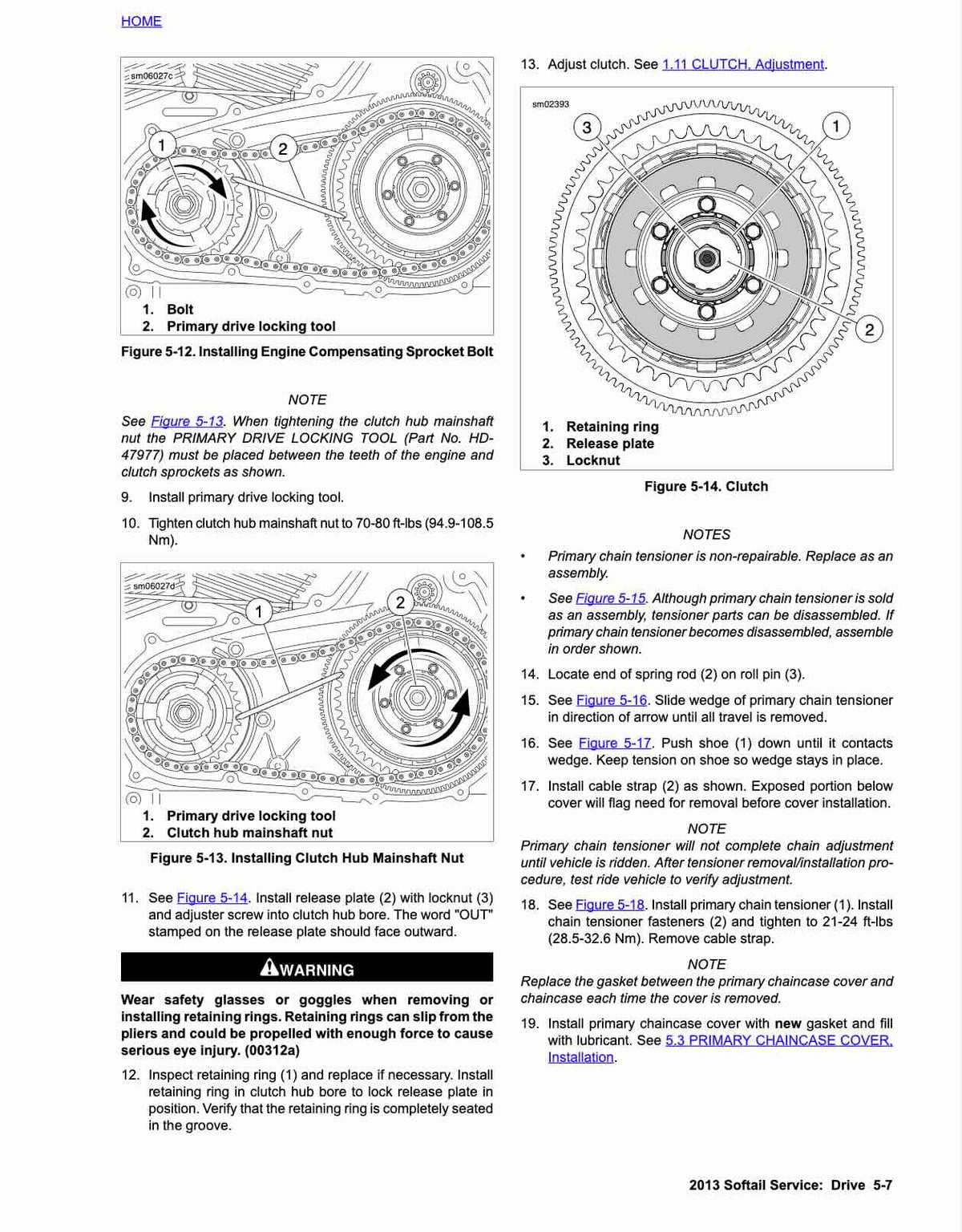

  • Harley-Davidson 2013 Softail service manual page 5-7 with engine compensating sprocket bolt installation, clutch hub mainshaft nut procedure using primary drive locking tool, clutch diagram showing retaining ring and release plate, primary chain tensioner diagram and adjustment, torque specifications for clutch hub nut 70-80 ft-lbs

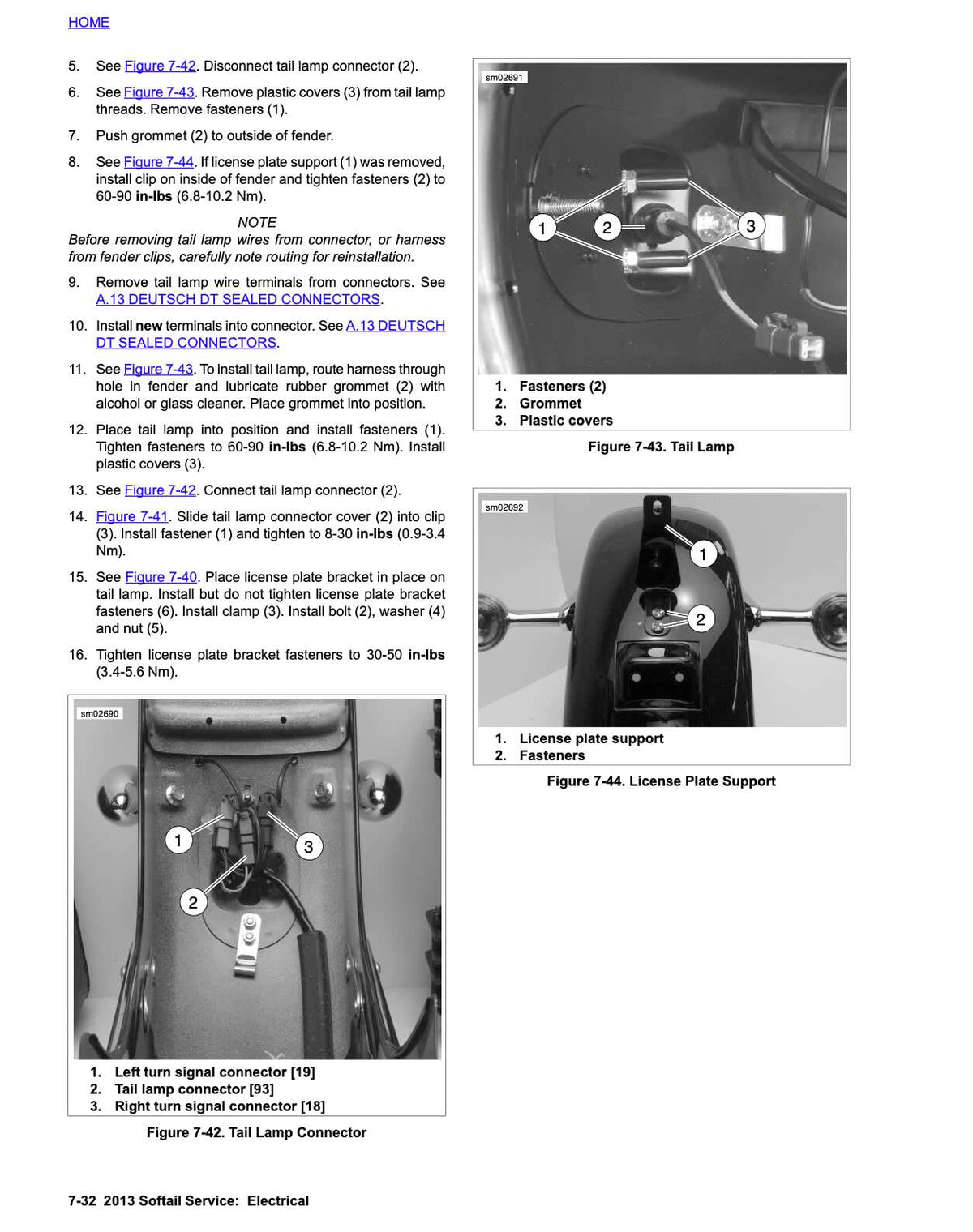

  • Harley-Davidson 2013 Softail service manual page 7-32 electrical section with tail lamp connector diagram showing left and right turn signal connectors, tail lamp assembly with fasteners and grommet installation, license plate support bracket with fastener torque specifications 30-50 in-lbs, and connector routing procedures
1 4

Dr. E Manuals

Harley Davidson FXS Softail Blackline 2013 Service Manual

Harley Davidson FXS Softail Blackline 2013 Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Manual Type

2013 Harley Davidson FXS Softail Blackline Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 1524 total pages in English Language including a service manual and electrical diagnostic manual, it is the only manual you will require to maintain, repair and service your Harley Davidson FXS Softail Blackline.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Suits Models from 2013

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Softail Blackline FXS (2013): "The Rider Hugs the Frame on the Lowest Two-Up Seat Offered by Harley-Davidson"

Total Motorcycle's own product copy describes the Blackline's whole design brief directly: a Softail pared to the bone, combining visual elements of the original bobber movement with a raw style embraced by today's young bike builders. The rear fender is bobbed high-and-tight over a slim 144mm tire that emphasizes an authentic hardtail profile, while minimal tank graphics and a narrow back end let the Twin Cam 103 V-twin and fuel tank steal the show. This exact 2013 model year also introduced Hard Candy Custom paint as a new option — a large metal-flake finish available in Hard Candy Coloma Gold on the Blackline specifically.

Power comes from the air-cooled Twin Cam 103B, a 1,690cc V-twin with a 3.875-inch bore and 4.38-inch stroke and a 9.6:1 compression ratio, fed by Electronic Sequential Port Fuel Injection (ESPFI), delivering a claimed 133.8 Nm (98.7 lb-ft) of torque at 3,250 rpm through a chain primary drive (34/46 ratio) and 6-speed transmission with belt final drive.

Confirmed dimensions list a 30-degree rake with 4.8 inches of trail on a 66.5-inch wheelbase, a genuinely low 24-inch laden seat height (26.1 inches unladen), and 5.25 inches of ground clearance — riding on an MH90-21 front tire and MU85B16 rear, reached via a new Split Drag handlebar set high above the low, narrow two-up seat. A 5-gallon fuel tank and 3.5 quarts of oil (with filter) round out the fluid capacities, with a shipped weight of 648 lbs rising to 675 lbs in running order.

2013 US pricing started at $15,599. This exact FXS Blackline configuration ran from its 2011 introduction through 2013, closing out its production run before Harley's 2014 lineup changes.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2013 Softail Blackline FXS running the way it was built to.
