Harley Davidson FXCWC Softail Rocker C 2010 Service Manual
Harley Davidson FXCWC Softail Rocker C 2010 Service Manual
Couldn't load pickup availability
2010 Harley Davidson FXCWC Softail Rocker C Service / Repair / Workshop Manual
Instant download after purchase, in PDF form, NOT a physical book.
This manual contains 1189 pages in English Language including electronic diagnostic manual, it is the only manual you will require to maintain, repair and service your 2010 Harley Davidson FXCWC Softail Rocker C.

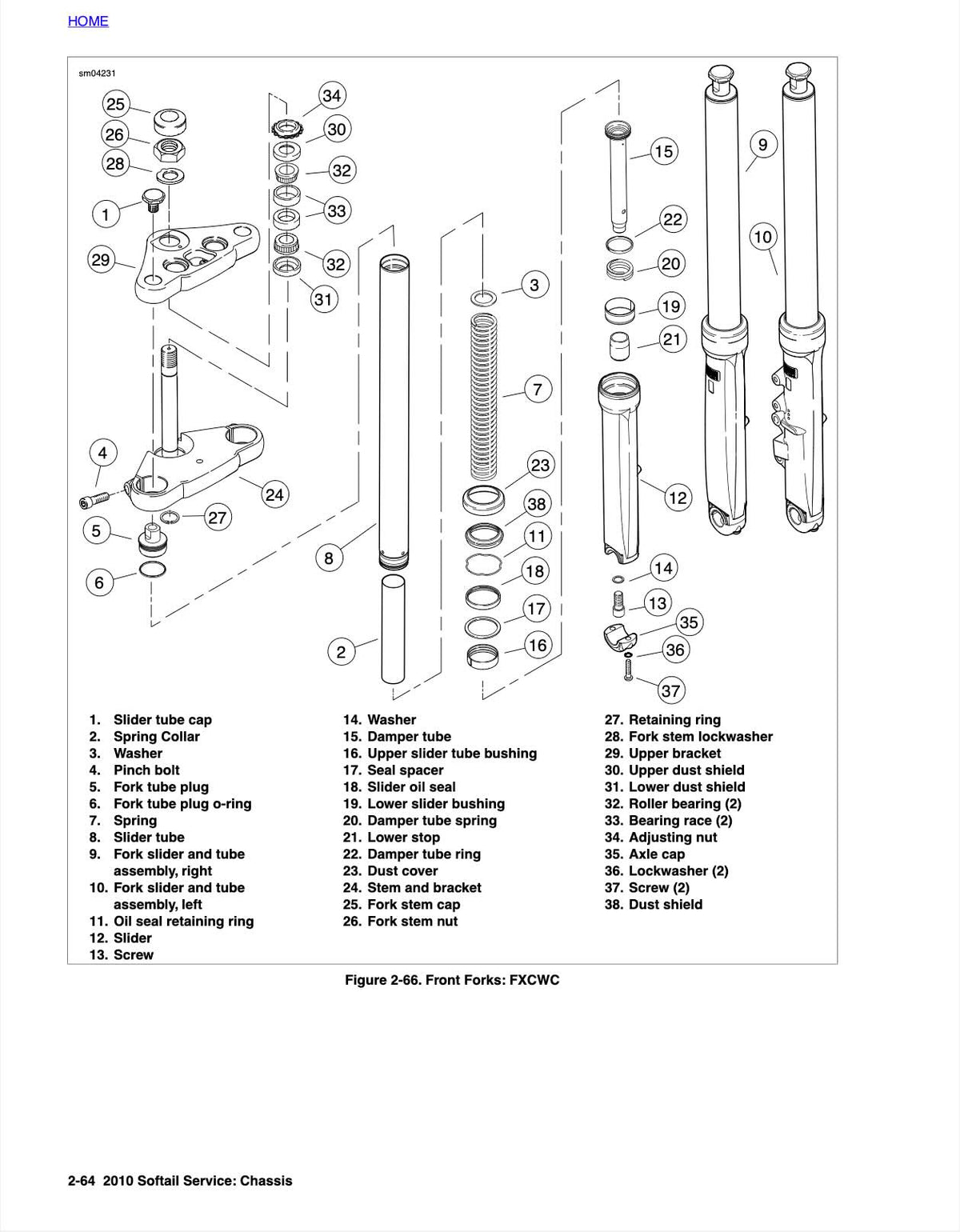

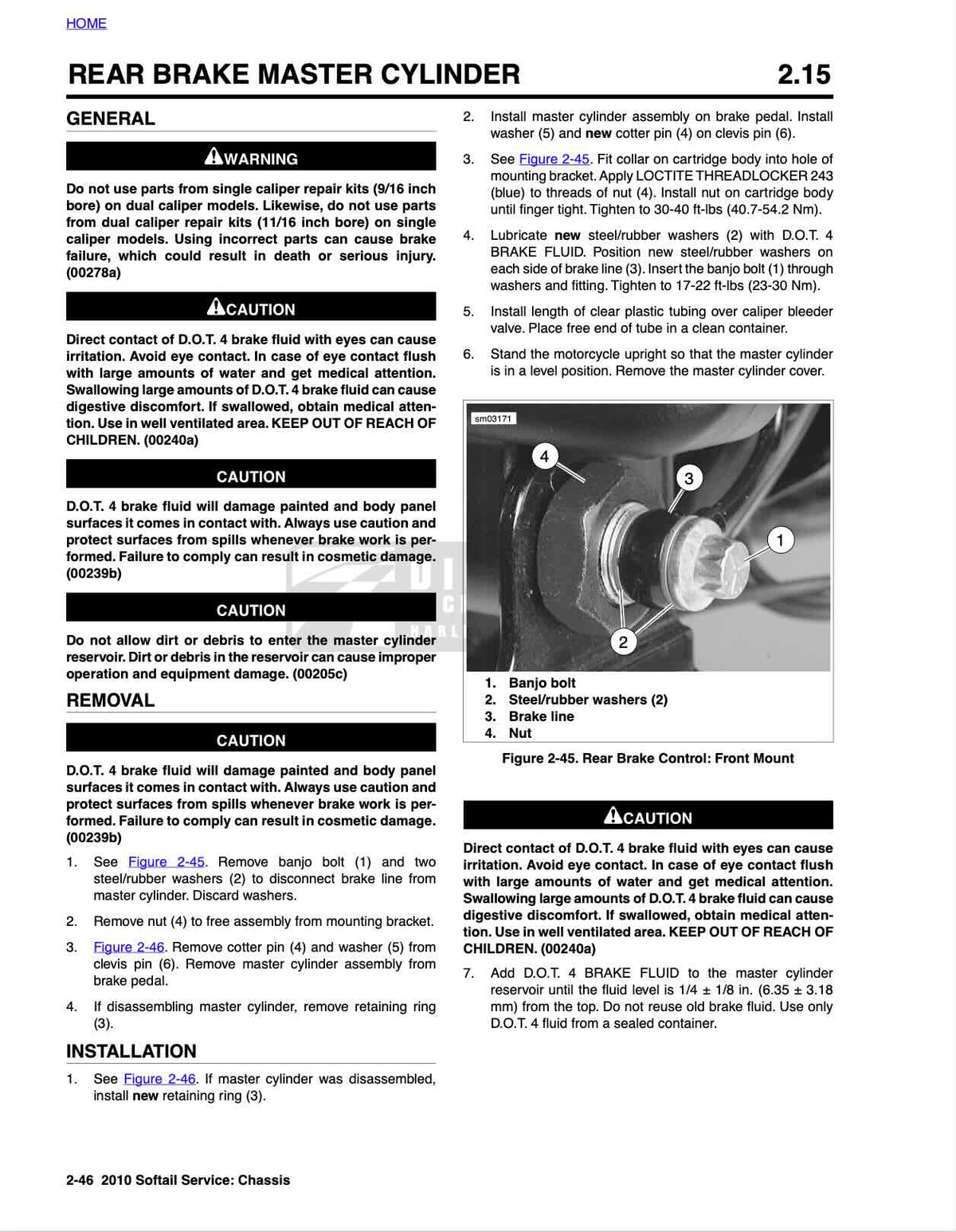

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.
Features Chapters: maintenance, chassis, engine, fuel system, drive, transmission, electrical, appendix a connector repair, appendix b wiring, appendix c conversions, appendix d glossary, tools, torque values, index
Suits Models from 2010
If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.
Share
Softail Rocker C FXCWC (2010): A Helical-Cut Fifth Gear on Harley's Chopper-Style Softail
Harley says the Rocker C delivers custom-chopper style with Harley quality and innovation. It has a tire-hugging Rockertail rear section, a Trick seat with a concealed passenger pillion and LED combination stop/turn/tail lights. The 2010 model adds a new helical-cut fifth gear for improved transmission sound.
Power comes from the rigid-mounted, counter-balanced Twin Cam 96B, an air-cooled 1,584cc V-twin with pushrod-operated overhead valves and hydraulic self-adjusting lifters. It has a 3.75 x 4.38 inch (95.25 x 111.25mm) bore and stroke and a 9.2:1 compression ratio, fed by Electronic Sequential Port Fuel Injection with single-fire, map-controlled ignition. Torque is about 125 Nm (92 lb-ft) at 3,000 rpm. The gearbox is a 6-speed Cruise Drive with a 9-plate wet clutch and belt final drive. The powertrain is black powder-coated with chrome covers, and the exhaust is a chrome staggered shorty with dual mufflers.
Equipment includes polished, cast aluminum tapered five-spoke wheels, a finned cast-aluminum oil tank, forward foot controls, a chrome adjustable internally wired V-bar handlebar in a two-piece 5-inch curved riser and a console-mounted speed shop-style speedometer. Dennis Kirk lists a 49mm fork, a 90/90HR-19 front tire, a 240/40VR-18 rear, a 133-tooth 20mm drive belt on 32/66 pulleys and an H300614 oil filter. Brakes are a single 292mm disc at each wheel, with a four-piston front caliper and a two-piston rear.
Confirmed dimensions list a 95.1-inch (2,415mm) length, a 69.3-inch (1,760mm) wheelbase, a 36-degree rake with 6.2 inches of trail and 5.1 inches of ground clearance. Seat height is about 27.6 inches. The tank holds 4.9 gallons. Dry weight is about 677-686 lbs, and suspension travel is 127mm (5.0 inches) at the front and a short 79-86mm at the rear. A Smart Security System with a hands-free fob was optional.
This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2010 Softail Rocker C FXCWC running the way it was built to.
-
