Harley Davidson FLSTS FLSTSI Softail Heritage Springer 2002 Service Manual

Harley's own period marketing describes exactly what makes the Heritage Springer such a genuine standout even among Harley's own nostalgic lineup: "harkening back to the 1940s Harley-Davidson Panheads, this model's front end boasts an exposed spring suspension, full floating fender and classic horn... at the center of it all is the powerful performance of the new Twin Cam 88B engine, giving the Heritage Springer model a blend of new technology and classic styling." It's a genuine double-dose of retro engineering — the Springer front fork combined with the Heritage line's full touring-cruiser dress-up.

Power comes from the Twin Cam 88B, a rigid-mounted, vibration-isolated 1,449cc air-cooled 45-degree V-twin, delivering a claimed 63-67 hp at 5,500 rpm and roughly 81 lb-ft of torque at 2,800 rpm depending on carbureted (FLSTS) or fuel-injected (FLSTSI) configuration, run through a 5-speed transmission with belt final drive. As on every rigid-mounted Softail in Harley's 2002 lineup, twin counterbalancers handle the job of keeping the hard-mounted engine's vibration from reaching the rider.

The Springer front fork is genuinely functional hardware, not just styling — a real, exposed-spring parallelogram fork design harking back to Harley's pre-telescopic era, delivering 4.2 inches of front suspension travel and 4.34 inches at the rear through a mild steel rectangular-section backbone frame. Genuinely comprehensive period detailing covers the rest of the bike: classic tooled leather saddlebags with quick-detach buckles, crossover exhaust pipes with dual fishtail mufflers, a tombstone taillight, wide whitewall tires on 16-inch laced wheels front and rear, a passenger pillion with a chrome hand rail, and a black powdercoated engine with chrome covers. Front braking uses a single 292mm disc with 2-piston calipers, while the rear runs a matching 292mm disc with 4-piston calipers. Seat height sits at a genuinely accessible 25.7-25.9 inches, with dry weight around 717-750 lbs depending on source. 2002 pricing started at $17,295.

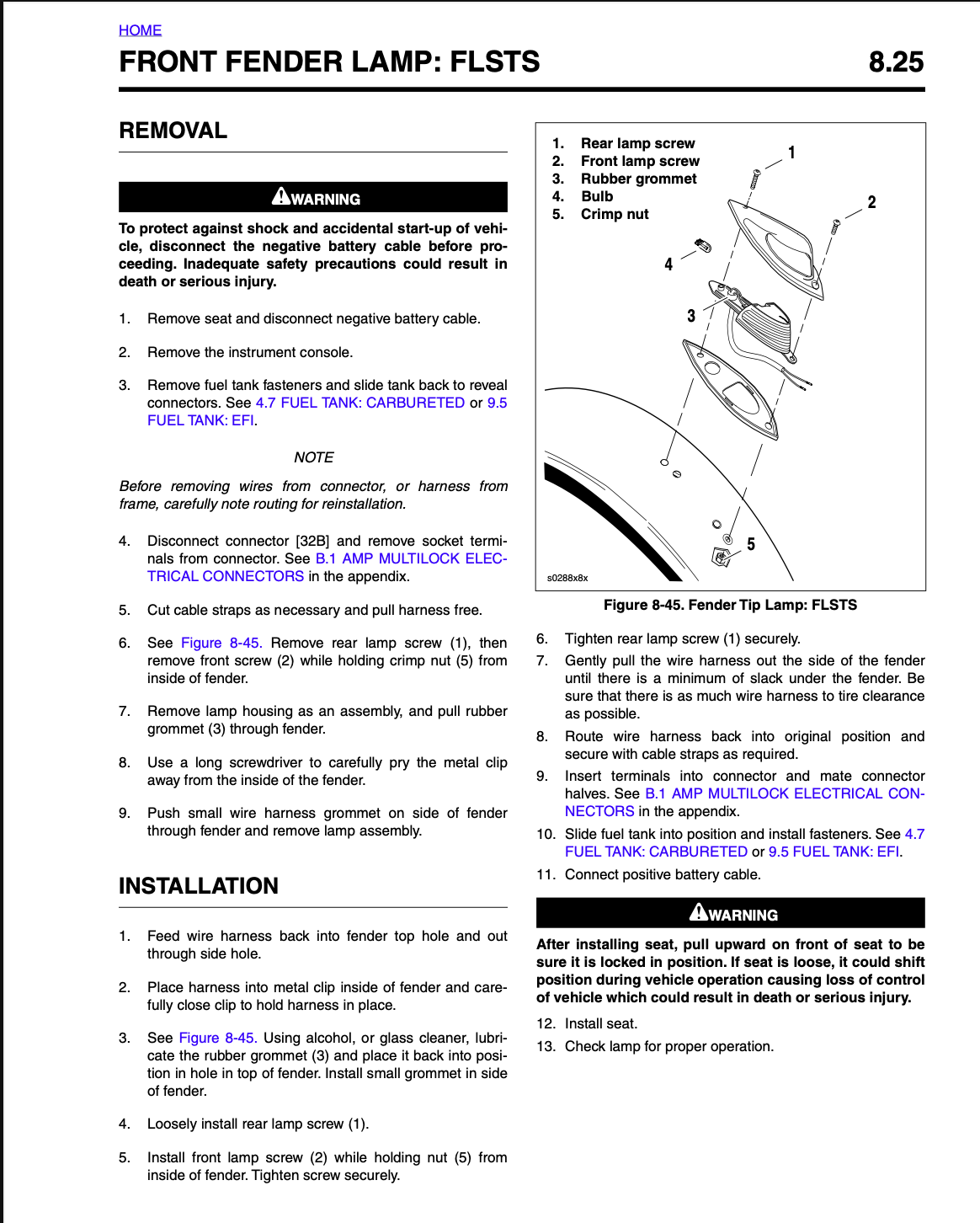

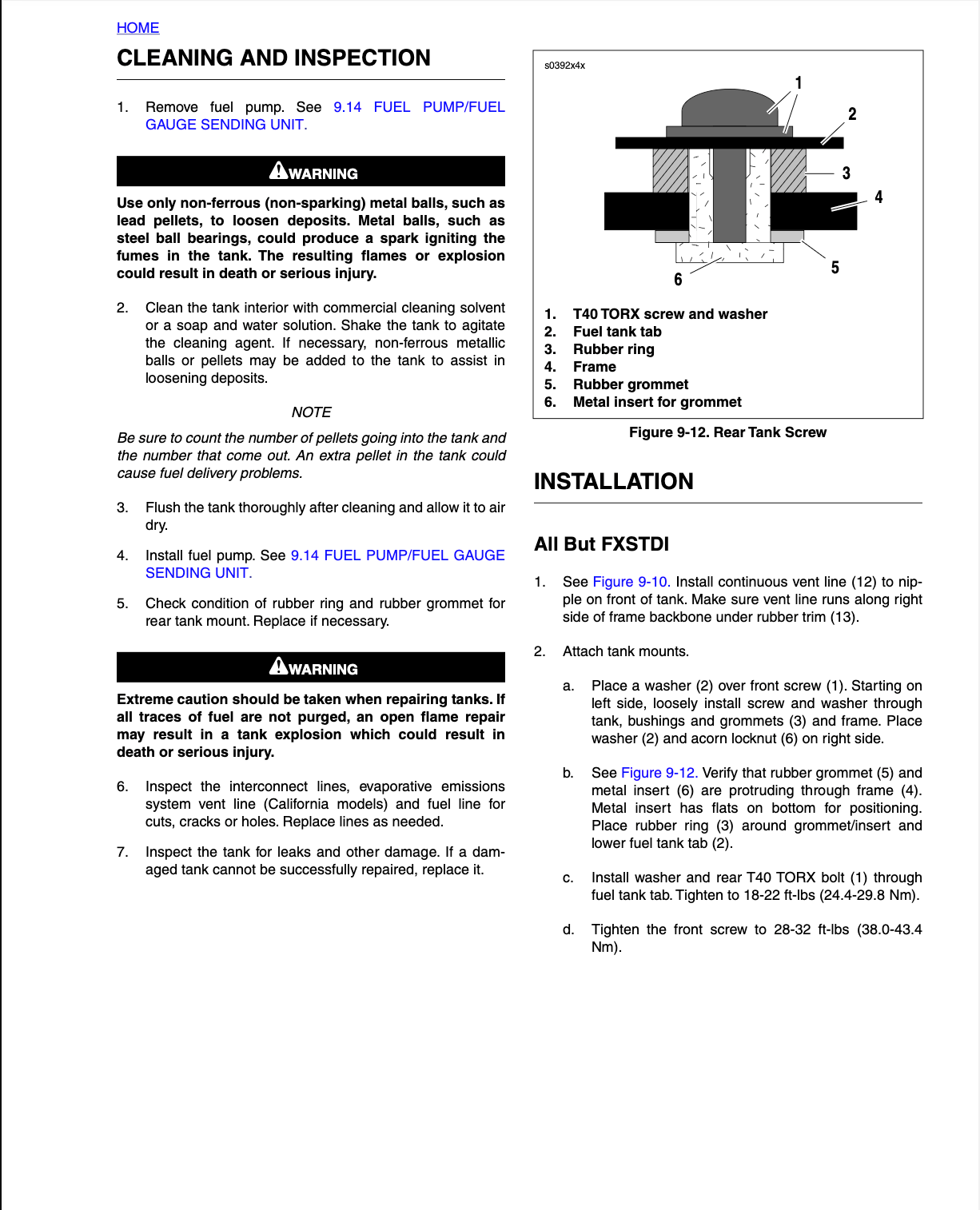

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2002 FLSTS/FLSTSI Heritage Springer running the way it was built to.
