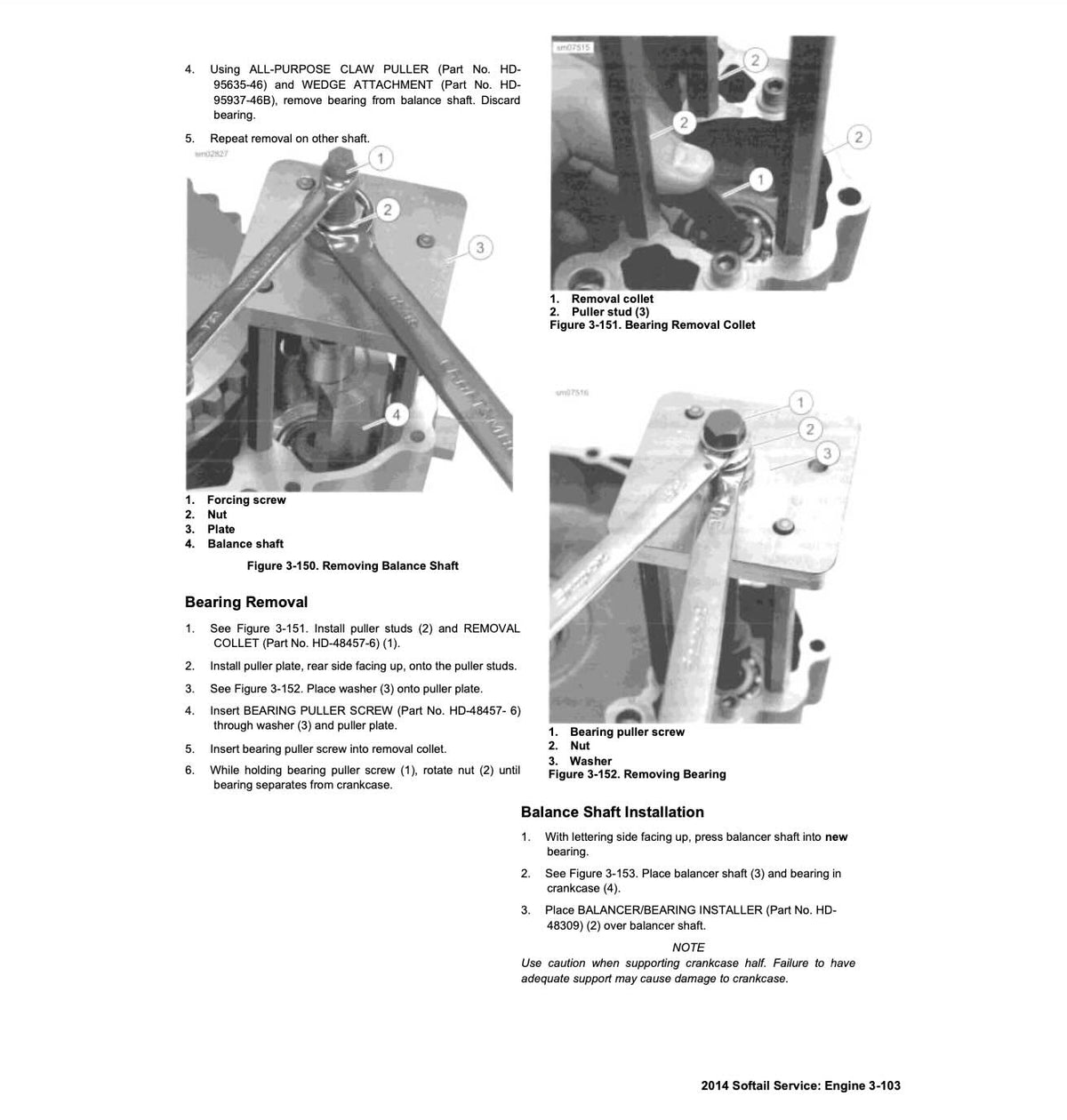

  • 2014 Harley-Davidson Softail Models service manual balance shaft and bearing removal procedures with claw puller tool application, removal collet assembly, bearing puller screw installation, washer placement and balance shaft installation with letterside bearing orientation

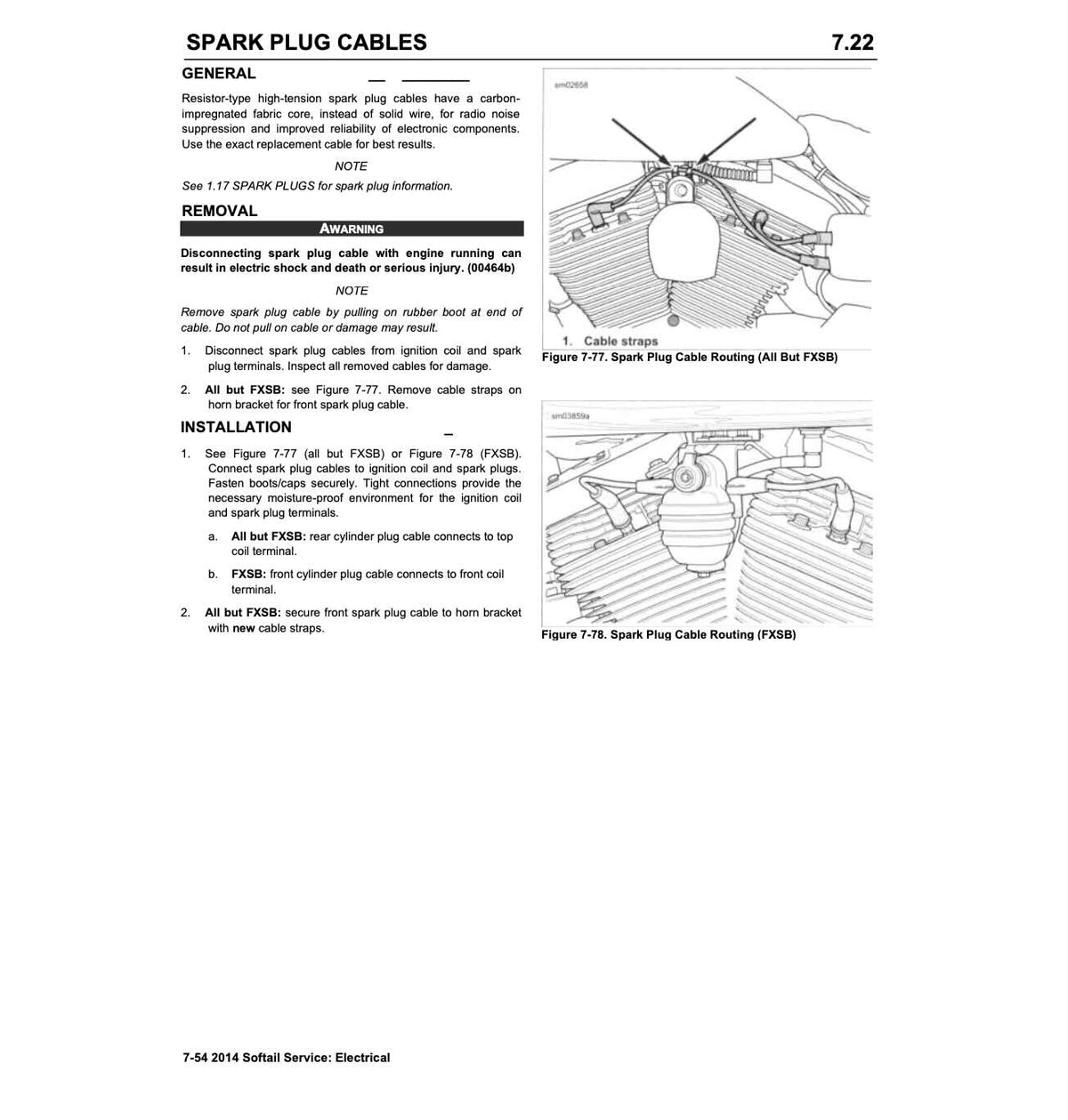

  • 2014 Harley-Davidson Softail Models service manual spark plug cables with resistor-type carbon core specifications, cable routing diagrams showing cable straps and horn bracket attachment, ignition coil and terminal connections for standard and FXSB models
1 4

Dr. E Manuals

Harley Davidson FLSTF Softail Fat Boy 2014 Service Manual

Harley Davidson FLSTF Softail Fat Boy 2014 Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Manual Type

2014 Harley Davidson FLSTF Softail Fat Boy Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 1169 pages in English Language including the Electrical Diagnostic Manual, it is the only manual you will require to maintain, repair and service your 2014 Harley Davidson FLSTF Softail Fat Boy.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Suits Models from 2014

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Softail Fat Boy FLSTF (2014): “The Original Fat Custom Icon”

Harley’s own line on the Fat Boy is that it’s the original fat custom icon, with a burly style that’s often imitated but never duplicated, and that it’s one of the quintessential cruisers. The look is built on 17-inch Mirror Chrome bullet-hole disc wheels in cast aluminum, with a fat 140mm tire at the front and a beefy 200mm tire at the rear. It has the FL-style fork with the headlight nacelle, a Fat Bob fuel tank, a solid-disc look and a heel-toe shifter. A Fat Boy Lo (FLSTFB) version with a blacked-out frame, swingarm and fork lowers and a seat height of 24.3 inches was sold alongside it. 2014 colours included Vivid Black, Brilliant Silver Pearl and Amber Whisky.

Power comes from the air-cooled Twin Cam 103B, a counterbalanced 1,690cc V-twin with a 98.4mm x 111.1mm bore and stroke and a 9.6:1 compression ratio, fed by Electronic Sequential Port Fuel Injection. Torque is about 97.4 lb-ft (132 Nm) at 3,000 rpm. The gearbox is a 6-speed Cruise Drive, with gear ratios of 9.311, 6.454, 4.793, 3.882, 3.307 and 2.79 overall, and belt final drive. Harley’s fuel economy figure is about 42 mpg.

Tires are Dunlop Harley-Davidson Series, with a 140mm front and a 200mm rear. The bike has hidden, horizontal-mounted rear shocks and a 5-gallon tank. The Lo version’s weights are about 700 lbs dry and 731 lbs in running order, and the standard Fat Boy is close to that.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Softail Fat Boy FLSTF running the way it was built to.
