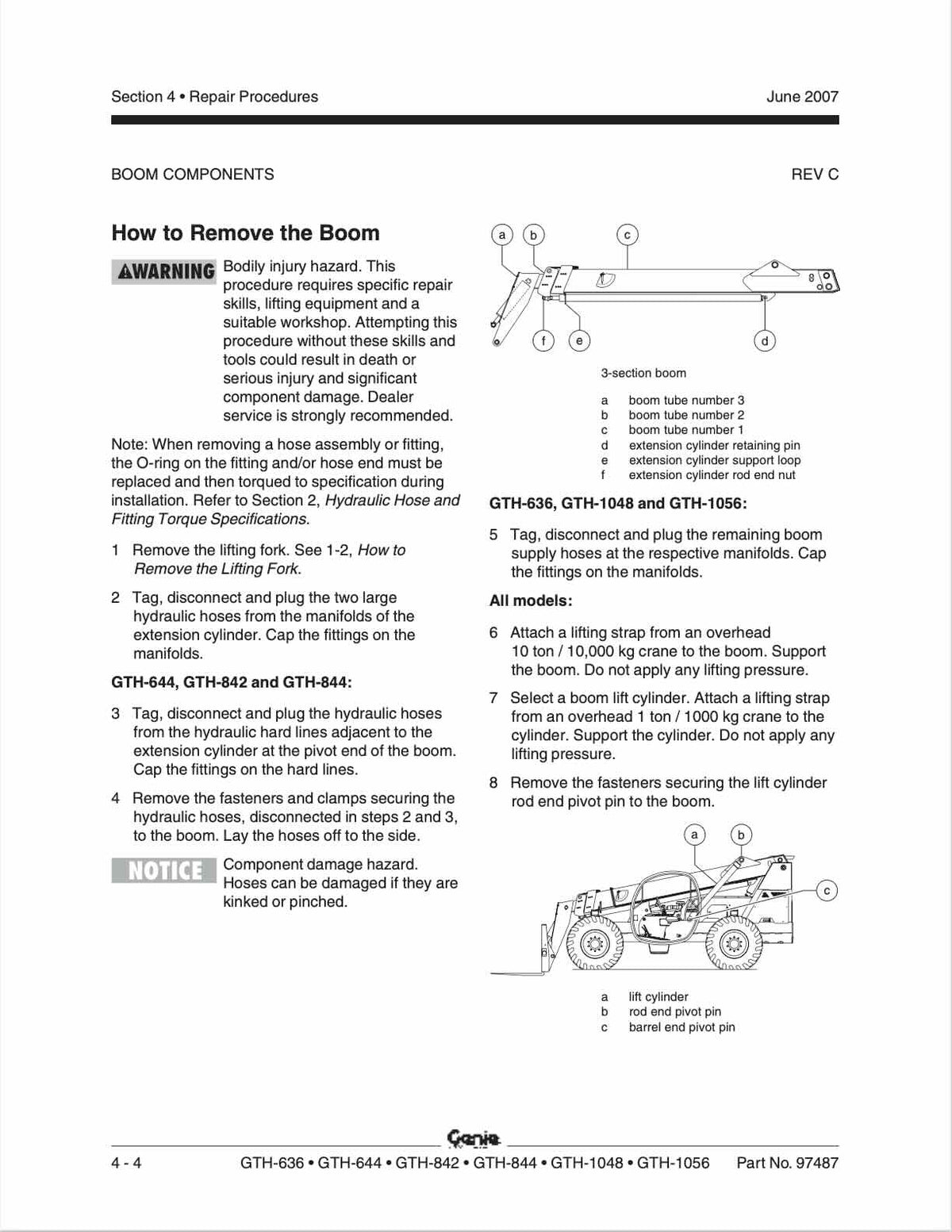

  • A technical repair procedure page from a service manual, titled 'How to Remove the Boom', with numbered steps, diagrams, and component labels for GTH-636, GTH-646, GTH-684, GTH-694, GTH-1048, and GTH-1056.

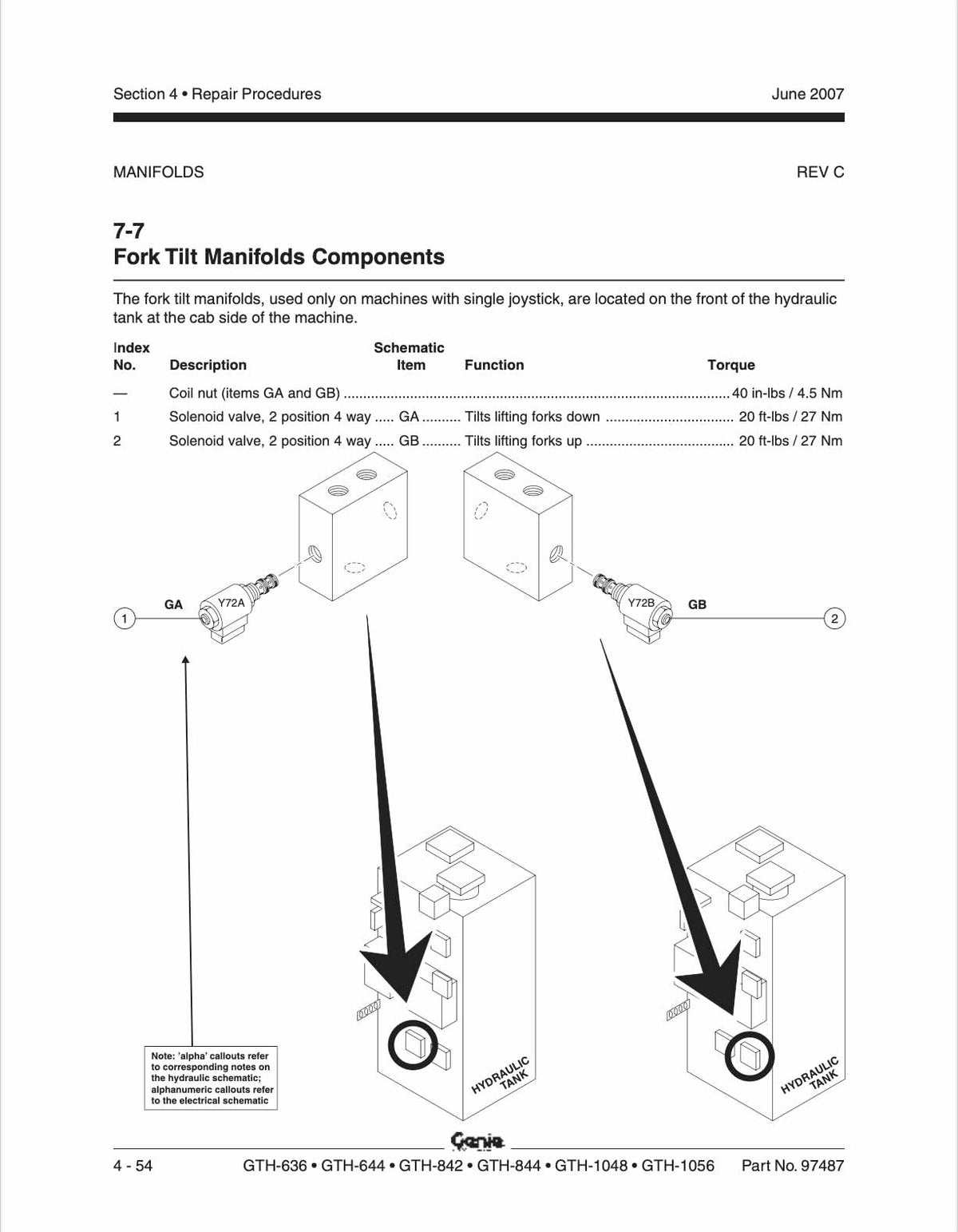

  • A black-and-white technical repair manual page showing fork tilt manifold components, with labeled parts, a table of contents, and arrows pointing to diagrammatic views of the manifold assembly.
1 4

Dr. E Manuals

Genie GTH 636 644 842 844 1048 1056 Telehandler Service Manual

Genie GTH 636 644 842 844 1048 1056 Telehandler Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Genie GTH 636 644 842 844 1048 1056 Telehandler Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 196 pages in English Language, it is the only manual you will require to maintain, repair and service your Genie GTH 636 644 842 844 1048 1056 Telehandler.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: safety rules, specifications - rev d, scheduled maintenance procedures, repair procedures, troubleshooting - rev a, schematics

Suits Models:

  • GTH-636
  • GTH-644
  • GTH-842
  • GTH-844
  • GTH-1048
  • GTH-1056

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Genie GTH-636 / 644 / 842 / 844 / 1048 / 1056: The Six-Model Rough-Terrain Telehandler Family

Genie's GTH telehandlers are rough-terrain telescopic handlers for construction, landscaping and agriculture. The model numbers tell you what each machine does: the first digits are the rated capacity in thousands of pounds and the last two are the maximum lift height in feet. On that pattern the 636 and 644 lift 6,000 lbs to 36 and 44 feet, the 842 and 844 lift 8,000 lbs to about 42 and 44 feet, and the 1048 and 1056 lift 10,000 lbs to 48 and 56 feet.

The figures I confirmed bear that out. The GTH-636 lifts 6,000 lbs (2,722 kg) to 36 feet with 21 ft 11 in of forward reach. The GTH-844 lifts 8,000 lbs (3,629 kg) to 43 ft 10 in with 28 ft 2 in of reach. The GTH-1056 lifts 10,000 lbs (4,536 kg) to 56 ft 10 in with 42 feet of reach.

The family shares one set of design features. It has full-time planetary four-wheel drive with four-wheel steer, variable-speed hydrostatic drive and a proportional frame-leveling chassis that can pick up and place loads on side slopes of up to 10 degrees. Control is by a multi-function proportional joystick, and a manual Genie Quick-Attach system takes a variety of attachments. The cab has tilt steering and ergonomic controls.

Because six models share a manual, use the model and serial number plate to confirm the exact machine before relying on any specification, hydraulic setting or part number, since boom, axle and engine details differ between the 6,000, 8,000 and 10,000-lb classes.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Genie GTH-636/644/842/844/1048/1056 telehandler running the way it was built to.
