Elna Star Series EC ZZ SP ST SU STU Sewing Machine Service Repair Manual

Good news for anyone trying to identify one of these: TIAS.com's own Relics archive lays out the naming genuinely clearly, since Elna used different labels across markets for what's fundamentally the same machine family — the EC (also known as Elna Economic or Elna Plana Economic) covers models 11 and 13; the ZZ (Elna ZZ / Elna Plana ZZ) covers models 21 and 23; the SP (Elna Special / Elna Plana Special) covers models 31 and 33; the ST (Star / Elna Plana ST Star) covers models 41 and 43; and the SU is the updated Star Series covering models 62 and 64. Across every one of these, the odd number (11, 21, 31, 41) denotes the free-arm version, while the even number (13, 23, 33, 43) is the flat-bed equivalent — a distinction confirmed directly in Collectors Weekly's own forum discussion of an Elna EC owner trying to identify their machine.

SilverBobbin's own Elna history places this family squarely at the brand's commercial peak: "though the ZZ sold quite well from the late 1950s through the mid-1960s, the Supermatic Star series stole the show. Launched in 1964, this series ran through the early 1970s." A dedicated blog review of the related Elna Super 64C notes the SU update, arriving in the early '70s, brought a genuine cosmetic and control refresh over the earlier Star models — gray stitch length and upper tension knobs, plus a square stitch width lever head — while remaining mechanically very similar underneath.

Mechanically, this entire family runs on Elna's cam-driven zigzag system, inherited from the earlier Supermatic/Elna 2 design: two profiles work together on a rotating cam — one controlling side-to-side needle movement, the other front-to-back — with interchangeable cam discs swapped in and out using a special notched tool supplied with the machine, letting the sewist change decorative stitch patterns without any electronics involved. Elna's own history site notes an innovative pyramid-shaped feed dog design (rather than the traditional "factory roof" tooth pattern) that fed fabric consistently regardless of sewing direction — a genuine mechanical refinement over more basic feed systems of the era. All models in this family ship in a heavy-duty steel carrying case, a detail specifically called out in the official instruction guide covering this range, and one that's kept many surviving examples genuinely well-protected decades later.

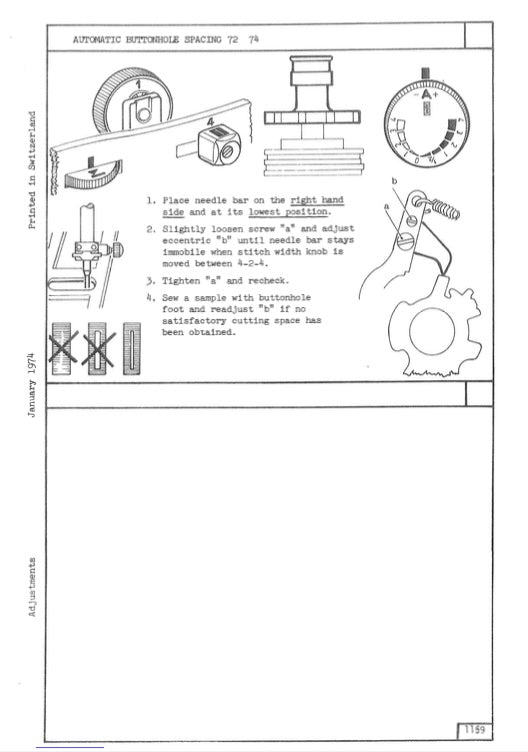

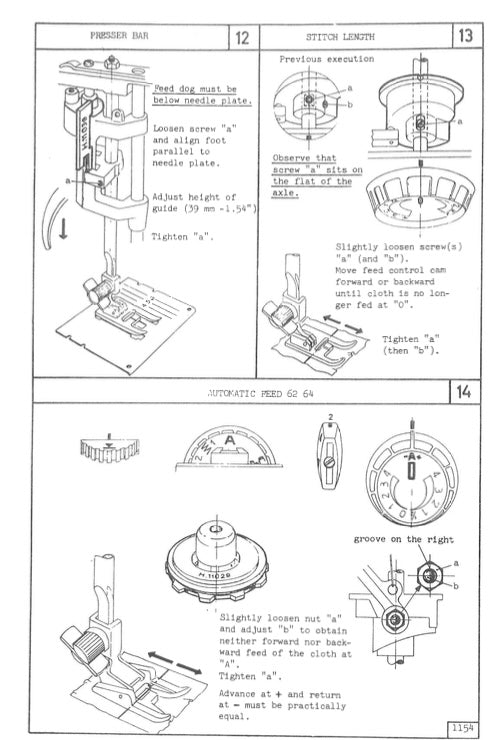

This instruction manual covers the sewing techniques, cam operation, and general setup procedures needed to get the most out of an Elna EC/ZZ/SP/ST/SU Star series machine.
