Ducati Panigale 959 2016-2019 Service Manual

MCN's own review captures the genuine narrative arc of this bike's exact place in the Panigale lineage: "748, 749, 848, 899, 959 — the 959 Panigale hasn't moved the game on and that might sound like a backwards step, but what Ducati has actually done is saved the 'baby' Panigale from extinction. And in 2020 the famous Italian firm did it again, replacing the 959 with the Ducati Panigale V2." Bennetts' own retrospective confirms exactly why this generation exists and how it genuinely compares against the smaller-displacement 1299: "where the full blown 1299 V-twin model is often just a bit too much of a good thing for the UK's roads, the 'supermid' 955cc Panigale strikes an almost perfect balance of performance and handling while also adding a host of modern electronic assists."

Power comes from a genuinely enlarged Superquadro, a 955cc liquid-cooled 90-degree L-twin, DOHC with 4 valves per cylinder and desmodromic actuation, a 100mm x 60.8mm bore and stroke, and a 12.5:1 compression ratio, delivering a claimed 157 hp at 10,500 rpm and roughly 79.2 lb-ft (107.4 Nm) of torque at 9,000 rpm through a 6-speed transmission with wet multi-plate clutch and chain final drive. MCN's own review confirms the genuine regulatory significance behind this bore-and-stroke increase over the outgoing 899: "power is up a claimed 9bhp to 157bhp and torque is increased by 6.2ftlb to 79.2ftlb over the 899 model. It's the first of Ducati's Superquadro motors to pass Euro 4 regulations, so expect the 1299 to follow next year."

MCN's own detailed chassis account confirms genuine, if modest, geometry refinement over the 899 it replaced: "suspension, brakes and riding position are all carried over from the 899 Panigale, but Ducati has lowered the swingarm pivot by 4mm to improve traction on track and stability on the road. The shock is 2mm longer and the wheelbase is 5mm longer, but the 24° rake and 96mm trail remain the same." Motoplanete's own detailed review confirms the genuine sophistication of the standard electronics package: "the clutch now has a dual function: anti-dribble and assistance. This reduces lever effort and makes hard downshifts easy... DTC traction control operates on 8 intervention levels, EBC engine braking on 3, Bosch 9MP ABS is also governed by 3 modes, and the dashboard display changes according to the Riding Mode chosen. Power output differs according to mode: 157 hp for Race and Sport, 115 hp for Rain mode."

Bennetts' own used-buying guide confirms the genuine, single most-flagged inspection point across the whole range: "the vast majority of road or track riders will have no issues at all with the slightly 'lower' spec Brembo M4.32 calipers, however anyone who really likes to push on might be disappointed at their power when compared to the higher spec M50 caliper." That same review confirms genuinely light real-world handling: "tipping the scales at just 200kg fully-fuelled the 959 is also fairly light and agile to move around," alongside a real, practical cosmetic quirk worth checking on used examples: "watch out for scratched swingarms as the black paint can mark quite easily." Motorcyclespecs.co.za's own coverage confirms this generation retained a genuinely long service schedule despite the desmodromic valvetrain: "still has 7500 miles between service limits and valve clearance inspections every 15,000 miles."

Ducati-specs.com's own confirmed model breakdown notes the genuine range-topping Corse trim added for 2018-2019, layering on Öhlins suspension and steering damper, a titanium Akrapovic exhaust, and a lithium-ion battery — "colors of the MotoGP" livery included — atop the same fundamental 955cc Superquadro engine and chassis architecture shared with the standard model throughout this whole 2016-2019 range. Wikipedia's own confirmed spec sheet lists a fully adjustable 43mm Showa fork, a fully adjustable Sachs rear shock, dual 320mm front discs with Brembo radial monobloc calipers, a 245mm rear disc with ABS, and a claimed dry weight of 176kg (388 lbs) on the aluminum monocoque frame. This exact generation ran through 2019 before Ducati's Panigale V2 took over the mid-displacement flagship role for 2020.

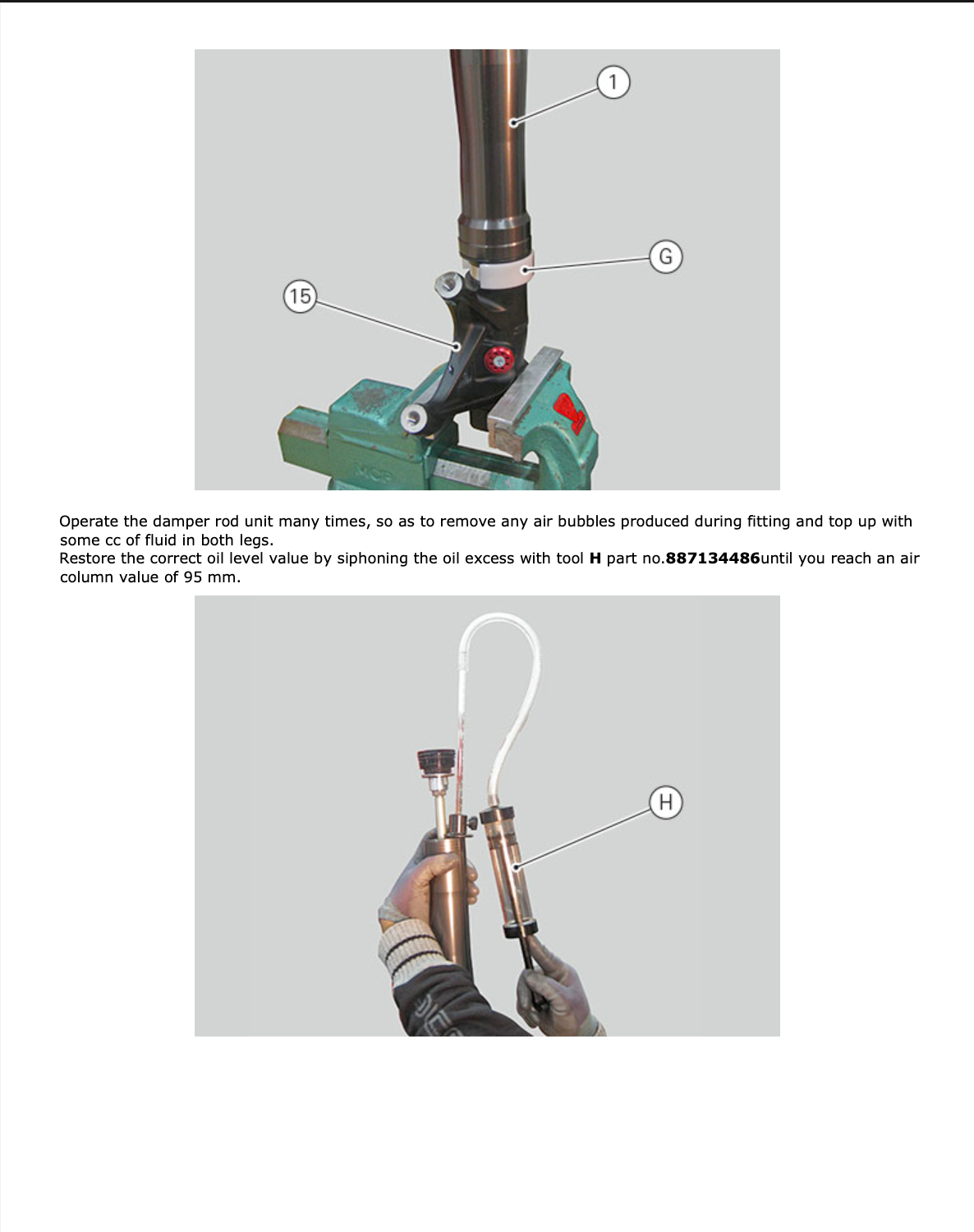

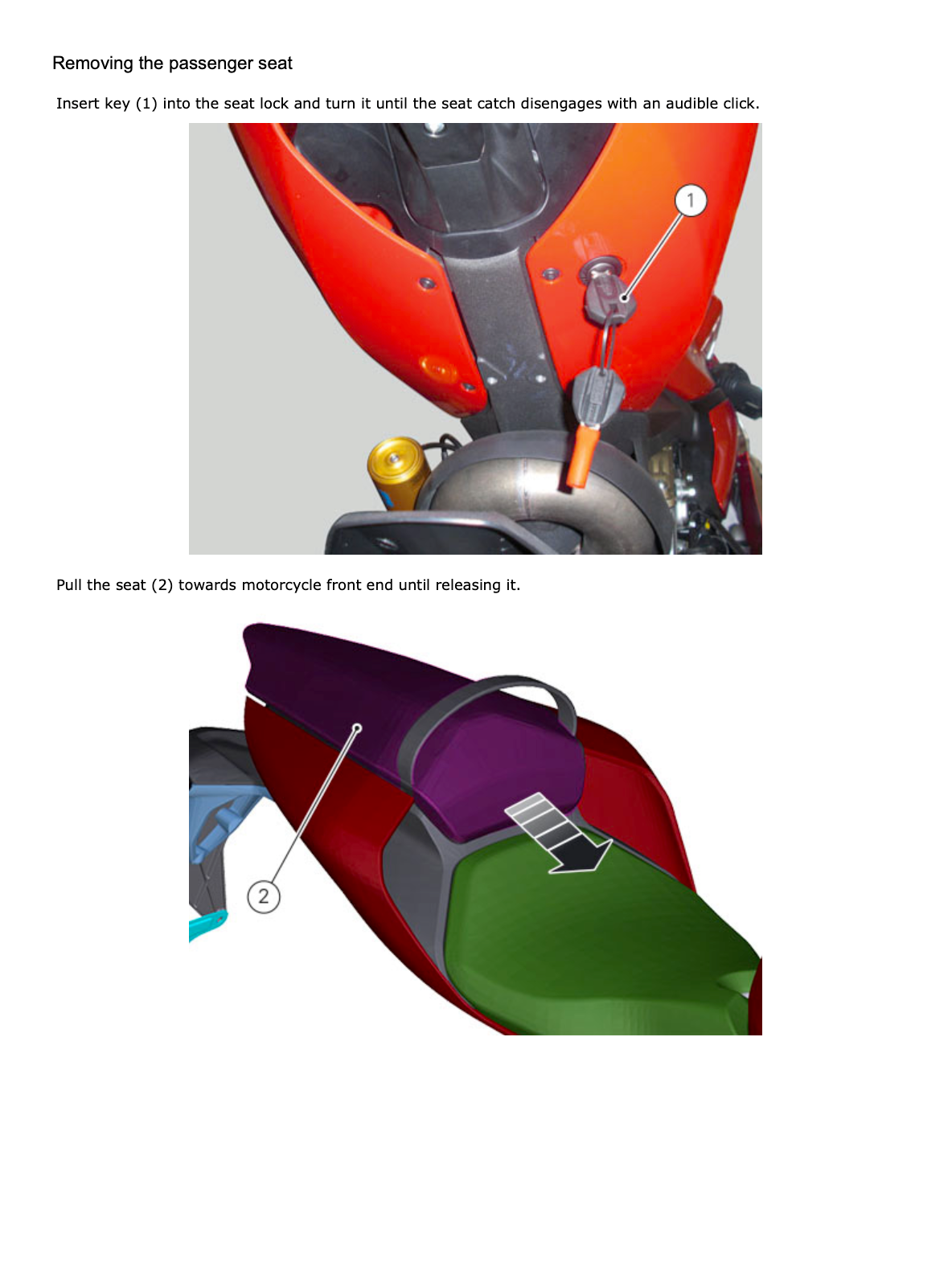

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2016-2019 Panigale 959 running the way it was built to.
