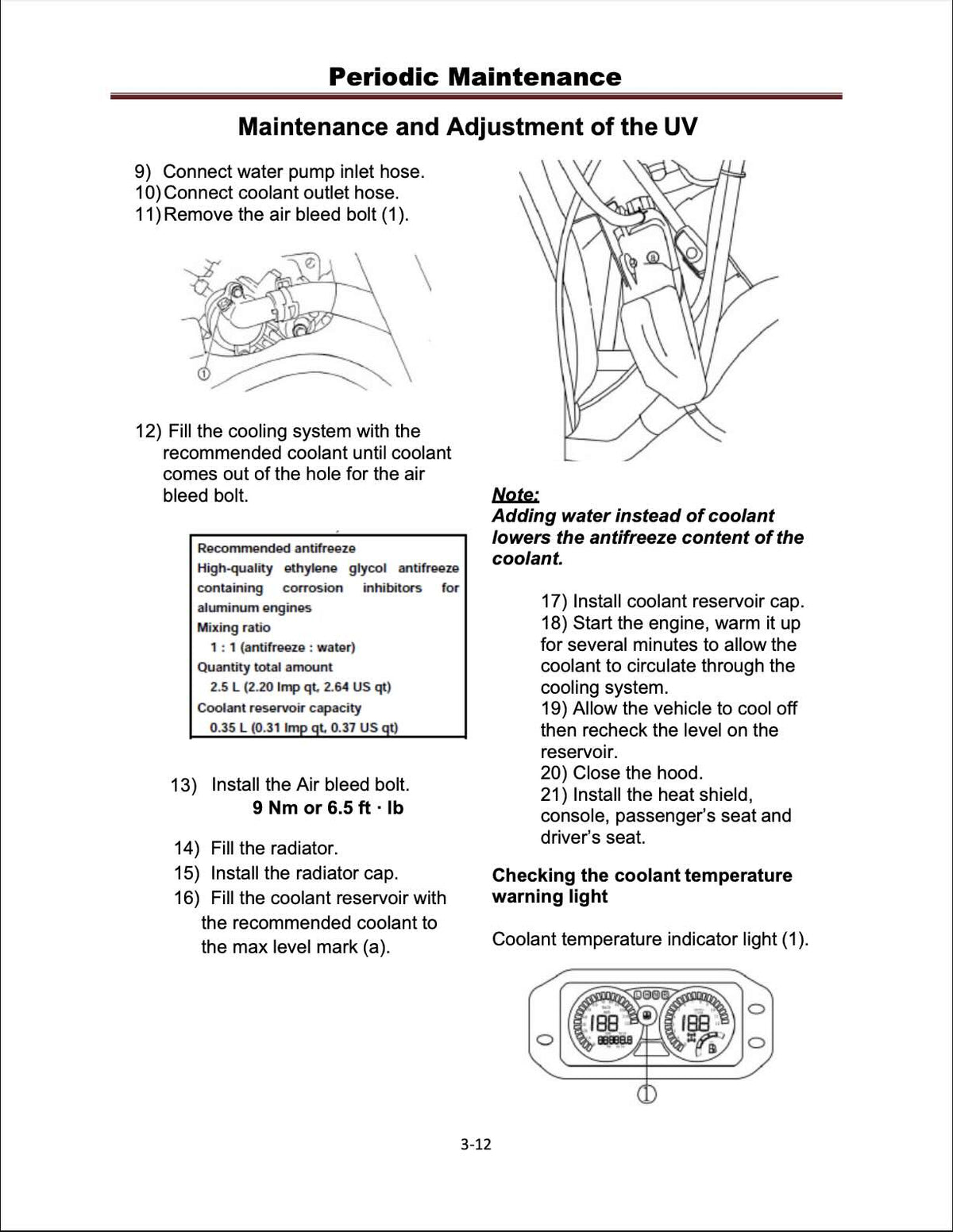

  • Cub Cadet Challenger service manual page with cooling system air bleed bolt and coolant reservoir fill diagrams

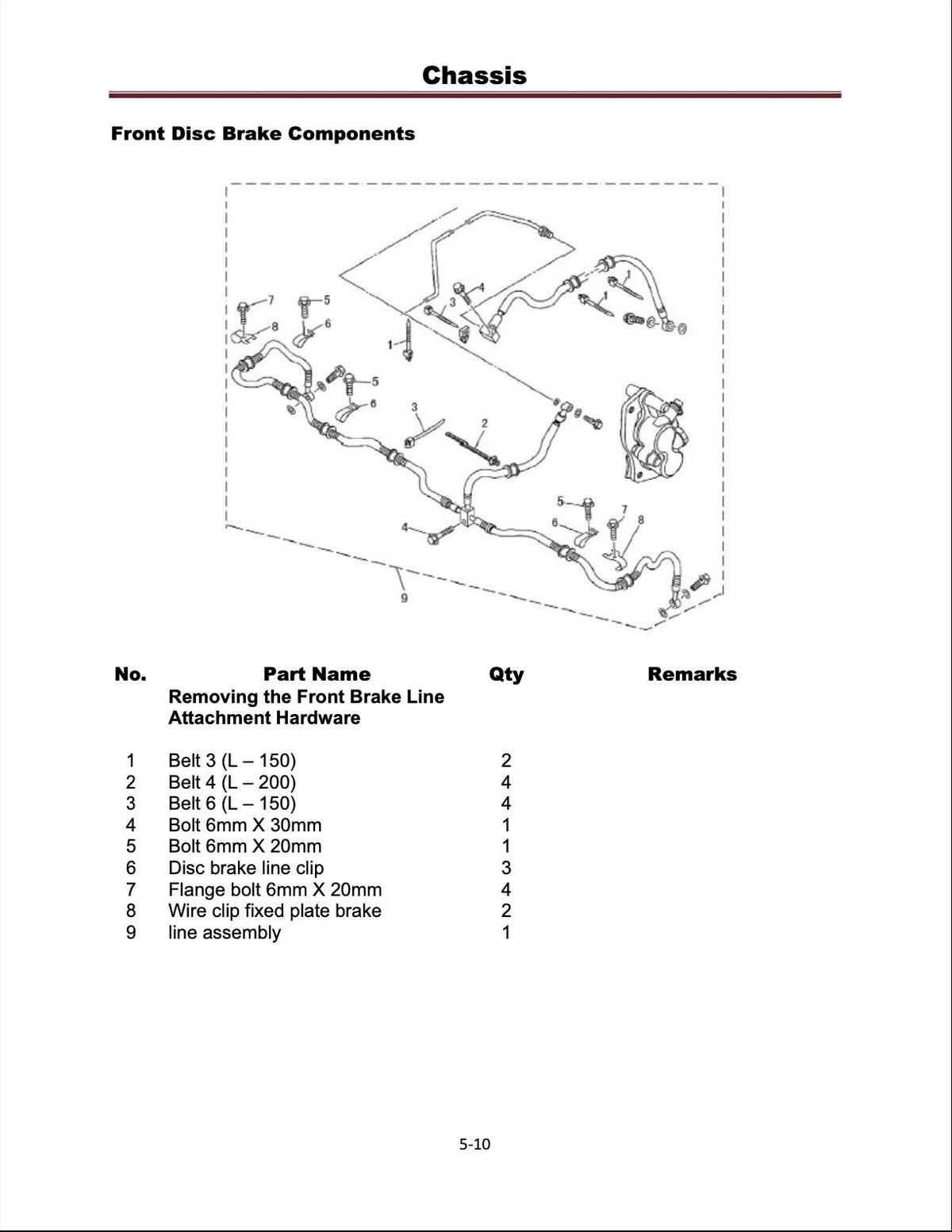

  • Cub Cadet Challenger service manual page with front disc brake line components exploded diagram and parts list
1 4

Dr. E Manuals

Cub Cadet Challenger 500 700 Service Manual

Cub Cadet Challenger 500 700 Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Cub Cadet Challenger 500 700 Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 244 pages in English Language, it is the only manual you will require to maintain, repair and service your Cub Cadet Challenger 500 700.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: index, general, specifications, periodic maintenance and adjustments, engine, chassis, electrical, engine management system, troubleshooting, wiring diagram

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Challenger 500/700: Cub Cadet's First Challenger-Series Utility Vehicles

The Challenger 500 and 700 launched Cub Cadet's Challenger series of UTVs. They were priced several thousand dollars below many better-known brands, going up against Kymco and CFMoto in the budget end of the market. The 500 started at $8,499 and the 700 at $9,499, in yellow or camo.

Power comes from a liquid-cooled four-stroke single with electronic fuel injection. The 500 has a 471cc engine. The 700 has a 686cc engine with a 102mm x 84mm bore and stroke and a 9.2:1 compression ratio, and it makes a claimed 33.5 hp (25 kW). Electric start is standard. The 700 runs a continuously variable transmission with Hi/Low range and reverse, a belt primary drive and shaft drive to the front axle.

Both share four-wheel drive with a front locking differential and four-wheel independent, adjustable suspension on double A-arms. Brakes are hydraulic discs at all four wheels, and the 700's are 8-inch (203mm) units. The 700 rolls on 12-inch aluminum wheels with Carlisle 26x9-12 front and 26x10-12 rear tires. A large mid-mount air intake is designed for wading.

Confirmed standard equipment includes a hard-top roof, a quick-release windshield, a 350-lb cargo box and a 1,200-lb towing capacity. The 700's listed top speed is 45 mph with 11 inches of ground clearance. One owner report describes early clutch wear on a 2017 Challenger 700, so check that component on any used machine.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Cub Cadet Challenger 500/700 running the way it was built to.
