CFMOTO ZFORCE 800 Trail 2023-2025 Service Manual

CFMoto's own confirmed product copy sums up the Trail's whole positioning directly: "the ZFORCE 800 Trail is sized right and priced right. Its 800cc V-Twin provides the perfect horsepower for most riders. The 50-inch-wide stance allows access to all trails." That same marketing line — "go where others can't" — appears consistently across CFMoto's own 2023 copy, referencing the genuinely narrower trail-legal stance versus the wider ZForce 800 EX.

A real, checkable change happened partway through this range worth knowing before ordering parts: the 2023 model ran Delphi electronic fuel injection delivering 62 hp at 6,700 rpm and 53 lb-ft at 6,000 rpm, while the 2025 configuration switched to Bosch EFI with a genuinely retuned output of 58 hp at 7,500 rpm and 50 lb-ft at 5,750 rpm — real engine-management hardware and calibration changes, not a simple badge carryover.

Power comes from a 799-800cc liquid-cooled V-twin, SOHC with 8 valves, run through a CVTech automatic transmission with P/R/N/H/L settings, feeding a selectable 2WD/4WD driveline with a 4WD front differential lock, delivering drive through shaft final drive front and rear.

CFMoto's own confirmed 2023-specific feature list details a real cabin upgrade that year: "the driver gets a new five-inch LCD display and a flat-bottomed steering wheel, while the passenger stays secure through the rough stuff with an adjustable grab bar. Both occupants get improved and adjustable sport seats and 3-point safety belts, as well as beefier newly designed full side doors for greater protection." Standard equipment across the range includes power steering, stainless steel bumpers, premium adjustable shocks, high-intensity projector-beam headlights, a 2-inch hitch receiver, and a 3,000-3,500-lb winch.

Confirmed dimensions list a 120-121-inch length, 50-inch width, 71-72-inch height, 90-inch wheelbase, 10 inches of ground clearance, and a genuinely larger 9.8-gallon fuel tank introduced partway through this range (up from 6.5 gallons on the 2023 model), with dry weight ranging 1,290-1,411 lbs depending on exact model year. 2023 US pricing was $12,799, rising to $13,099 by 2024.

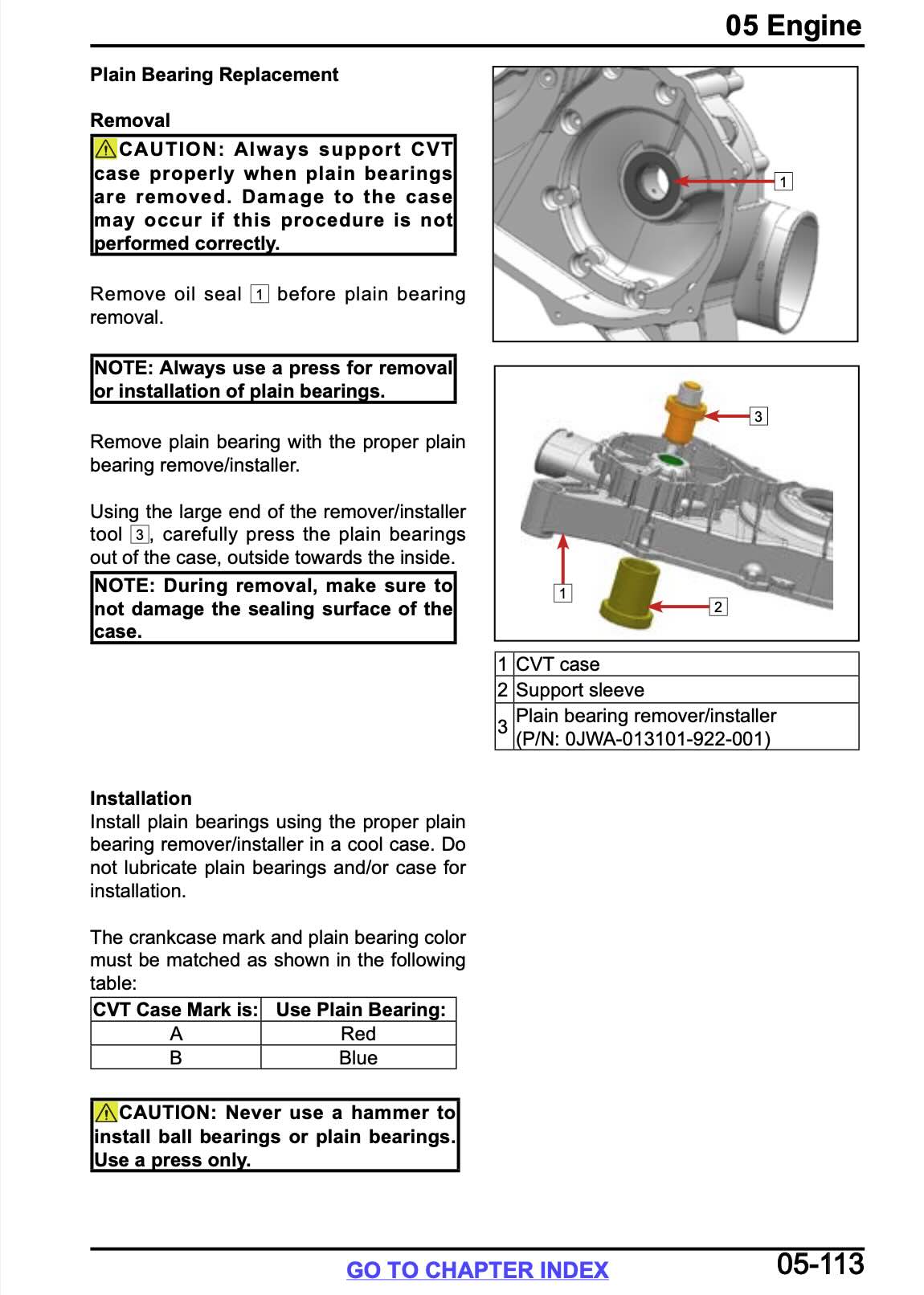

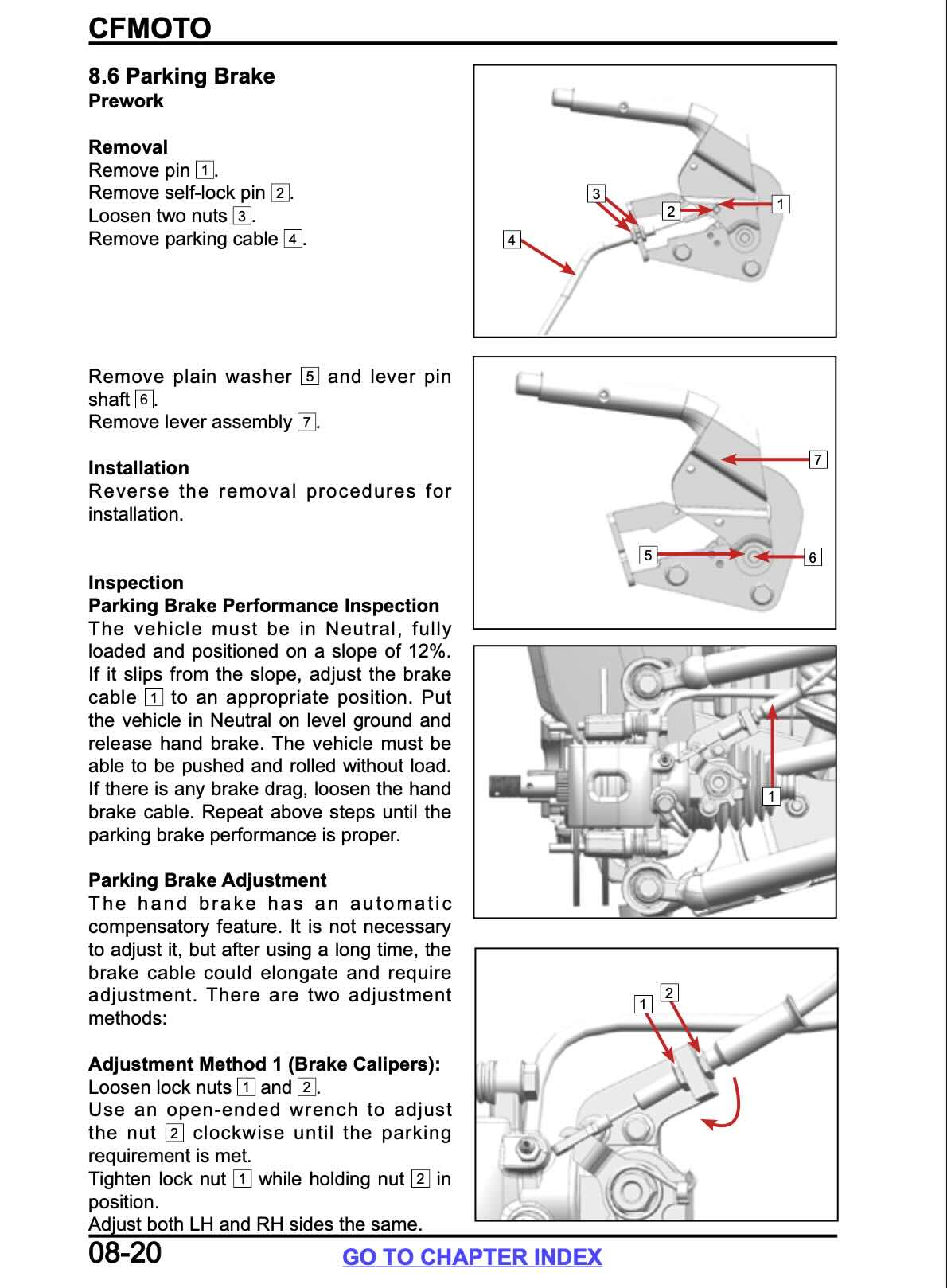

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2023-2025 ZForce 800 Trail running the way it was built to.
