CFMoto ZForce 550 500 CF500 CF550 SxS 2018 Onwards Service Manual

CFMoto's own 2016 launch announcement made the pitch simple: "bigger isn't always better," and the ZForce 500 HO Trail proved it by shrinking to a sub-50-inch width specifically to access trails wider machines can't reach. The introduction that year replaced the previous 600cc engine with an all-new 500HO high-output single, delivering a genuine 15% power increase and 10% torque increase over the outgoing unit — improvements CFMoto's own VP of Sales called one of the company's most exciting model-year introductions to the US market at the time.

Power comes from a liquid-cooled single-cylinder engine, four-valve SOHC design fed by Bosch electronic fuel injection for instant cold starts, crisp throttle response, and improved fuel economy over the carbureted units common in this class. Output has settled in the high-30s horsepower range (38 hp at 6,800 rpm on recorded model years) with roughly 32 lb-ft of torque peaking around 5,800 rpm, delivered through CFMoto's CVTech IBC clutch system in a variable transmission with High/Low/Neutral/Reverse/Park gear selection — a genuine parking-lock feature not every entry-level UTV in this price bracket offers.

The chassis pairs double A-arm independent suspension front and rear with hydraulic shock absorbers offering multi-position spring preload adjustment, tuned for genuine trail composure rather than high-speed desert running. Standard equipment across most trims includes a winch, roof, side mirrors, and a trailer hitch — a comprehensive package for a machine positioned as CFMoto's entry-level ZForce offering. The 550EX variant, sold in some international markets, steps up displacement and adds oil cooling alongside water cooling for more consistent temperature control and extended engine life, with a lightweight engine design using plastic components and an optimized transmission structure to keep overall weight down. CFMoto backs the platform with a notably long powertrain warranty in some regions, part of the brand's broader push to compete against established Japanese and American UTV manufacturers on value.

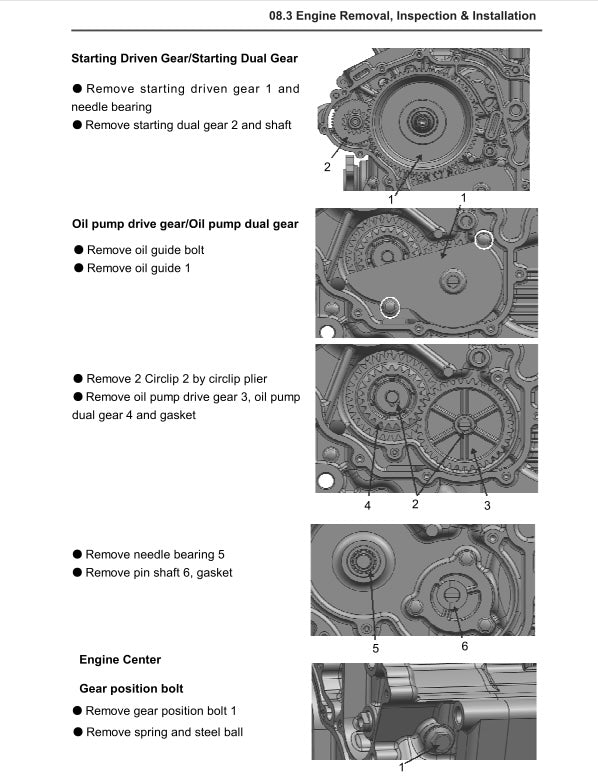

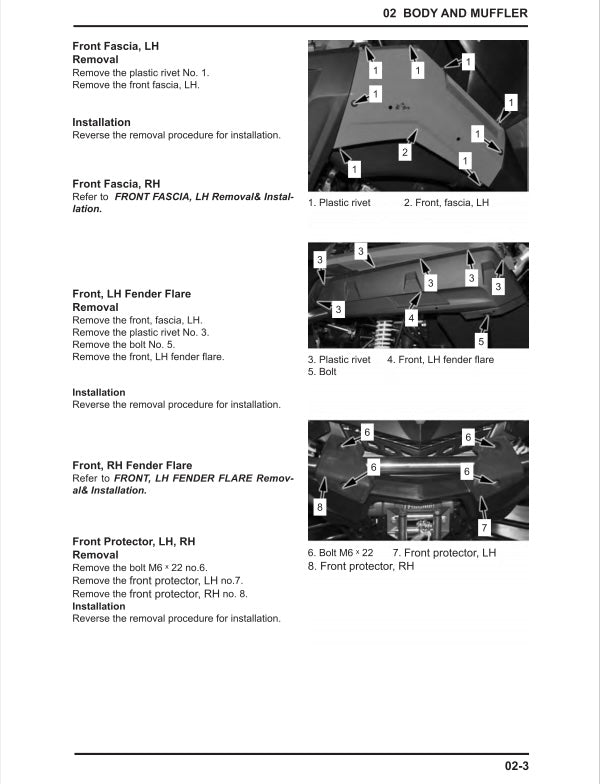

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a ZForce 500/550 running the way it was built to.
