CFMOTO CFORCE 520 2020-2023 Service Manual
CFMOTO CFORCE 520 2020-2023 Service Manual
Couldn't load pickup availability
2020-2023 CFMOTO CFORCE 520 Service / Repair / Workshop Manual
Instant download after purchase, in PDF form, NOT a physical book.
This manual contains 293 pages in English Language, it is the only manual you will require to maintain, repair and service your CFMOTO CFORCE 520.

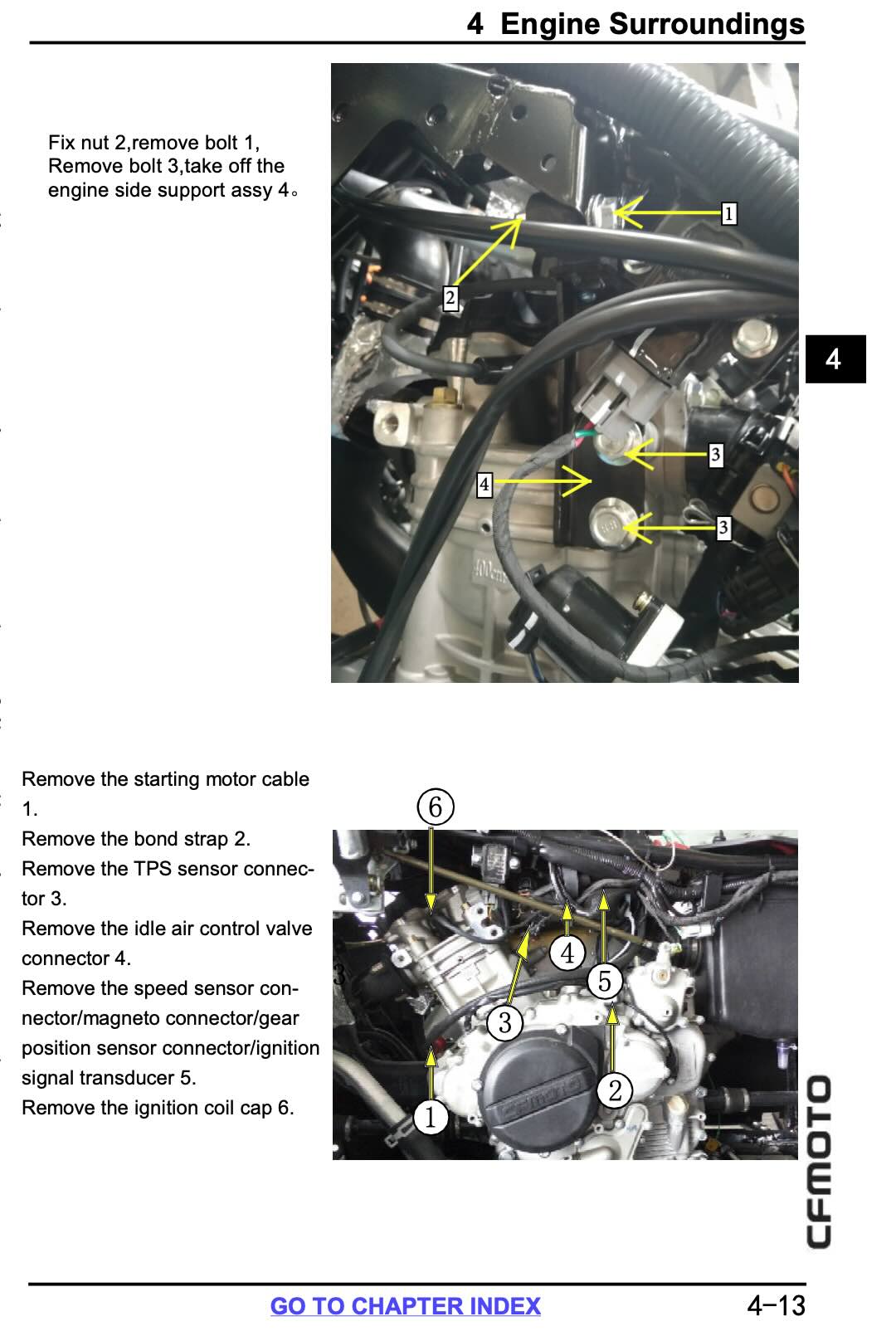

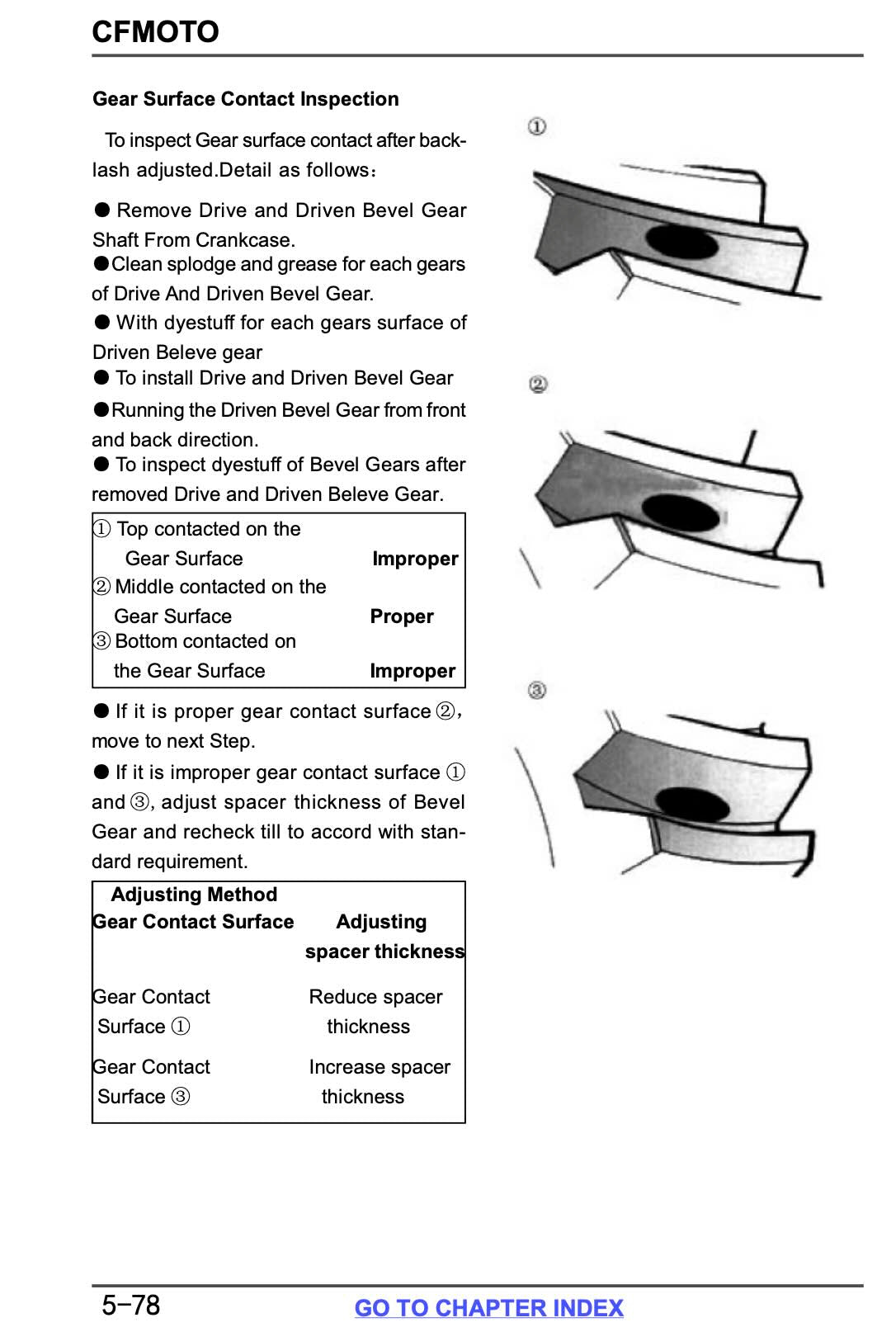

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.
Features Chapters: maintenance information, vehicle body covering parts, inspection and adjustment, engine surroundings, engine, vehicle chassis, signal and lighting system, electrical schematic diagram
Suits Models from 2020, 2021, 2022, 2023
If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.
Share
CForce 520 (2020-2023): "The Most Updated CFMoto Mid-Displacement Engine" — Spanning a Shorter S and a Genuinely Longer L Wheelbase
The CForce 520 family split into two real, distinct body configurations throughout this exact range: the S variant, with a 1.26-metre wheelbase and 358kg weight, and the longer L variant, stretching to a genuine 1.46-metre wheelbase and 382kg weight for extra passenger or cargo capacity — the same fundamental engine and drivetrain, just a different chassis length depending on the buyer's priority.
Power comes from a 495cc liquid-cooled single-cylinder engine, OHC with 4 valves, a 91mm bore and 76.5mm stroke, fed by EFI, delivering a claimed 34-36 hp at 6,750 rpm and roughly 38.4-41 Nm (28-30 lb-ft) of torque at 5,250-5,750 rpm, run through an automatic power-shift CVT transmission feeding a 4WD driveline with a front differential lock. Confirmed year-by-year torque figures from 1000PS's own archived listings show real consistency across this exact span — 36 hp and 41 Nm held steady from 2019 through 2022 on the L EFI 4x4 DLX trim.
Standard equipment across the range includes handguards, interchangeable luggage racks with CFMoto's CF-CONNECT quick-release system, a remote-control 2,500-lb winch option, 10 inches of ground clearance through independent double A-arm suspension with adjustable shocks, a 5-inch digital display with full-screen backlight, and Ridevision LED lighting — real, genuine convenience features CFMoto marketed specifically around reduced vibration and lighter steering effort for this class.
Confirmed dimensions list a 12x6.0-inch front and 12x7.5-inch rear wheel combination wrapped in AT25x8.00-12 front and AT25x10.00-12 rear tires, hydraulic front disc braking with a central-axle parking brake, and a 15-litre fuel tank on the S-trim configuration delivering a claimed 192km range and 90 km/h top speed. Colorways spanned Lava Orange, Fire Red, Pearl Injected Black, and TrueTimber Camo across this exact 2020-2023 span, before CFMoto's genuinely comprehensive 2024 redesign brought a 25% tighter turning radius, a lighter but stronger frame, a bigger fuel tank, and a new 3.5-inch LCD display to the platform.
This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2020-2023 CForce 520 running the way it was built to.
-
