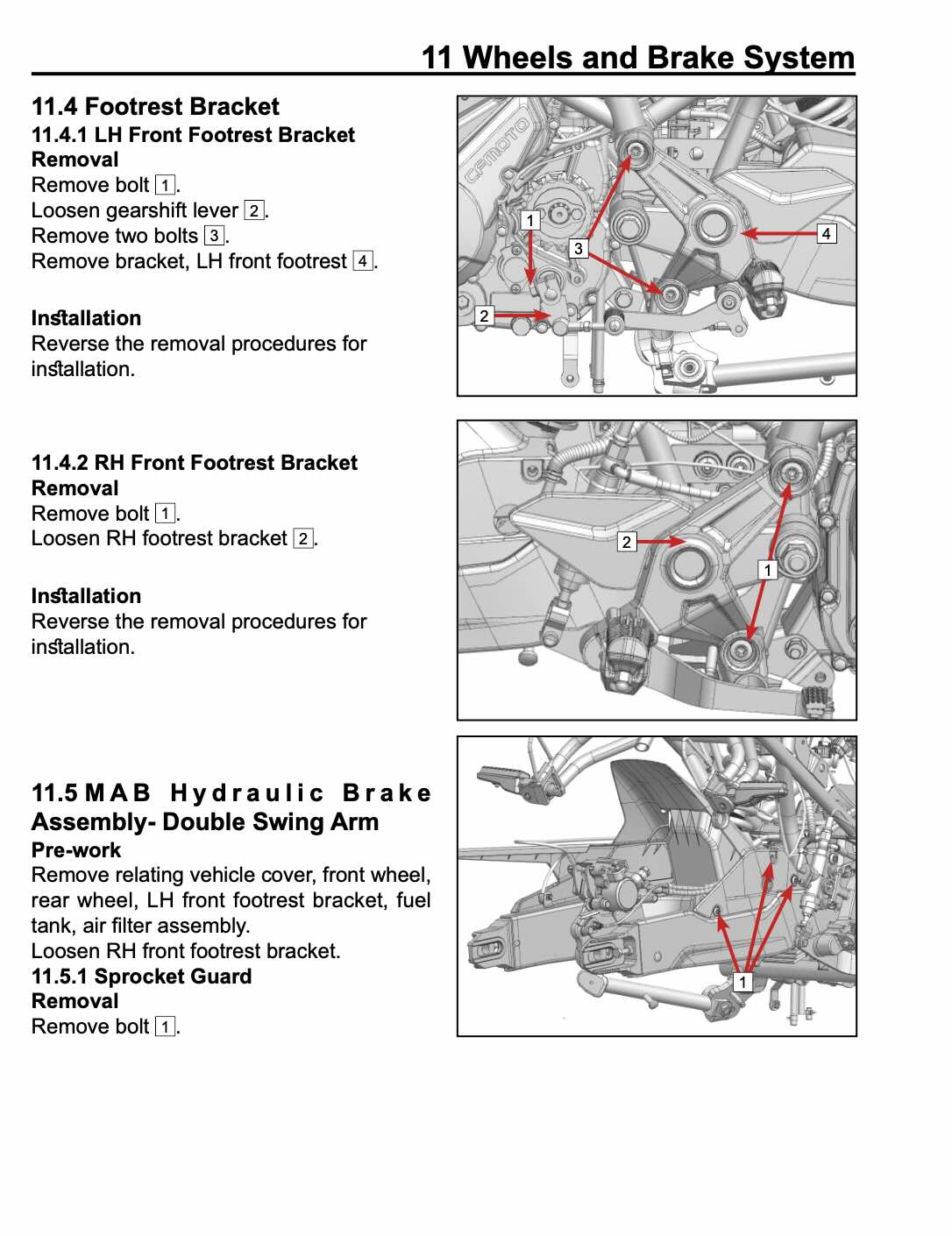

  • A black and white technical service manual page for a 'Wheels and Brake System' schematic, showing step-by-step removal and installation procedures with numbered callouts on line drawings of brake components.

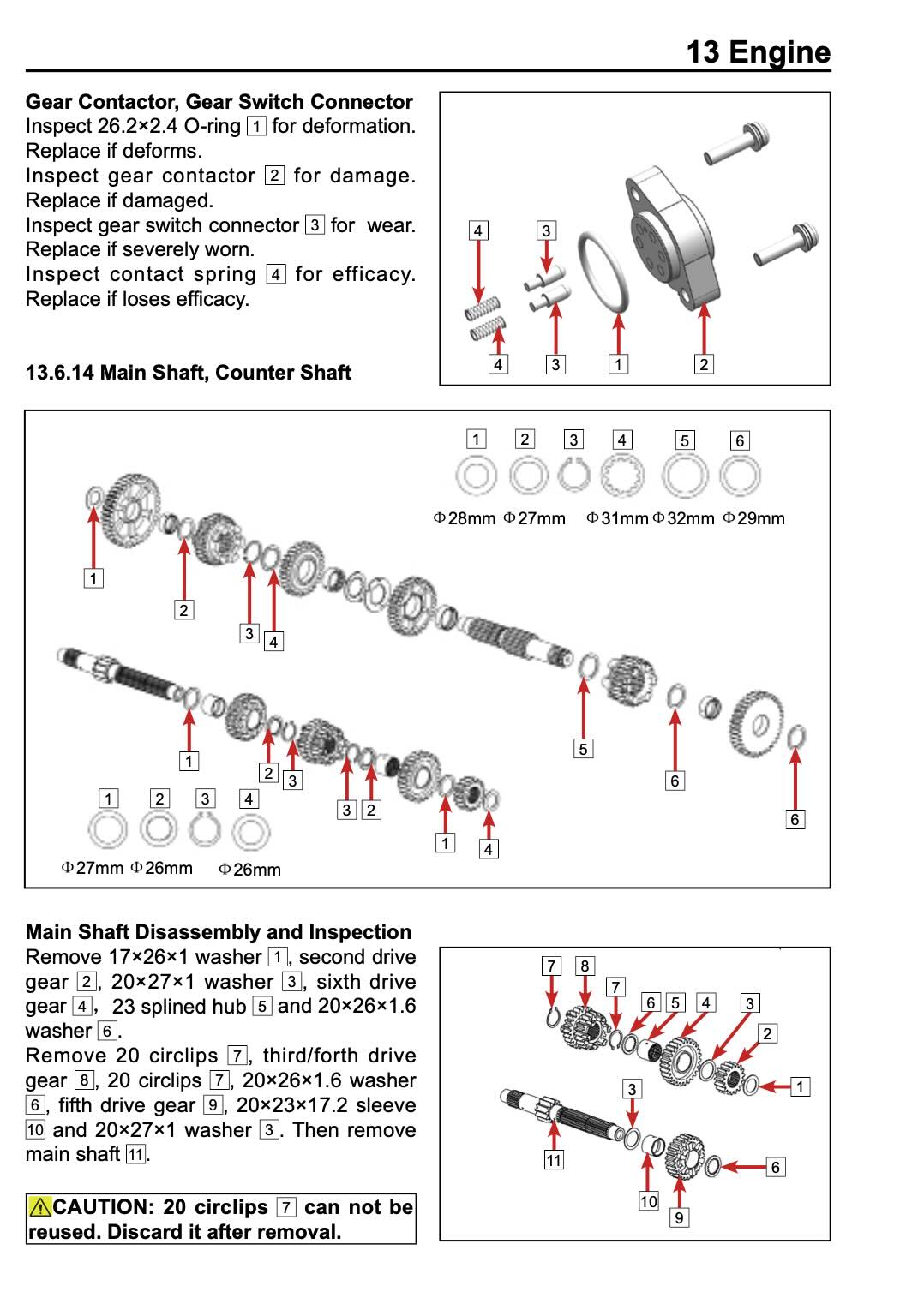

  • Schematic technical diagram for a Engine main shaft and counter shaft disassembly, showing labeled parts with arrows, dimensions, and removal instructions on a white background.
1 4

Dr. E Manuals

CFMoto 300SR 2024 Onwards Service Manual

CFMoto 300SR 2024 Onwards Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2024 Onwards CFMoto 300SR 300 SR Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 251 pages in English Language, it is the only manual you will require to maintain, repair and service your 2024 Onwards CFMoto 300SR 300 SR.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: general information, maintenance information, technical information, seat, body covering parts, fuel tank, lights dashboard and switches, electrical system, cooling system, muffler, wheels and brake system, shock absorbers and rear fork, engine assembly, handlebar and triple clamps

Suits Models from 2024 Onwards:

  • CF300-5
  • CF300-5B
  • CF300-5F
  • CF300-5BF

    If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

    View full details

    300SR (2024-Onwards): "SR Short for Sport Racing" — CFMoto's Entry-Level Track-Day Single

    CFMoto's own confirmed product description frames the bike's genuine positioning directly: "an attractive and sophisticated race-inspired motorcycle with enviable performance. As a competitive model in the entry-level sport racing bike segment, it serves as a loyal companion for both the racetrack" and everyday street riding.

    Power comes from a 298cc liquid-cooled single-cylinder engine, DOHC with 4 valves, a 78mm x 62.4mm bore and stroke, fed by electronic fuel injection, delivering a claimed 28-30 hp at 8,750-10,000 rpm (figures vary slightly by source and market tune) and roughly 25-27 Nm (18.4-19.9 lb-ft) of torque at 6,500-7,000 rpm through a 6-speed manual transmission with a slipper clutch and chain final drive, reaching a genuine 139 km/h (86.4 mph) top speed.

    CFMoto's own confirmed chassis description highlights the genuine engineering priorities: "a lightweight trellis frame design for excellent handling and agility." Suspension consists of a 37mm upside-down telescopic fork with hydraulic damping offering 110mm of travel, paired with a central monoshock delivering shorter, sport-tuned rear travel. Braking uses a single 292mm front disc with a 4-piston caliper and a 220mm floating-caliper rear disc with a single piston, backed by standard ABS, riding on 17-inch aluminum alloy wheels wrapped in 110/70-17 front and 140/60-17 rear tires.

    Confirmed dimensions list a 2,010mm length, 750mm width, 1,080-1,100mm height, 1,360mm wheelbase, a genuinely accessible 780mm (30.7-inch) seat height, a 12-litre fuel tank, and a curb weight of 155kg (341.7 lbs). A related 300SR S trim swaps the standard swingarm for a single-sided unit. 2024 US pricing was $4,599, offered in Nebula Black and Nebula White, with T-Box and CFMoto RIDE App connectivity available.

    This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 300SR running the way it was built to.
