Can-Am Outlander 650 850 1000R 2020-2022 Service Manual

A genuine ATV.com-collected owner review confirms exactly what makes this platform's entry-level 650 configuration a real crowd-pleaser: "I originally set out to buy an Outlander XT-P 850, thinking since I am a big guy, I needed at least that. I 'settled' on the 650 and I have no regrets WHATSOEVER... MAN does this thing have serious power and I absolutely love this thing. I'm glad I started with this 650, because if I feel like I need additional power and want to upgrade in a few years, I will appreciate the step up."

Power across this family spans three genuine Rotax V-twin displacements: 62 hp on the 650, 78 hp on the 850, and 91 hp on the range-topping 1000R, every configuration running Intelligent Throttle Control (iTC) with selectable riding modes. Can-Am's own confirmed 2021 XT-trim spec sheet lists Estimated dry weight scaling with engine size — 749 lb (650), 800 lb (850), and 826 lb (1000R) — on a shared chassis measuring 86 x 48 x 49.5 inches with a 51-inch wheelbase, 11 inches of ground clearance, and a 34.5-inch seat height.

Can-Am's own confirmed spec sheet lists standard equipment shared identically across the whole trim regardless of engine size: a 4.5-inch digital display showing speedometer, tachometer, odometer, trip and hour meters, gear position, 4x4 indicator, temperature, engine warning lights, fuel gauge, and clock, an RF Digitally Encoded Security System (D.E.S.S.), and 230W of lighting from twin 60W projectors plus dual 55W reflectors. Towing capacity is rated at 1,650 lbs across the range, with a 5.4-gallon fuel tank and 21.4-litre rear storage compartment.

ATV Rider's own confirmed 2022 buyer's guide flags the genuine trim breadth Can-Am offered across this range that year: base, XT, XT-P (adding wider FOX 1.5 Podium QS3 suspension and a Can-Am HD winch), and a Mossy Oak Break-Up Country Hunting Edition running 26-inch Carlisle ACT HD 6-ply tires — all sharing the identical fundamental Rotax V-twin and driveline architecture across whichever displacement the buyer selected. This configuration ran before Can-Am's 2025 update brought DOHC heads, pDrive clutches, and a bump to 999cc/101hp on the 1000R.

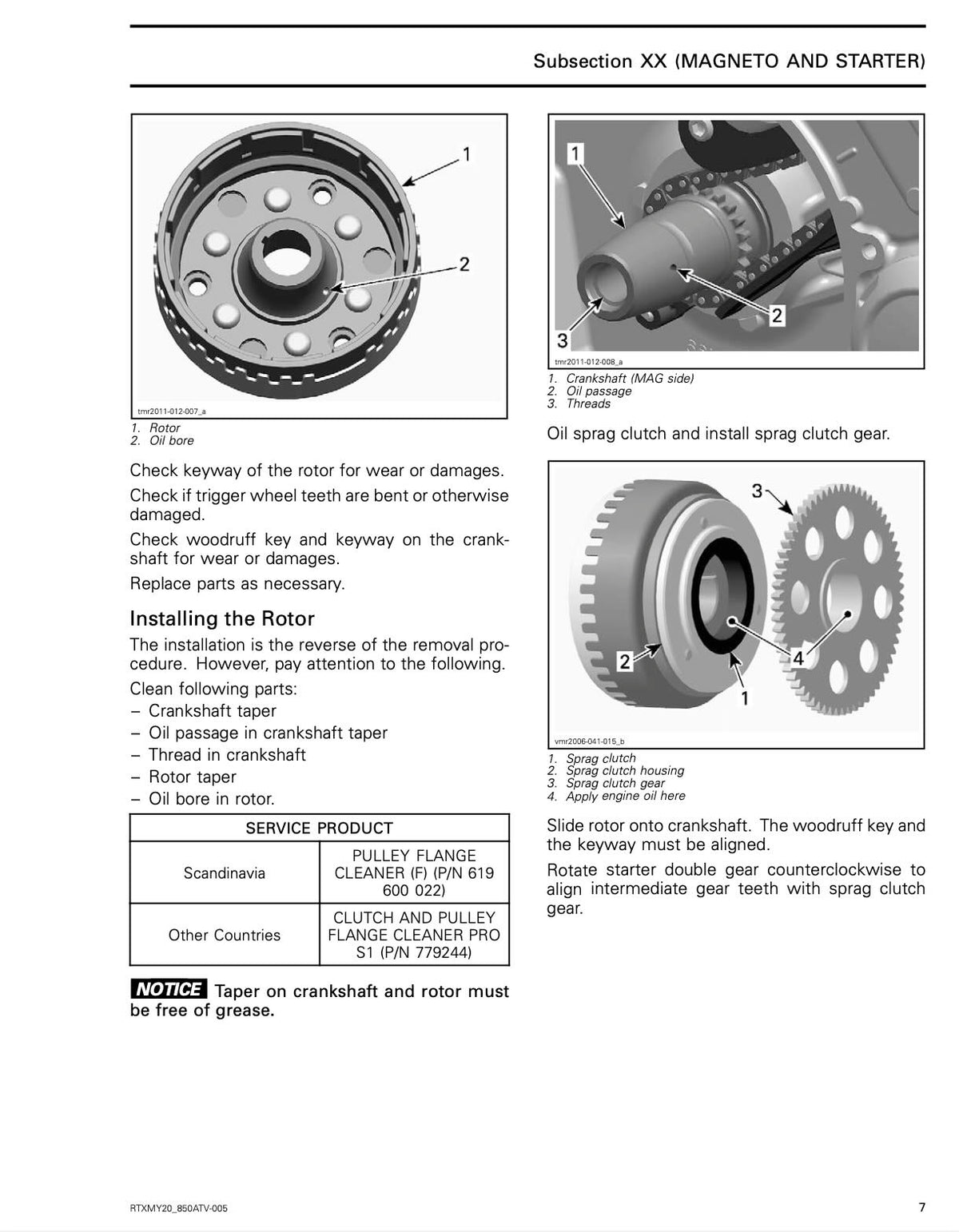

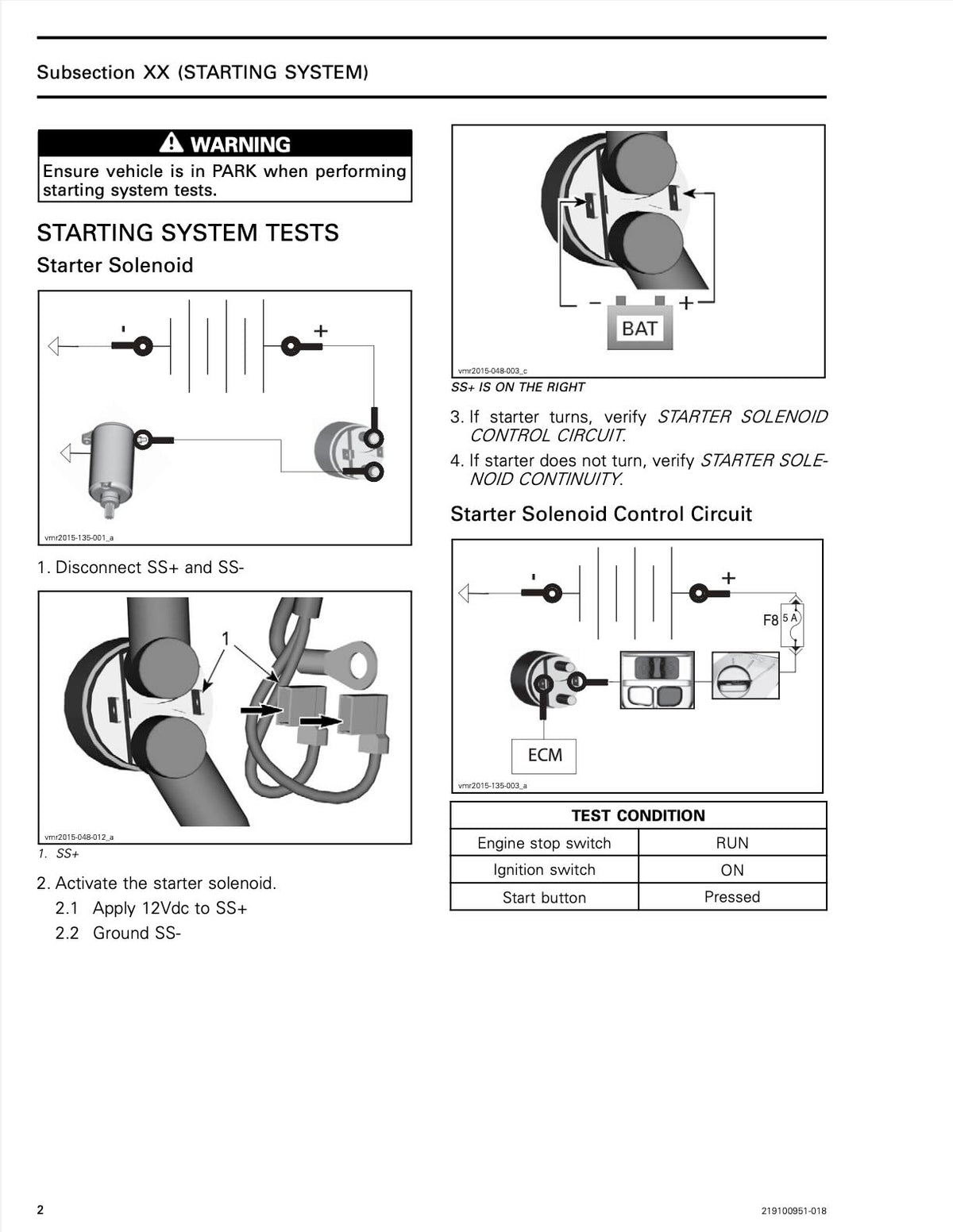

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2020-2022 Outlander 650/850/1000R running the way it was built to.
