Arctic Cat Wildcat XX 2022-2026 Service Manual

ATV Illustrated's own review confirms the genuine gap this bike fills in a thinned-out lineup: "there aren't many models in the 2023 'Cat lineup, but what they offer is definitely worth trying. We recently had seat time in the Wildcat XX, the only performance Side x Side 'Cat offers. Our thought during the test ride: We sure wish there were more of these!" That same review is candid about the real backstory: "sales of all categories of Side x Sides have increased geometrically for more than a decade. Unfortunately for Arctic Cat dealers, fans, and the company itself, they've been on the sidelines for approximately half that time, with a lineup that was severely whittled down after the Textron takeover."

Power comes from a Yamaha-sourced 998cc inline-three, DOHC with 4 valves, liquid-cooled, fed by EFI, delivering a claimed 130 hp — genuinely no turbo, which ATV Illustrated's own testing confirmed is no real handicap: "it does not feature a turbo but we don't miss it." That same review confirms genuine race-car-derived chassis engineering: "High Strength Steel chassis built for performance. The chassis is strong but also light, and it bolts together in three sections, front, middle, and rear. The roll cage is built like an aftermarket cage from the factory," with the engine isolated from the chassis by a rubber mounting system specifically to protect it from bottom-out impacts.

Coyne Powersports' own confirmed 2024 spec sheet details the drivetrain: new, lighter-weight Drive and Driven clutches with a compact idler design, plus Arctic Cat's ADAPT system maintaining constant belt tension across the rev range for minimized wear and longer belt life, backed by dual CVT air intakes to keep the belt cool. The range-topping SE/LTD trims run FOX 2.5 Podium QS3 shocks with bottom-out control and a lower low-gear transaxle ratio for genuine off-road-racing-inspired suspension geometry, riding on 30-inch Behemoth tires and 15-inch wheels for 14 inches of ground clearance.

This platform launched in 2022 and has carried this same fundamental 998cc/130hp Yamaha engine and chassis architecture forward with trim and colorway expansion (base, SE, and LTD/Black Hills Edition) across every model year since.

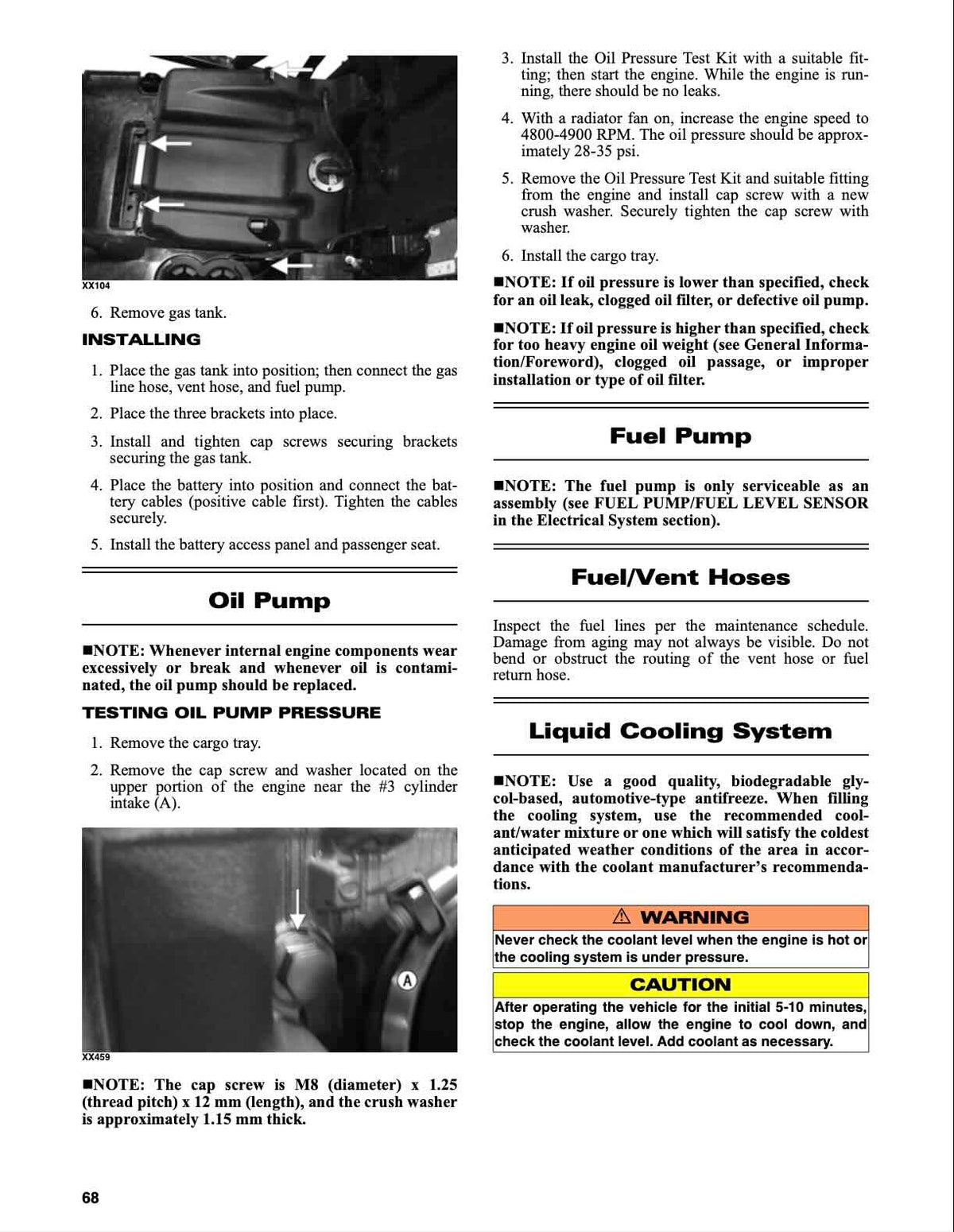

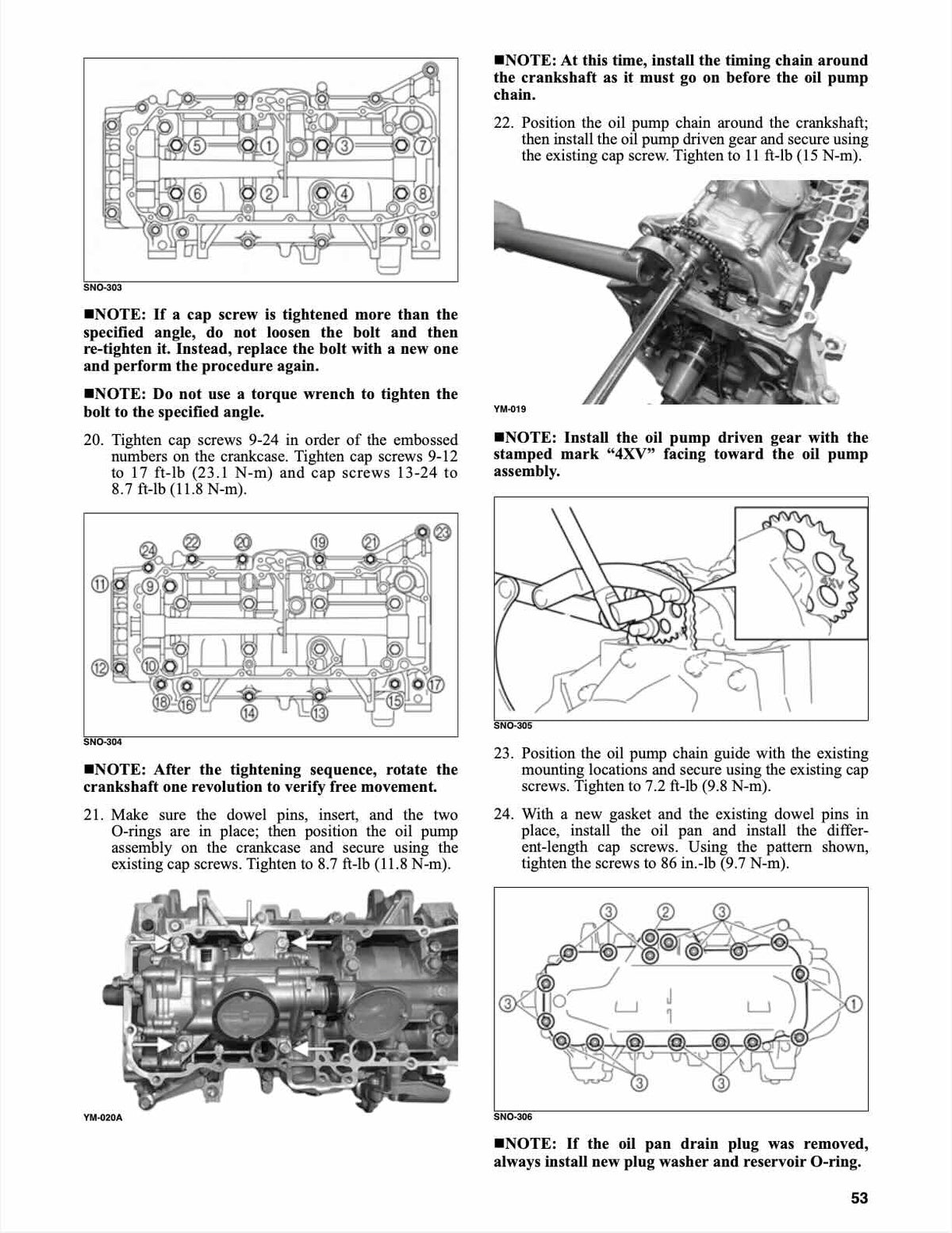

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2022-2026 Wildcat XX running the way it was built to.
