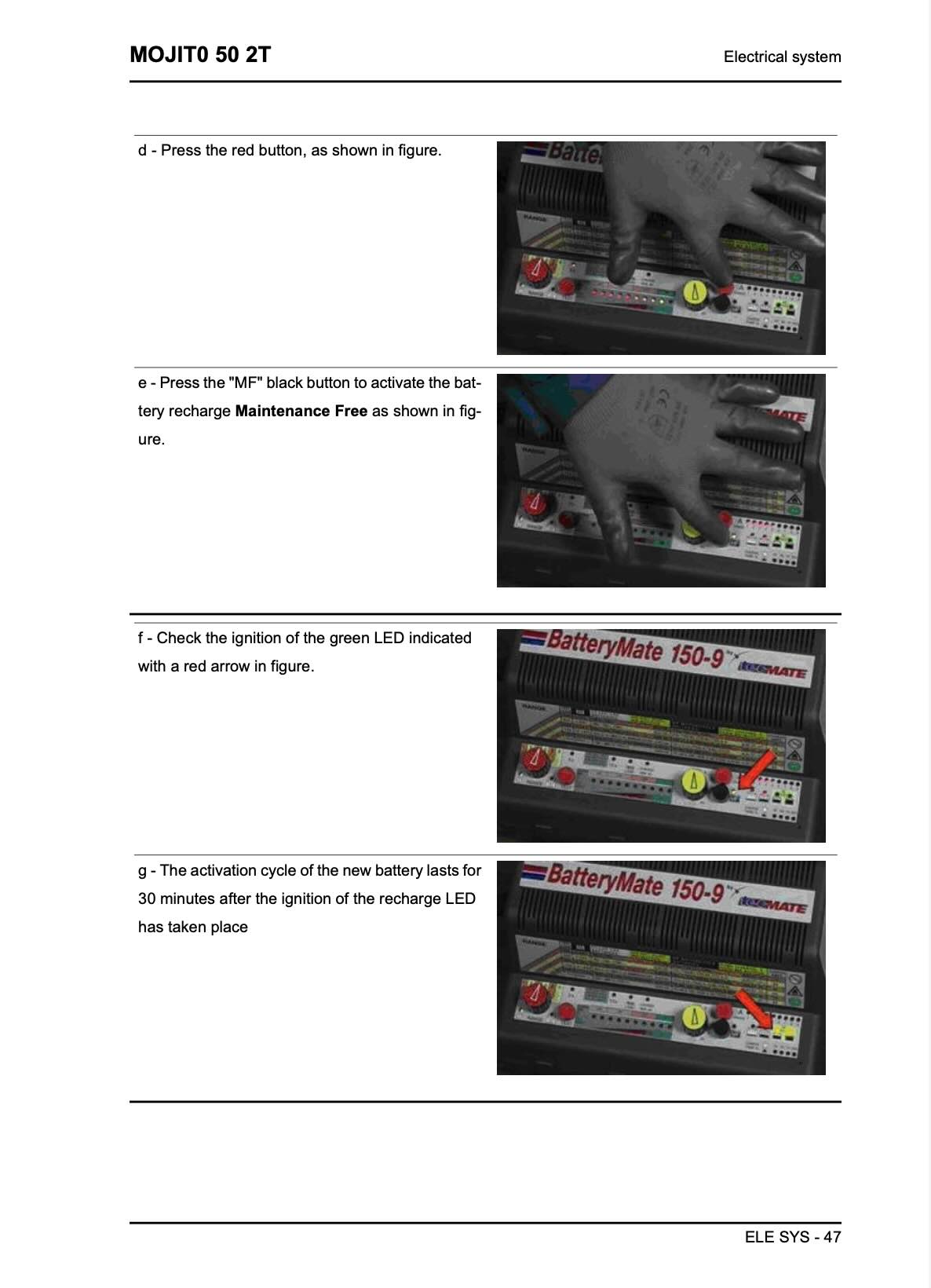

  • Aprilia Mojito 50 2T service manual electrical system page with BatteryMate 150-9 battery charger procedures showing red button activation, maintenance-free battery recharge setup, green LED ignition indicator verification with red arrow marking, and 30-minute activation cycle completion

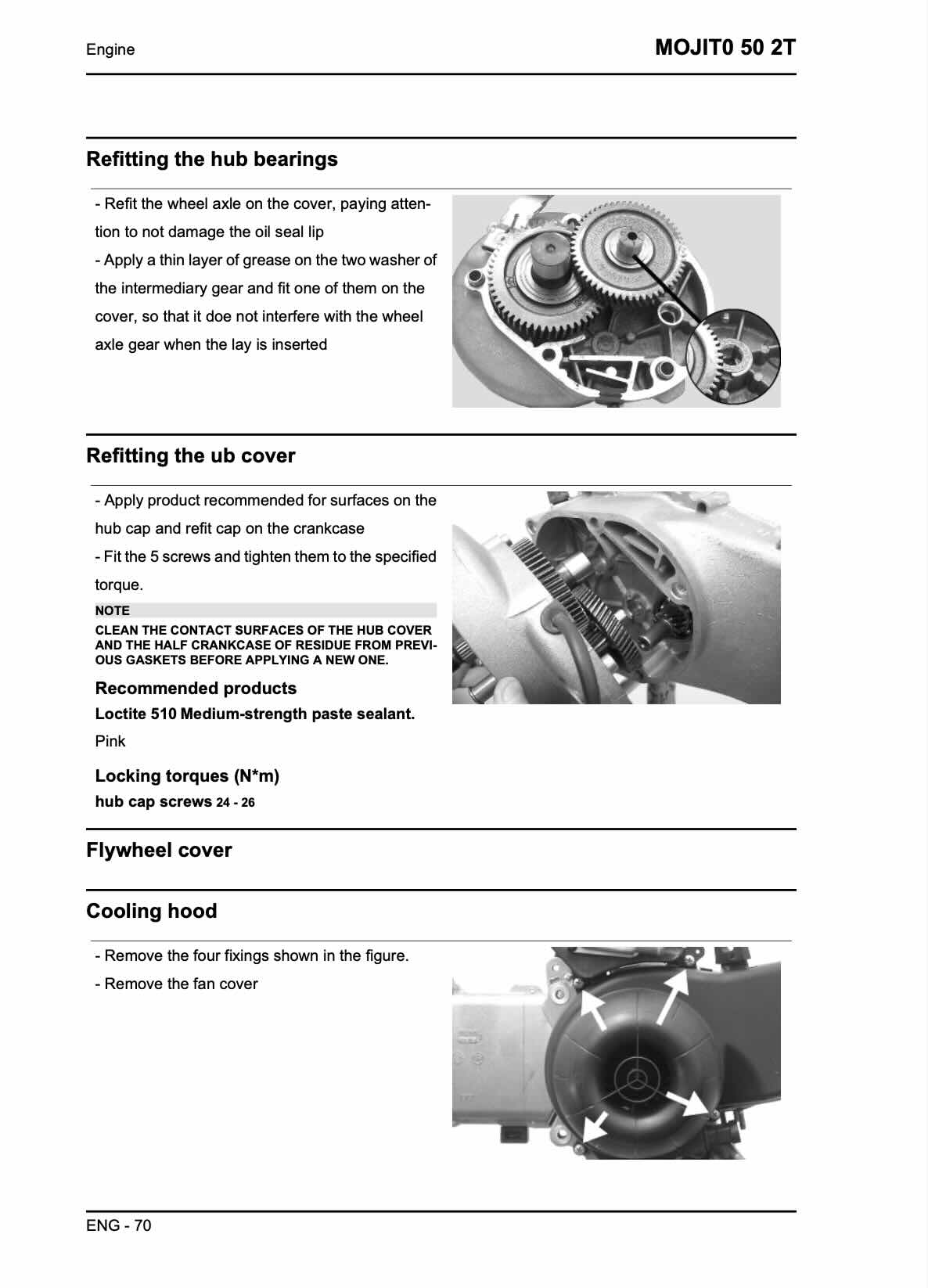

  • Aprilia Mojito 50 2T service manual engine page with hub bearing refitting procedures showing wheel axle installation with oil seal lip protection, intermediary gear washer greasing, hub cover refitting with Loctite 510 medium-strength paste sealant, hub cap screw torque 24-26 N·m, and cooling hood removal showing four fixings and fan cover disassembly
1 4

Dr. E Manuals

Aprilia Mojito 50 2T 2008-2012 Service Manual

Aprilia Mojito 50 2T 2008-2012 Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2008-2012 Aprilia Mojito 50 2T Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 110 pages in English Language, it is the only manual you will require to maintain, repair and service your 2008-2012 Aprilia Mojito 50 2T.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: pre-delivery, technical data, tooling, maintenance, electrical system, engine from vehicle, engine, suspensions, braking system, chassis

Suits Models from 2008, 2009, 2010, 2011, 2012

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Mojito 50 2T (2008-onward in Europe): Aprilia's Retro-Styled 50cc Two-Stroke Scooter

Aprilia launched the Mojito in 2004 as a retro scooter line: a Retro 50, a Custom 50 and larger 150cc versions. It leans on chrome, two-tone paint and a classic shape. The 50 two-stroke has a reputation for pep, and an unrestricted example is capable of about 45-50 mph. Colours on the 2008 Custom 50 were Cambridge White, Aprilia Black and Matt Black.

Power comes from a 49.4cc single-cylinder air-cooled two-stroke engine, with a 40.0mm x 39.3mm bore and stroke and a 10.3:1 compression ratio (the 2004-2005 engine used a 41.0mm x 37.4mm bore and stroke and an 11.3:1 ratio). It is carbureted, with electronic ignition and separate oil lubrication, so there's no petrol and oil pre-mix. Drive is an automatic CVT with a centrifugal clutch and belt final drive.

The chassis is a steel frame with a fork and link-type front suspension (80mm of travel) and a hydraulic rear monoshock (75mm of travel). Brakes are a 190mm front disc and a 120mm rear drum. Tires are a 120/70-12 front and a 130/70-10 rear.

Confirmed figures list a 1,900mm length, a 720mm width, a 1,100mm height and a 770mm (30.3-inch) seat height. Wheelbase is about 1,301mm. Dry weight is about 90 kg (198 lbs). The tank holds 7.7 litres including a 2-litre reserve. Check the engine number, since the earlier and later Mojito 50 engines have different bores, strokes and compression, which affects pistons, cylinders and carburetor jetting.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep an Aprilia Mojito 50 2T running the way it was built to.
